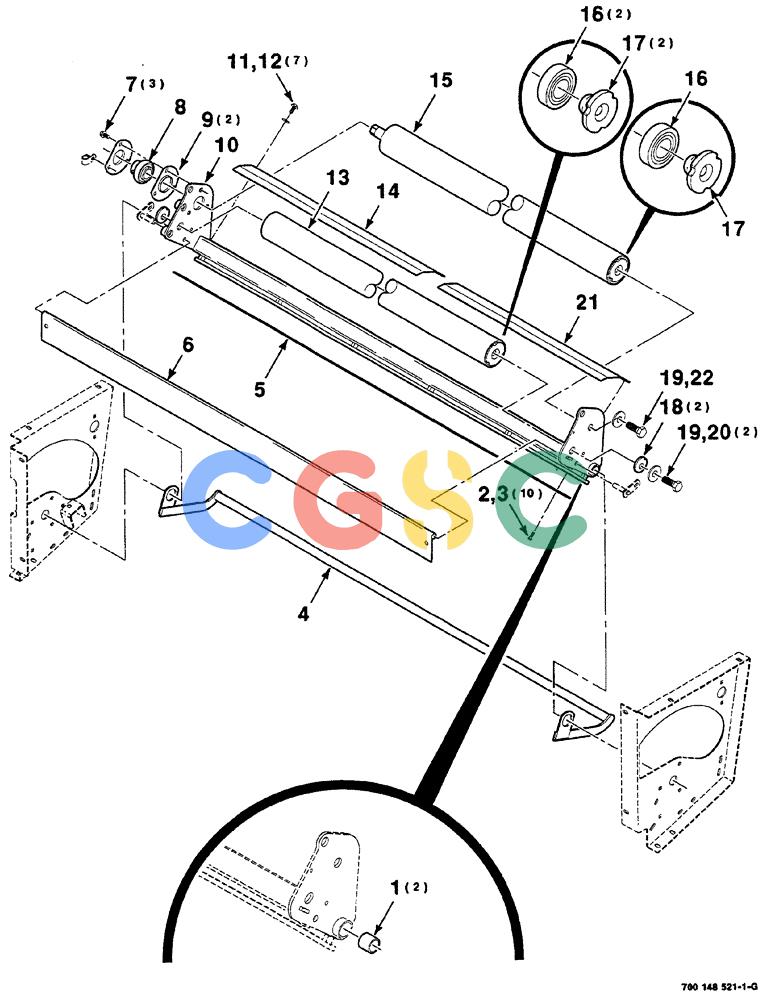

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (07-048) - MESH WRAP ROLLER ASSEMBLIES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
191 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7852254
|
[2] |
BRONZE BUSHING
|
HFI
|
| 2. |
51200165
|
[10] |
SCREW,Hex, 1/4"-20 x 1", G5
|
HFI
hex cap, 1/4-20 x 1
|
| 3. |
1703354
|
[10] |
NUT
|
IH
hex flange top lock, 1/4-20 GR/G
|
| 4. |
700148745
|
[1] |
ARM
|
HFI
WA
|
| 5. |
700717216
|
[1] |
KNIFE
|
HFI
|
| 6. |
700148741
|
[1] |
PANEL
|
HFI
|
| 7. |
409-7612
|
[3] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 8. |
50336
|
[1] |
SHIELD,3.75 mm ID x 62 mm OD x 16, 48.41 mm
|
NNA
spherical Superseded by part number: 619737R91, 619737R91, NLS
|
| 9. |
405696
|
[2] |
FLANGE
|
CAS
special
|
| 10. |
700148727
|
[1] |
FRAME
|
HFI
WA (Includes: Ref. 1)
|
| 11. |
281-34912
|
[7] |
SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
hex washer head thread cutting tapping, 3/8-16 x 3/4
|
| 12. |
496-81010
|
[7] |
WASHER
|
CAS
hardened wide plain, 3/8 Superseded by part number: 86625244
|
| 13. |
700148738
|
[1] |
ROLLER
|
HFI
ASSEMBLY plated (Includes: Ref. 16 and 17)
|
| 14. |
700152039
|
[1] |
SHIELD
|
HFI
right
|
| 15. |
700148739
|
[1] |
ROLLER
|
HFI
ASSEMBLY rubber (Includes: Ref. 16 and 17)
|
| 16. |
8050825
|
[3] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
cylindrical Superseded by part number: F82059
|
| 17. |
700100927
|
[3] |
HUB
|
L
|
| 18. |
700148648
|
[2] |
WASHER
|
HFI
adjustment
|
| 19. |
413-1232
|
[3] |
BOLT,Hex, 3/4" - 10 x 2", Gr 5
|
CAS
Superseded by part number: 88557
|
| 20. |
705566
|
[2] |
WASHER
|
IH
hardened plain, 3/4
|
| 21. |
700152038
|
[1] |
SHIELD
|
HFI
left
|
| 22. |
700711166
|
[1] |
WASHER
|
CAS
hardened wide plain, 3/4
|
