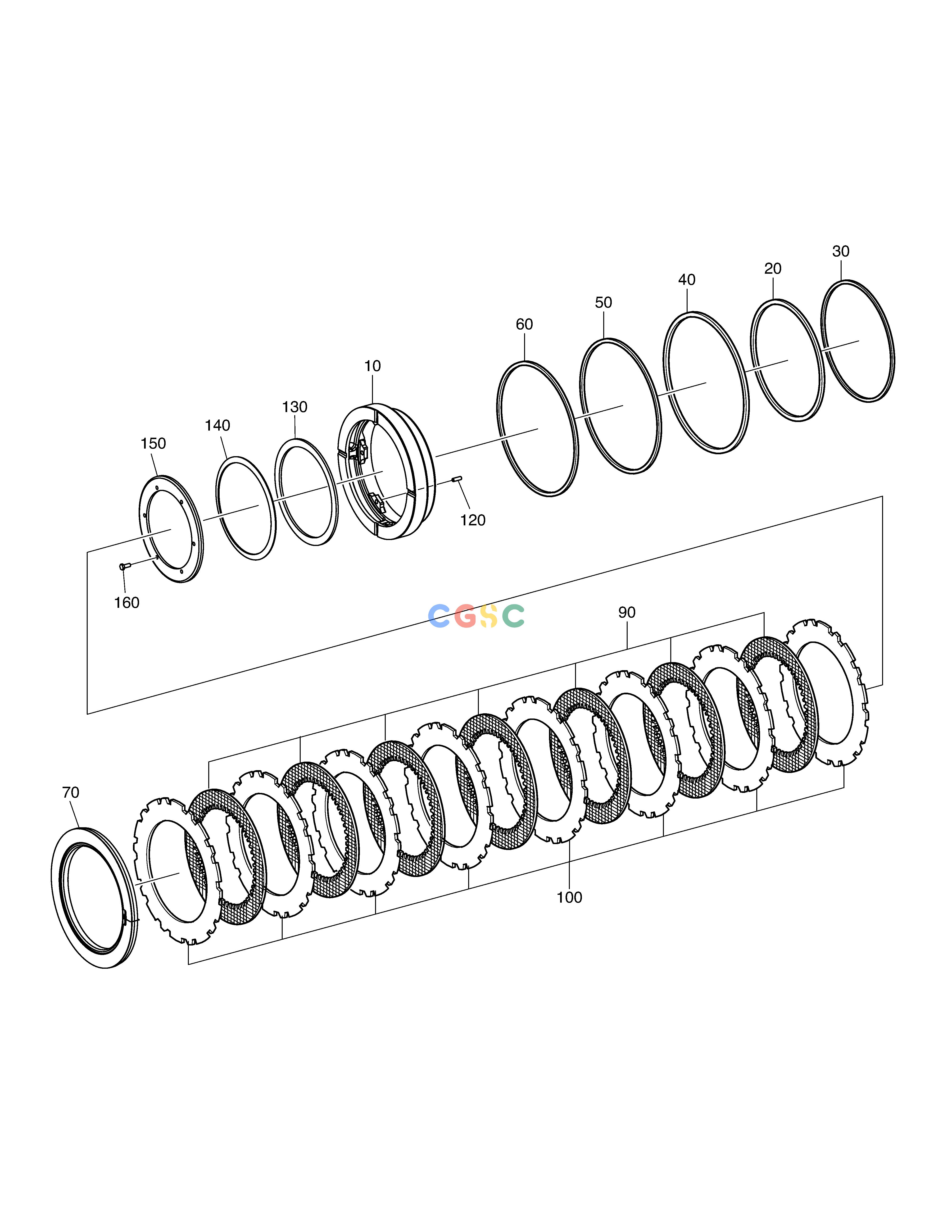

斗山零件查询BRAKE - REAR AXLE MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
301 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
130602-00754
|
[2] |
|
|
| 100. |
K9001888
|
[16] |
DISC;O.CLUTCH
|
|
| 120. |
K9006018
|
[12] |
. PIN
|
|
| 130. |
120808-00531
|
[2] |
WASHER
|
|
| 140. |
111601-00407
|
[2] |
SPRING,CUP
|
|
| 150. |
110508-08589
|
[2] |
|
|
| 160. |
120705-00671
|
[12] |
|
|
| 20. |
K9000243
|
[2] |
U-RING
|
|
| 30. |
K9000241
|
[2] |
RING;SUPPORT
|
|
| 40. |
K9000244
|
[2] |
U-RING
|
|
| 50. |
K9000242
|
[2] |
RING;SUPPORT
|
|
| 60. |
K9000168
|
[2] |
RING;GUIDE
|
|
| 70. |
110947-00205
|
[2] |
|
|
| 90. |
K9001887
|
[14] |
DISC;I.CLUTCH
|
|
