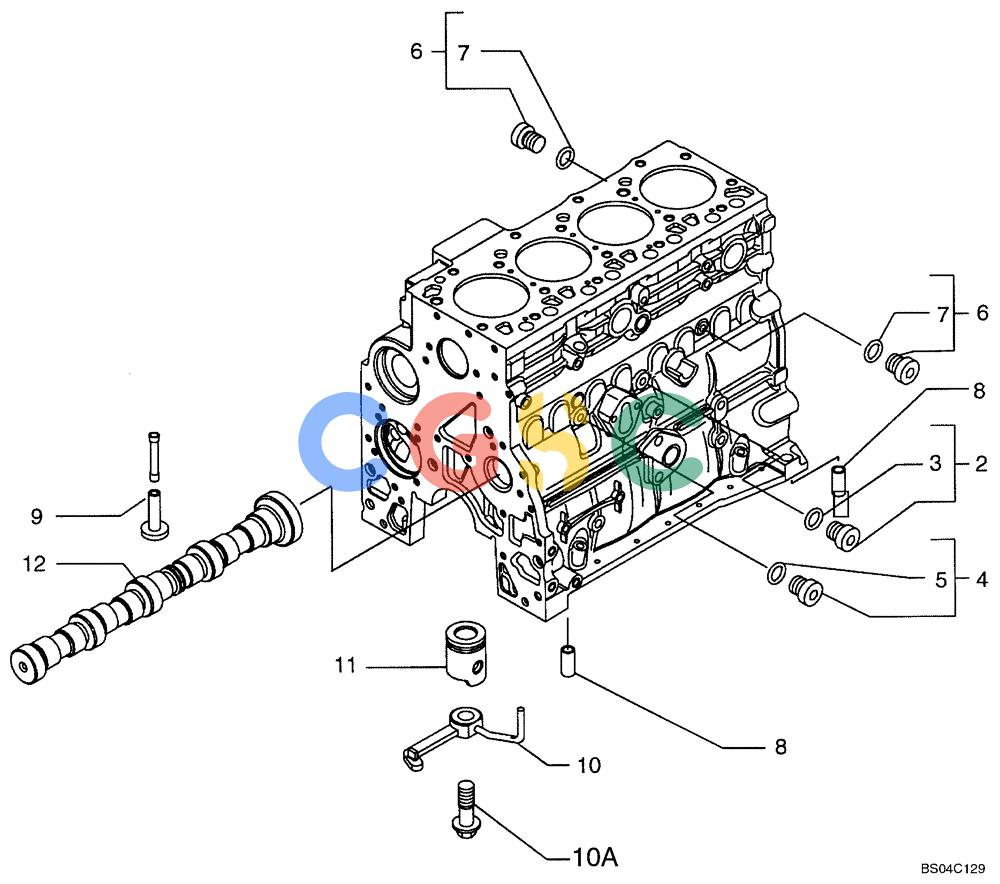

纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (02-11) - CYLINDER BLOCK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
293 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 4895605 | [1] | HEX SOCKET PLUG,M14 x 1.5 | TORIncl. Ref 3 |
| 3. | 4899115 | [1] | O-RING,2.2mm Thk x 11.3mm ID | TOR |
| 4. | 4899009 | [1] | PLUG,M10 x 1.5 | TORIncl. Ref 5 |
| 5. | 4899072 | [1] | O-RING,1.6mm Thk x 8.1mm ID | TOR |
| 6. | 4895392 | [2] | HEX SOCKET PLUG,M18 x 1.5 | TORIncl. Ref 7 |
| 7. | 4895393 | [1] | O-RING,2.2mm Thk x 15.3mm ID | TOR |
| 8. | 4895049 | [2] | DOWEL,M16.05 x 10 | TOR |
| 9. | J931623 | [8] | TAPPET | CAS |
| . . | 2852202 | [4] | PISTON COOLING NOZZLE | TORIncl. Ref 10, 10A Superseded by part number: 504054307 |
| 10. | 2852203 | [1] | PISTON COOLING NOZZLE | TOR Superseded by part number: 504054307 |
| 10A. | 4894218 | [1] | SCREW,Special, M8 x 20 | TOR |
