纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (02-14) - CYLINDER BLOCK - COVERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
238 次

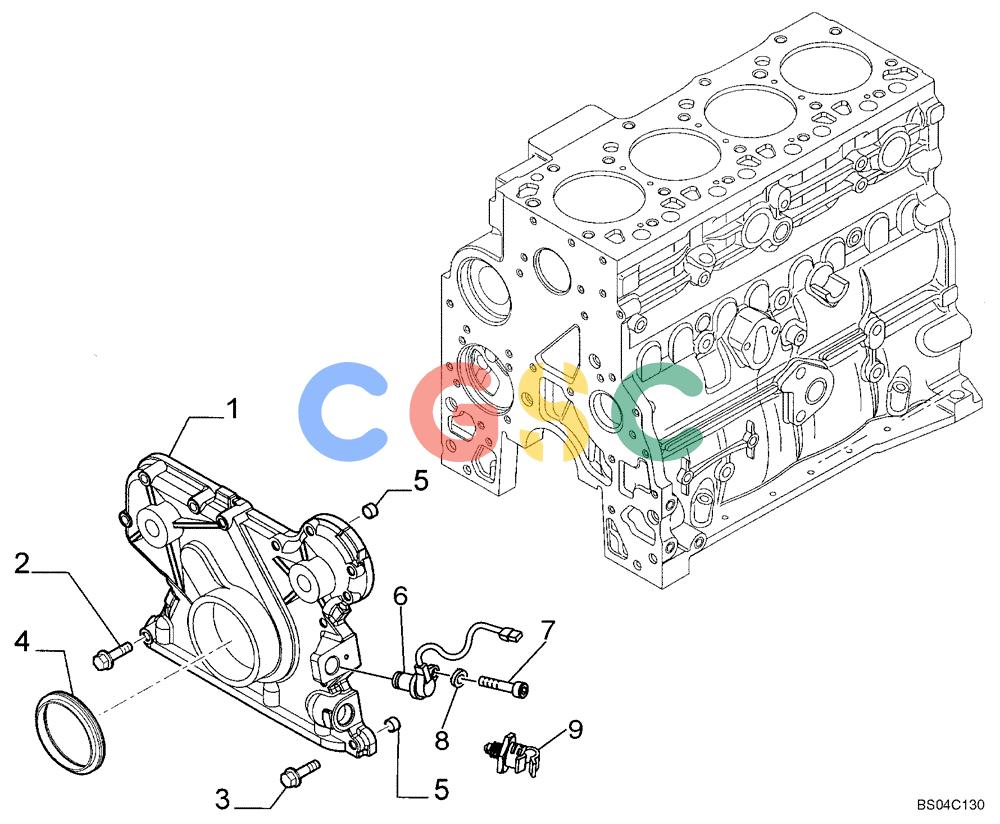

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4897024 | [1] | COVER | TORFront |
| 2. | 4899078 | [5] | SCREW,Hex Flg, M8 x 1.25 x 45 | TOR |
| 3. | 4899063 | [8] | SCREW,Hex Flg, M8 x 1.25 x 30 | TOR |
| 4. | 4890832 | [1] | OIL SEAL,M70 x 100 x 12.5/16 | TOR Superseded by part number: |
| 5. | 4891209 | [2] | DOWEL,M13 x 8 L | TOR |
| 6. | 4890189 | [1] | SENSOR | TOR |
| 7. | 4899082 | [1] | HEX SOC SCREW,M6 x 20mm | TOR |
| 8. | 2852776 | [1] | WASHER | TOR Superseded by part number: 4895421 |
| 9. | 2852486 | [1] | CABLE CLIP | TOR Superseded by part number: |
