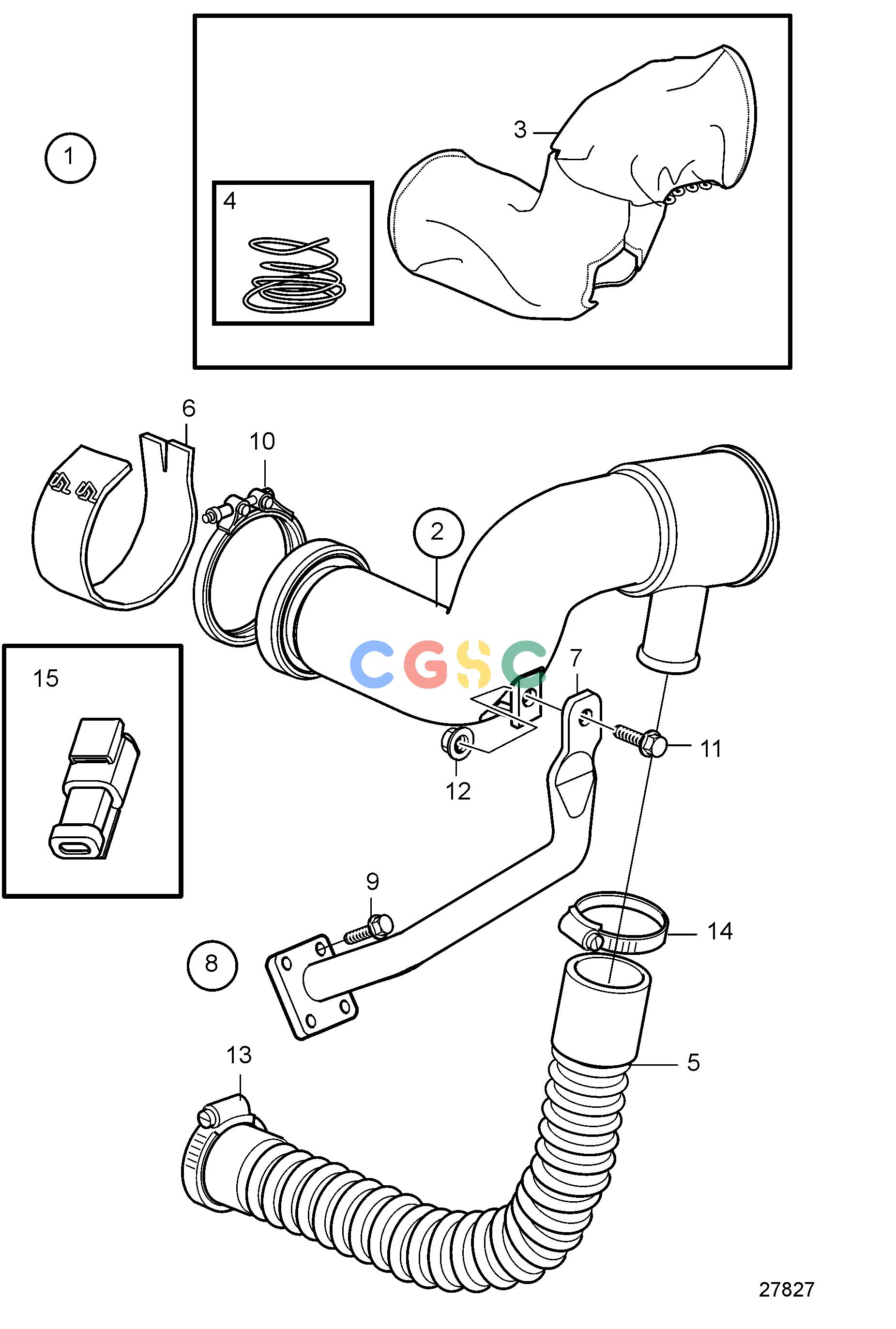

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-Intake and Exhaust SystemExhaust Riser Kit, V-driveEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1000 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3887981
|
[1] |
Exhaust riser
|
D6-435
|
| 1. |
3885295
|
[1] |
Exhaust riser
|
|
| 2. |
3884681
|
[1] |
Exhaust riser
|
|
| 3. |
3884679
|
[1] |
Insulation
|
|
| 4. |
941710
|
[1] |
Locking wire
|
|
| 5. |
3887979
|
[1] |
Hose
|
D6-435
|
| 5. |
3887281
|
[1] |
Hose
|
|
| 6. |
3817196
|
[1] |
Insulation
|
|
| 7. |
3884705
|
[1] |
Stay
|
|
| 8. |
|
|
|
|
| 9. |
965191
|
[4] |
Flange screw
|
|
| 10. |
3807212
|
[1] |
V-clamp
|
|
| 11. |
946441
|
[1] |
Flange screw
|
|
| 12. |
971095
|
[1] |
Flange nut
|
|
| 13. |
961671
|
[1] |
Hose clamp
|
|
| 14. |
961673
|
[1] |
Hose clamp
|
D6-435
|
| 14. |
961672
|
[1] |
Hose clamp
|
|
| 15. |
996345
|
[1] |
Housing
|
|
