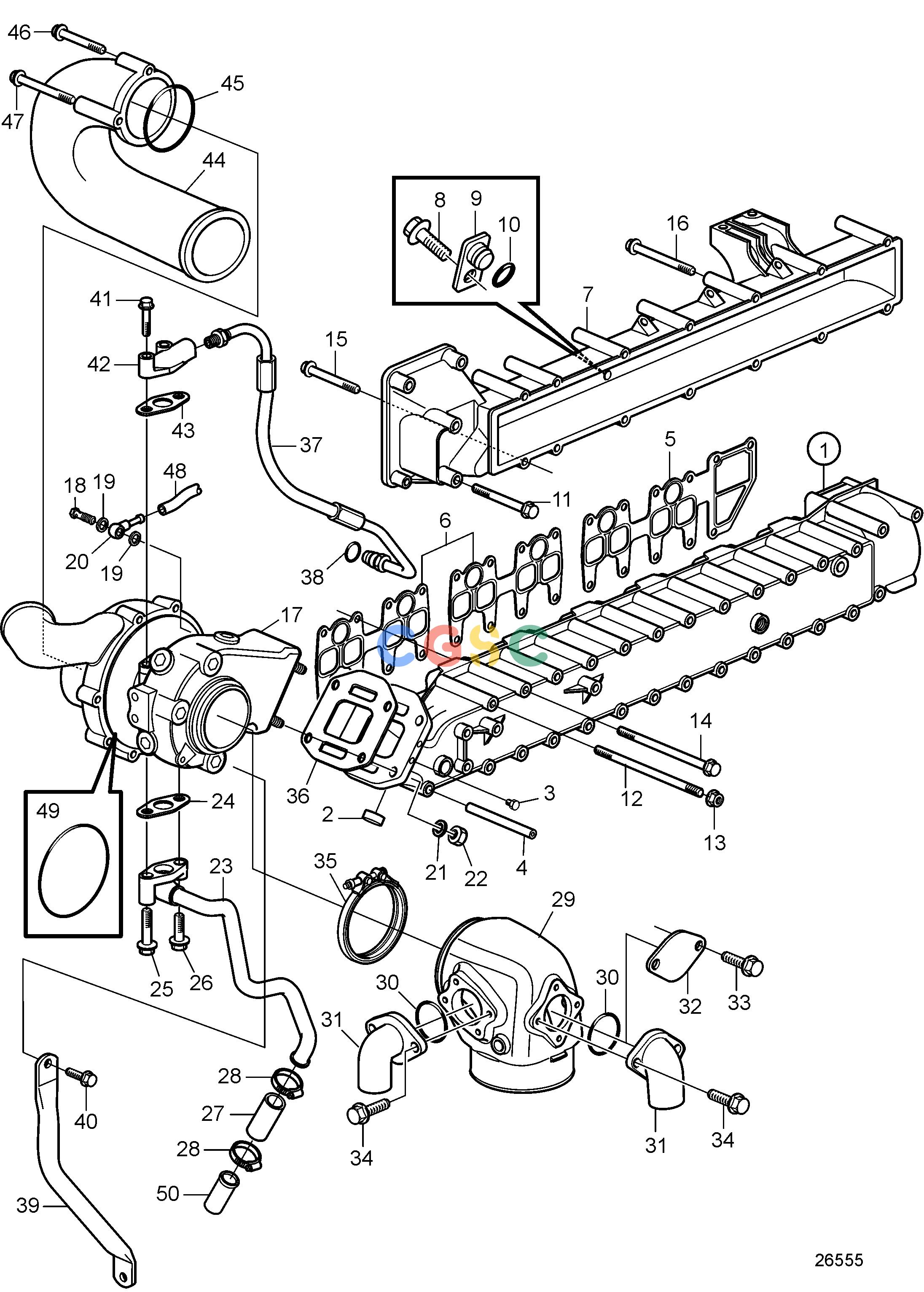

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-Intake and Exhaust SystemTurbo, Induction and Exhaust ManifoldEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
600 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3841203
|
[1] |
Exhaust manifold
|
|
| 2. |
8131707
|
[1] |
Cap plug
|
|
| 3. |
479979
|
[1] |
Plug
|
|
| 4. |
3583116
|
[1] |
Spring pin
|
|
| 5. |
3583336
|
[1] |
Gasket
|
|
| 6. |
3582725
|
[2] |
Gasket
|
|
| 7. |
21871927
|
[1] |
Inlet manifold
|
|
| 8. |
946501
|
[1] |
Flange screw
|
|
| 9. |
21851463
|
[1] |
Adapter
|
|
| 10. |
925053
|
[1] |
O-ring
|
|
| 11. |
947760
|
[1] |
Flange screw
|
|
| 12. |
948194
|
[6] |
Stud
|
|
| 13. |
945408
|
[6] |
Flange nut
|
|
| 14. |
968999
|
[22] |
Flange screw
|
L=130mm
|
| 15. |
965184
|
[13] |
Flange screw
|
L=100mm
|
| 16. |
965182
|
[1] |
Flange screw
|
L=80mm
|
| 17. |
3802152
|
[1] |
Turbocharger
|
|
| 17. |
|
|
|
|
| 18. |
969299
|
[1] |
Hollow screw
|
|
| 19. |
11994
|
[2] |
Gasket
|
|
| 20. |
858750
|
[1] |
Banjo nipple
|
|
| 21. |
955895
|
[4] |
Washer
|
|
| 22. |
991657
|
[4] |
Hexagon nut
|
|
| 23. |
3582967
|
[1] |
Oil return pipe
|
|
| 24. |
860105
|
[1] |
Gasket
|
|
| 25. |
948217
|
[1] |
Flange screw
|
|
| 26. |
945444
|
[1] |
Flange screw
|
|
| 27. |
21882797
|
[1] |
Hose
|
|
| 28. |
994559
|
[2] |
Hose clamp
|
|
| 29. |
21700014
|
[1] |
Exhaust pipe elbow
|
|
| 30. |
969415
|
[2] |
O-ring
|
|
| 31. |
21450768
|
[2] |
Connector
|
|
| 32. |
3584006
|
[1] |
Cover
|
|
| 33. |
947542
|
[2] |
Flange screw
|
|
| 34. |
948356
|
[4] |
Flange screw
|
|
| 35. |
21325767
|
[1] |
V-clamp
|
|
| 36. |
21452196
|
[1] |
Gasket
|
|
| 37. |
40005392
|
[1] |
Oil pressure pipe
|
|
| 38. |
976971
|
[1] |
O-ring
|
|
| 39. |
3583094
|
[1] |
Support
|
|
| 40. |
946471
|
[1] |
Flange screw
|
|
| 41. |
947760
|
[2] |
Flange screw
|
|
| 42. |
8192268
|
[1] |
Flange
|
|
| 43. |
420641
|
[1] |
Plane gasket
|
|
| 44. |
3812945
|
[1] |
Connector
|
|
| 45. |
949841
|
[1] |
O-ring
|
|
| 46. |
965180
|
[1] |
Flange screw
|
|
| 47. |
968842
|
[2] |
Flange screw
|
|
| 48. |
942700
|
[1] |
Hose
|
|
| 49. |
22916981
|
[1] |
O-ring
|
|
| 50. |
3583622
|
[1] |
Hose connection
|
|
