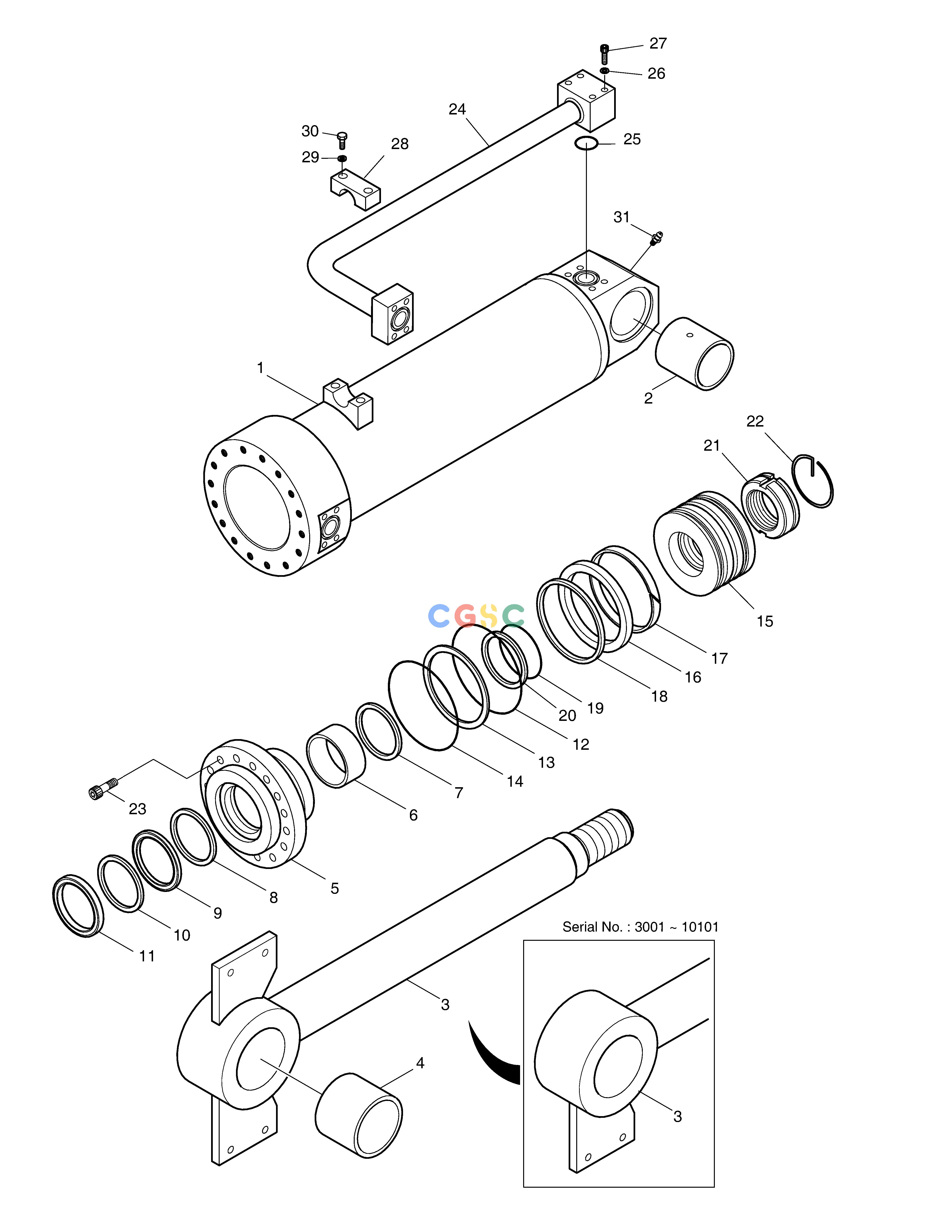

斗山零件查询BUCKET CYLINDER MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
561 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
440-00135BKT
|
[1] |
SEAL KIT
|
|
| -. |
440-00135C
|
[1] |
BUCKET CYLINDER
|
440-00135B
|
| -. |
440-00135B
|
[1] |
BUCKET CYLINDER
|
|
| 1. |
1.441-00055
|
[1] |
|
|
| 10. |
115-00090
|
[1] |
RING;RETAINING
|
|
| 11. |
1.180-00489
|
[1] |
WIPER;DUST
|
|
| 12. |
S8011901
|
[1] |
O-RING
|
|
| 13. |
1.180-00300
|
[1] |
RING;BACK UP
|
|
| 14. |
S8012001
|
[1] |
O-RING
|
|
| 15. |
1.409-00048
|
[1] |
|
|
| 16. |
1.180-00556
|
[1] |
SEAL;SLIPPER
|
|
| 17. |
1.180-00400
|
[1] |
RING;WEAR
|
|
| 18. |
1.180-00364
|
[1] |
RING;SLYD
|
|
| 19. |
S8011051
|
[1] |
O-RING
|
|
| 2. |
1.110-00008
|
[1] |
|
|
| 20. |
S8091050
|
[2] |
|
|
| 21. |
1.121-00058
|
[1] |
|
|
| 22. |
1.115-00240
|
[1] |
|
|
| 23. |
S2224971
|
[16] |
BOLT;SOCKET
|
|
| 24. |
1.140-00045
|
[1] |
|
|
| 25. |
S8000341
|
[1] |
O-RING
|
|
| 26. |
S5100603
|
[4] |
WASHER
|
|
| 27. |
S2213261
|
[4] |
BOLT
|
|
| 28. |
1.124-00142
|
[1] |
CLAMP;PIPE
|
|
| 29. |
S5100603
|
[2] |
WASHER
|
|
| 3. |
60U468-3
|
[1] |
ROD ASS'Y
|
60U468-0
|
| 3. |
60U468-0
|
[1] |
ROD ASS'Y
|
|
| 30. |
S0558953
|
[2] |
BOLT
|
|
| 31. |
S6710032
|
[1] |
NIPPLE;GREASE
|
|
| 4. |
1.110-00115
|
[1] |
BUSH;STEEL
|
|
| 5. |
1.430-00099
|
[1] |
|
|
| 6. |
1.110-00080
|
[1] |
DU-BUSH
|
|
| 7. |
115-00092
|
[1] |
RING;RETAINING
|
|
| 8. |
1.180-00471
|
[1] |
SEAL;BUFFER
|
|
| 9. |
1.180-00198
|
[1] |
U-PACKING
|
|
