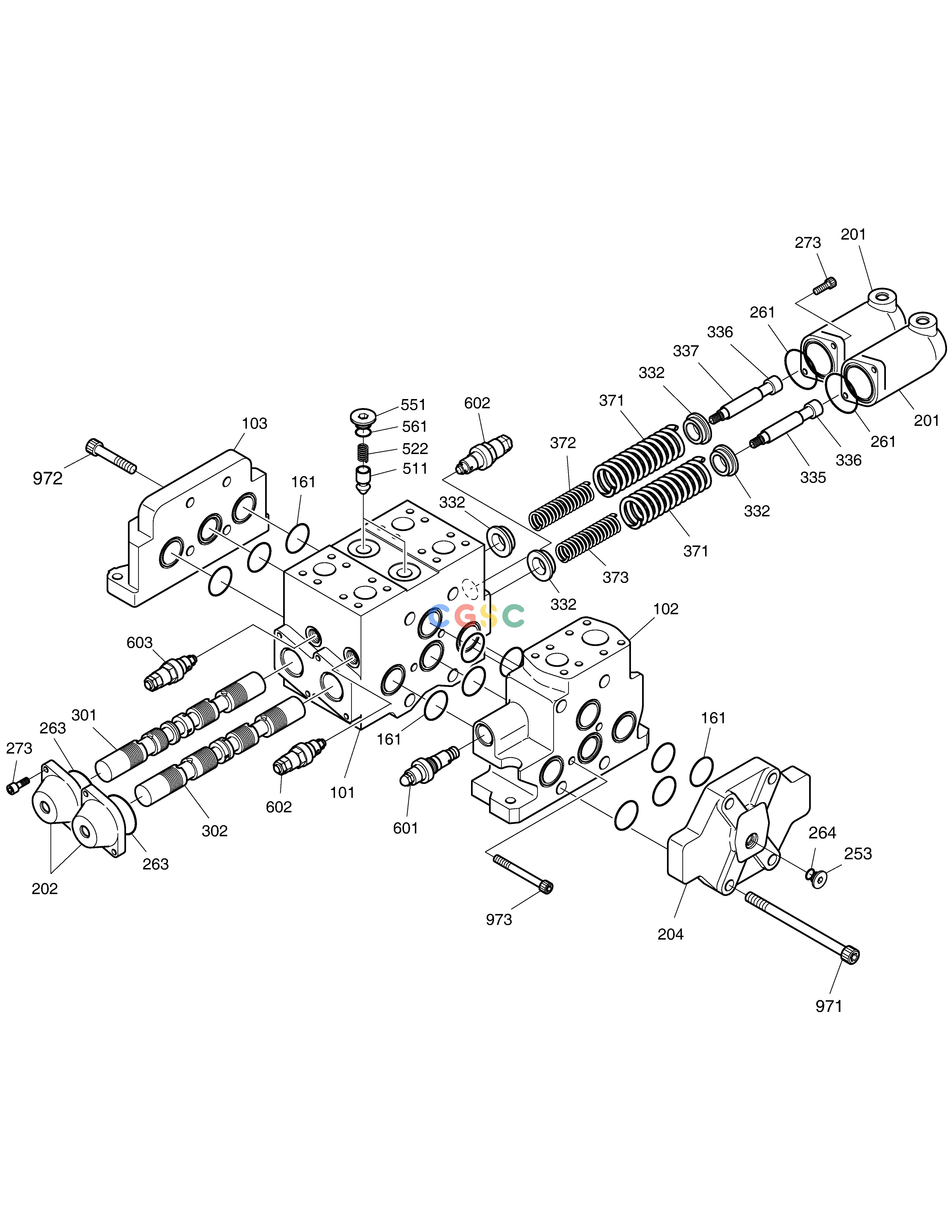

斗山零件查询CONTROL VALVE - 2SPOOL MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
901 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1007986
|
[1] |
CONTROL VALVE-2 SPOOL
|
|
| 101. |
NA01120
|
[1] |
|
|
| 102. |
K9001256
|
[1] |
SECTION;P END
|
|
| 103. |
K9001257
|
[1] |
COVER;END
|
|
| 161. |
S8000501
|
[11] |
O-RING
|
|
| 201. |
K9001258
|
[2] |
COVER;SPRING
|
|
| 202. |
K9001259
|
[2] |
COVER;SPRING
|
|
| 204. |
K9001260
|
[1] |
PLATE
|
|
| 253. |
2181-1890D2
|
[1] |
PLUG
|
|
| 261. |
S8010651
|
[2] |
O-RING
|
|
| 263. |
S8010551
|
[2] |
O-RING
|
|
| 264. |
S8000111
|
[1] |
O-RING
|
|
| 273. |
S2212061
|
[8] |
BOLT;SOCKET M10X1.5X25
|
|
| 301. |
NA01161
|
[1] |
. SPOOL
|
|
| 302. |
NA01161
|
[1] |
. SPOOL
|
|
| 332. |
K9001261
|
[4] |
SEAT
|
|
| 335. |
K9001262
|
[1] |
STOPPER
|
|
| 336. |
K9001263
|
[2] |
BOLT
|
|
| 337. |
K9001264
|
[1] |
STOPPER
|
|
| 371. |
K9001265
|
[1] |
SPRING
|
|
| 372. |
K9001266
|
[1] |
SPRING
|
|
| 373. |
K9001267
|
[1] |
SPRING
|
|
| 511. |
K9001268
|
[2] |
POPPET
|
|
| 522. |
K9001269
|
[2] |
SPRING
|
|
| 551. |
2181-1890D6
|
[2] |
PLUG
|
|
| 561. |
S8000291
|
[2] |
O-RING
|
|
| 601. |
K9001270
|
[1] |
MAIN RELIEF VALVE ASS'Y
|
|
| 602. |
K9001271
|
[2] |
OVER LOAD RELIEF V/V ASS'Y
|
|
| 603. |
K9001272
|
[1] |
OVER LOAD RELIEF V/V ASS'Y
|
|
| 971. |
S2226371
|
[4] |
SCREW
|
|
| 972. |
S2224871
|
[4] |
BOLT;LOCK
|
|
| 973. |
S2210561
|
[2] |
SCREW
|
|
