神钢零件查询(F4HFE6131 B003) - ENGINE 5801858658 IPU 280B TIER4 B (1/16-) (10.206.AG) - FUEL FILTER, COMPONENTS Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
224 次

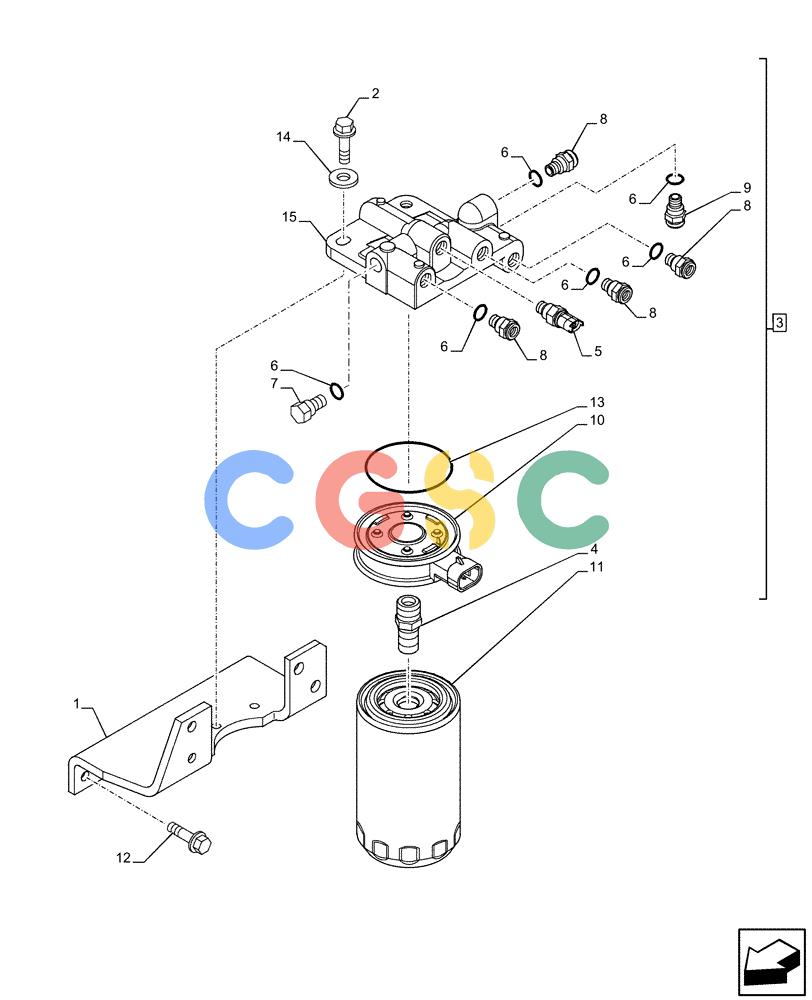

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NS | [1] | NOT SERVICED | BASSUPPORT |
| 2. | 2854566 | [2] | SCREW,Hex, M12 x 1.75 x 30mm | TOR Superseded by part number: 16588025 |
| 3. | 2854561 | [1] | HOUSING | TOR Superseded by part number: |
| 4. | 2854565 | [1] | BUSHING | TOR |
| 5. | 4897224 | [1] | SENSOR | TORTemperature |
| 6. | NS | [6] | NOT SERVICED | BASSealing Washer 12.2mm ID x 17mm OD x 1.5mm Thk |
| 7. | NS | [1] | NOT SERVICED | BASPlug |
| 8. | 2854563 | [4] | FITTING | TOR Superseded by part number: 504210082 |
| 9. | 2854564 | [1] | FITTING,M12 x 1.5 - 12 H9 | TOR |
| 10. | 4897838 | [1] | HEATER | TOR |
| 11. | 4897897 | [1] | FUEL FILTER | BHBCase Brand Superseded by part number: 87803197, 87803197, 87803200, 87803197, 87803200, 87803208, 87803197, 87803200, 87803208, 87803209 |
| 11. | 84412164 | [1] | FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns | FAR |
| 12. | NS | [4] | NOT SERVICED | BASScrew |
| 13. | 4898876 | [1] | O-RING,63.1mm ID x 3.53mm Width | TOR |
| 14. | NS | [2] | NOT SERVICED | BASWasher 8.15mm ID x 20mm OD x 3mm Thk |
| 15. | 2854562 | [1] | BRACKET | TOR Superseded by part number: 2855425 |
