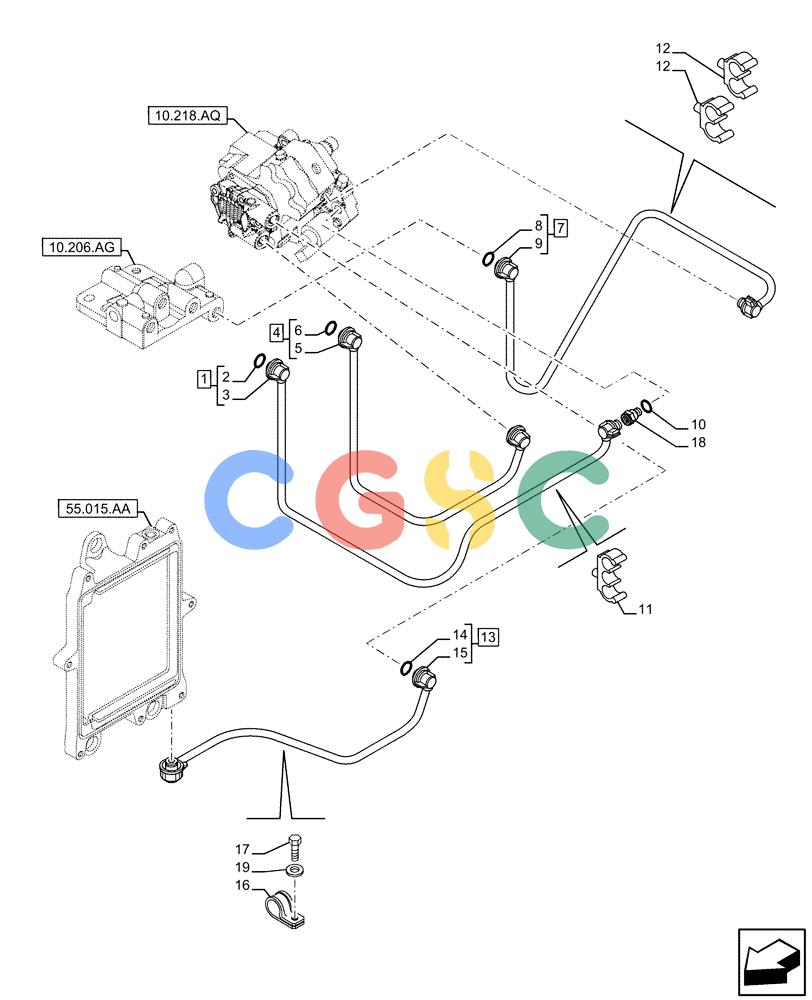

神钢零件查询(F4HFE6131 B003) - ENGINE 5801858658 IPU 280B TIER4 B (1/16-) (10.210.AF) - FUEL SUPPLY LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
742 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 4894095 | [2] | O-RING,2.5mm Thk x 8mm ID, 60 Duro | TOR |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 5. | 4894095 | [2] | O-RING,2.5mm Thk x 8mm ID, 60 Duro | TOR |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 8. | 4894095 | [2] | O-RING,2.5mm Thk x 8mm ID, 60 Duro | TOR |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 10. | 4890929 | [1] | O-RING,3mm Thk x 11mm ID | TOR |
| 14. | 4894095 | [2] | O-RING,2.5mm Thk x 8mm ID, 60 Duro | TOR |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONTube |
| 17. | 9804260 | [1] | BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8 | NH |
