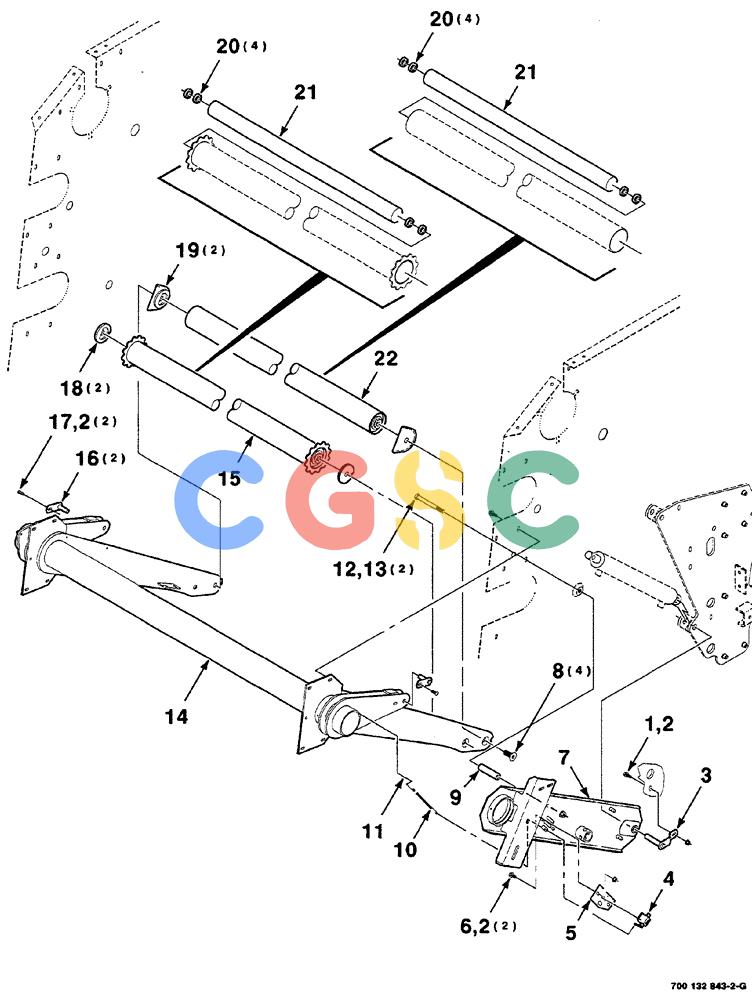

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (06-014) - BALE TENSIONING ROLLER ASSEMBLY (S.N. CFH0156399 AND LATER) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
408 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
121-226
|
[1] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 2. |
232-5316
|
[5] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 3. |
700132870
|
[1] |
SPECIAL PIN
|
HFI
WA
|
| 4. |
700707437
|
[1] |
COUNTER
|
CAS
BALE
|
| 5. |
700150222
|
[1] |
PLATE
|
HFI
|
| 6. |
409-7612
|
[2] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 7. |
700132879
|
[1] |
SUPPORT
|
HFI
WA lower, left
|
| 8. |
700707981
|
[4] |
SCREW,FLAT, 3/4" - 10 x 1-3/4"
|
L
hex socket flat countersunk head cap, 3/4-10 x 1-3/4
|
| 9. |
700132903
|
[1] |
SPACER
|
HFI
|
| 10. |
700716222
|
[1] |
SPRING
|
CAS
extension
|
| 11. |
432-824
|
[1] |
COTTER PIN,1/8" x 1 1/2"
|
CAS
Superseded by part number: 80708
|
| 12. |
413-880
|
[2] |
BOLT,Hex, 1/2" - 13 x 5", Gr 5
|
CAS
SCREW hex cap, 1/2-13 x 5 Superseded by part number: 87997
|
| 13. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
hex flange top lock, 1/2-13 GR/G Superseded by part number: 86521610
|
| 14. |
700132859
|
[1] |
ARM
|
HFI
WA lower
|
| 15. |
700150042
|
[1] |
ROLLER
|
HFI
ASSEMBLY (Includes: Ref. 20 & 21)
|
| 16. |
700132919
|
[2] |
SPECIAL PIN
|
HFI
WA
|
| 17. |
7884414
|
[2] |
CAPSCREW,Button Hd, 3/8" - 16 x 1", Gr 8
|
CAS
3/8-16 x 1 HSBHCS GR. 8 NP
|
| 18. |
700150040
|
[2] |
WASHER
|
HFI
WA special
|
| 19. |
700150036
|
[2] |
GUIDE
|
HFI
WA
|
| 20. |
8050825
|
[8] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
cylindrical Superseded by part number: F82059
|
| 21. |
700150048
|
[2] |
SHAFT
|
HFI
|
| 22. |
700150043
|
[1] |
ROLLER
|
HFI
ASSEMBLY (Includes: Ref. 20 & 21)
|
