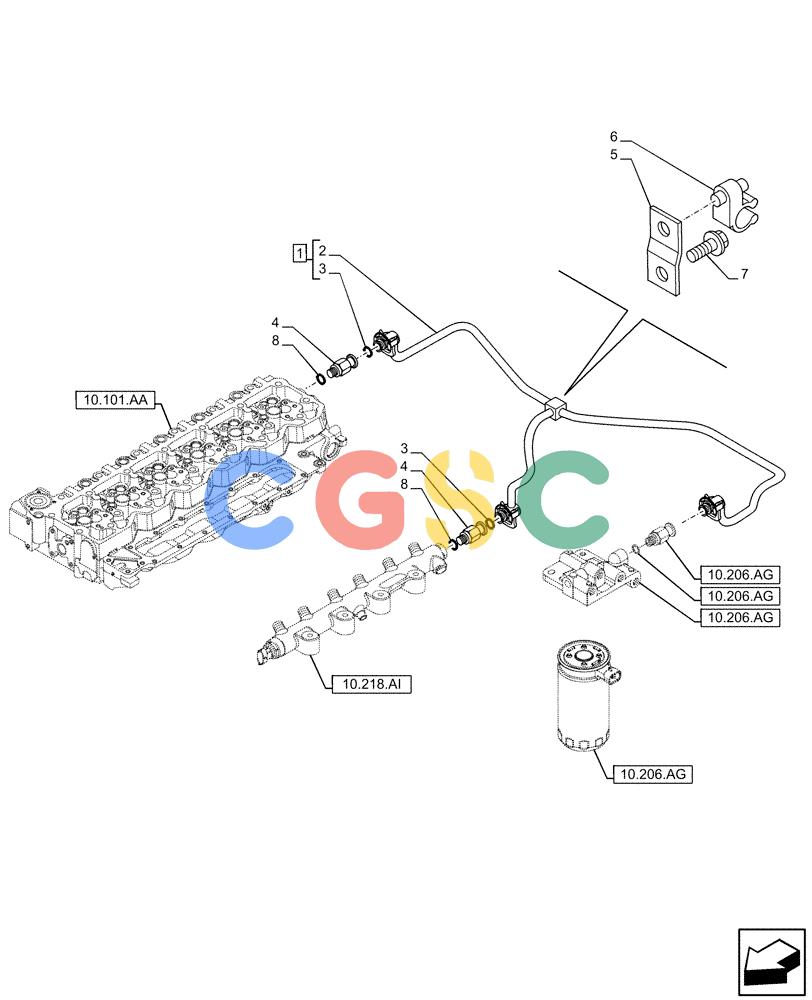

神钢零件查询(F4HFE6131 B003) - ENGINE 5801858658 IPU 280B TIER4 B (1/16-) (10.210.AS) - FUEL RETURN LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
422 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2855336 | [1] | RETURN PIPE | TORASSY, Fuel Drain, Incl 2, 3 Superseded by part number: |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONTube, Fuel Drain, Incl 1 |
| 3. | 4894095 | [2] | O-RING,2.5mm Thk x 8mm ID, 60 Duro | TOR |
| 5. | 4896996 | [3] | CLAMP,8mm D Clamping pipes | TOR |
| 7. | NS | [1] | NOT SERVICED | BASScrew |
| 8. | 4894095 | [2] | O-RING,2.5mm Thk x 8mm ID, 60 Duro | TOR |
