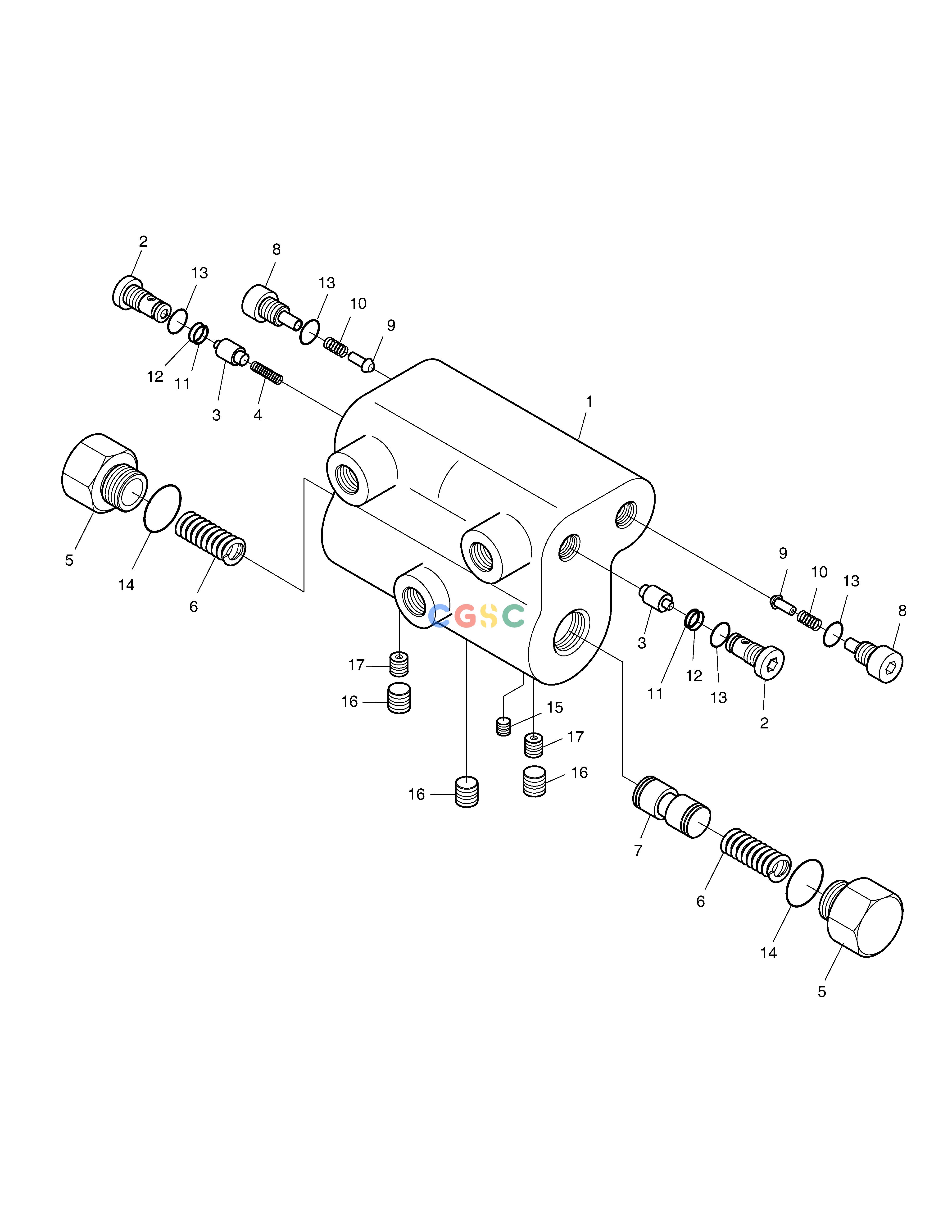

斗山零件查询CUSHION VALVE MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
433 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
420-00172KT
|
[1] |
SEAL KIT
|
|
| -. |
420-00172
|
[1] |
VALVE;CUSHION
|
|
| 1. |
NA00079
|
[1] |
BODY
|
|
| 10. |
NA01182
|
[2] |
. SPRING
|
|
| 11. |
S8060101
|
[2] |
RING;BACK UP
|
|
| 12. |
S8000101
|
[2] |
O-RING
|
|
| 13. |
S8000141
|
[4] |
O-RING
|
|
| 14. |
S8000241
|
[2] |
O-RING
|
|
| 15. |
2181-1116D1
|
[1] |
PLUG
|
|
| 16. |
2181-1116D2
|
[3] |
PLUG
|
|
| 17. |
NA00638
|
[2] |
|
|
| 2. |
NA01307
|
[2] |
|
|
| 3. |
NA00894
|
[2] |
|
|
| 4. |
NA01182
|
[1] |
. SPRING
|
|
| 5. |
NA00843
|
[2] |
PLUG
|
|
| 6. |
NA01182
|
[2] |
. SPRING
|
|
| 7. |
NA01161
|
[1] |
. SPOOL
|
|
| 8. |
NA00843
|
[2] |
PLUG
|
|
| 9. |
NA00894
|
[2] |
|
|
