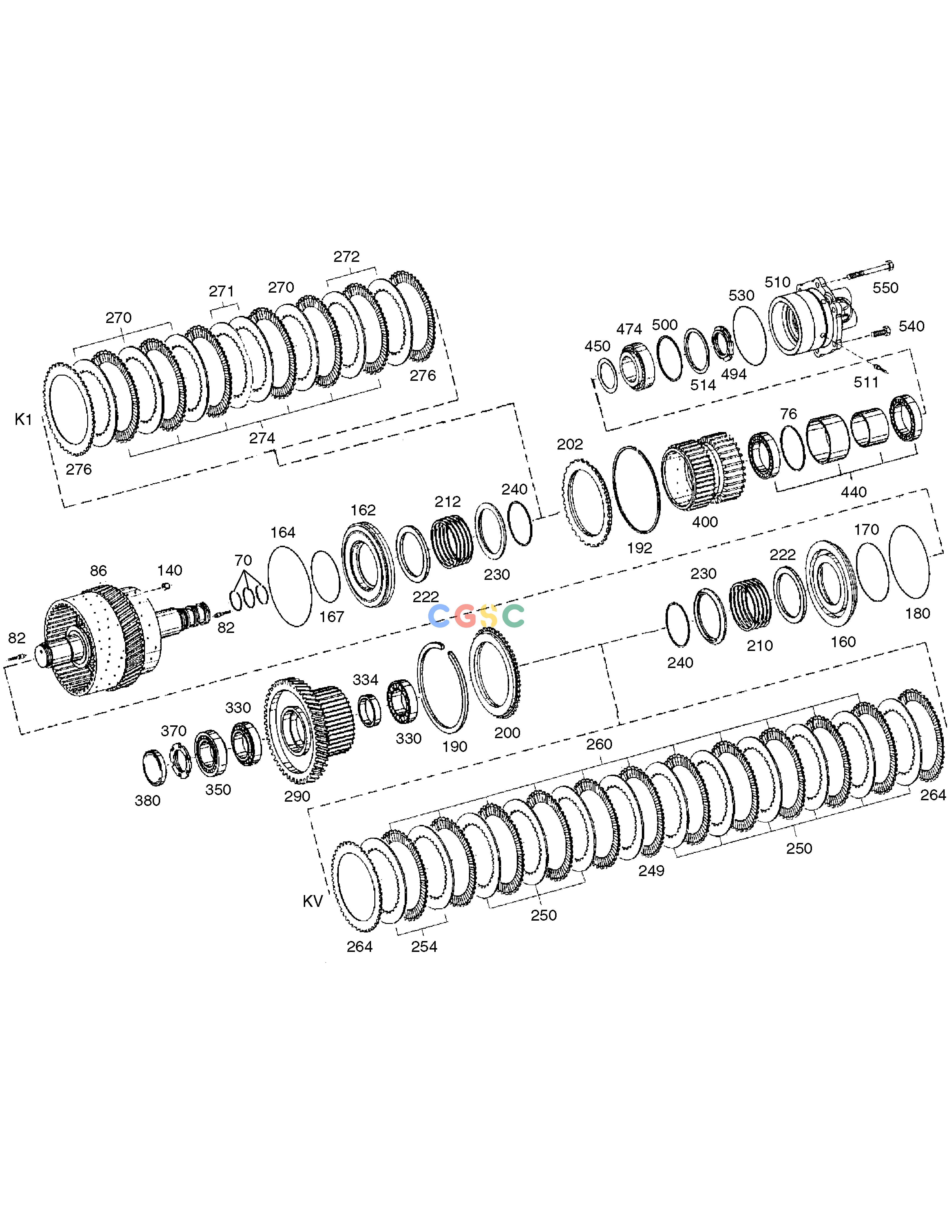

斗山零件查询COUPLING KV/K1 - TRANSMISSION MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
707 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9000139
|
[1] |
COUPLING KV/K1
|
|
| 140. |
1.420-00008
|
[2] |
VALVE
|
|
| 160. |
2.409-00230
|
[1] |
PISTON
|
|
| 162. |
2.409-00237
|
[1] |
PISTON
|
|
| 164. |
1.180-00101
|
[1] |
O-RING
|
|
| 167. |
2.180-01095
|
[1] |
O-RING
|
|
| 170. |
1.180-00098
|
[1] |
O-RING
|
|
| 180. |
1.180-00095
|
[1] |
O-RING
|
|
| 190. |
1.115-00070
|
[1] |
RING;SNAP A=2.45
|
|
| 190. |
1.115-00071
|
[1] |
RING;SNAP A=2.55
|
|
| 190. |
1.115-00073
|
[1] |
RING;SNAP A=2.60
|
|
| 190. |
1.115-00074
|
[1] |
RING;SNAP A=2.65
|
|
| 190. |
1.115-00075
|
[1] |
RING;SNAP A=2.70
|
|
| 190. |
1.115-00076
|
[1] |
RING;SNAP A=2.75
|
|
| 190. |
1.115-00077
|
[1] |
RING;SNAP A=2.80
|
|
| 190. |
1.115-00078
|
[1] |
RING;SNAP A=2.85
|
|
| 190. |
1.115-00079
|
[1] |
RING;SNAP A=2.90
|
|
| 190. |
1.115-00317
|
[1] |
RING;SNAP A=3.00
|
|
| 190. |
1.115-00357
|
[1] |
RING;SNAP A=3.05
|
|
| 190. |
1.115-00358
|
[1] |
RING;SNAP A=3.10
|
|
| 190. |
2.115-00318
|
[1] |
RING;SNAP A=2.95
|
|
| 190. |
2.115-00504
|
[1] |
RING;SNAP A=2.1
|
|
| 190. |
2.115-00505
|
[1] |
RING;SNAP A=2.15
|
|
| 190. |
2.115-00506
|
[1] |
RING;SNAP A=2.25
|
|
| 190. |
2.115-00507
|
[1] |
RING;SNAP A=2.35
|
|
| 192. |
1.115-00312
|
[1] |
RING;SNAP A=2.10
|
|
| 192. |
1.115-00313
|
[1] |
RING;SNAP A=2.20
|
|
| 192. |
1.115-00314
|
[1] |
RING;SNAP A=2.30
|
|
| 192. |
1.115-00315
|
[1] |
RING;SNAP A=2.40
|
|
| 192. |
1.115-00316
|
[1] |
RING;SNAP A=2.50
|
|
| 200. |
K9000090
|
[1] |
SHIM;END
|
|
| 202. |
2.114-01239
|
[1] |
SHIM;END
|
|
| 210. |
2.131-00292
|
[1] |
SPRING;COMPR.
|
|
| 212. |
2.131-00527
|
[1] |
SPRING;COMPR.
|
|
| 222. |
2.114-01321
|
[2] |
WASHER
|
|
| 230. |
2.115-00494
|
[2] |
RING;GUIDE
|
|
| 240. |
2.115-00366
|
[2] |
RING;SNAP
|
|
| 249. |
1.114-00172
|
[1] |
DISC;I.CLUTCH B=4.0
|
|
| 250. |
1.114-00171
|
[9] |
DISC;I. CLUTCH B=3.5
|
|
| 254. |
1.114-00170
|
[2] |
DISC;I. CLUTCH B=3.0
|
|
| 254. |
1.114-00171
|
[2] |
DISC;I. CLUTCH B=3.5
|
|
| 254. |
1.114-00172
|
[2] |
DISC;I.CLUTCH B=4.0
|
|
| 254. |
2.222-00043
|
[2] |
DISC;I.CLUTCH B=2.5
|
|
| 260. |
2.222-00047
|
[11] |
DISC;O.CLUTCH
|
|
| 264. |
2.222-00048
|
[2] |
DISC;O.CLUTCH
|
|
| 270. |
2.222-00085
|
[4] |
DISC;I.CLUTCH B=4.0
|
|
| 271. |
2.222-00082
|
[2] |
DISC;I. CLUTCH B=2.5
|
|
| 272. |
2.222-00082
|
[2] |
DISC;I. CLUTCH B=2.5
|
|
| 272. |
2.222-00083
|
[2] |
DISC;I. CLUTCH B=3.0
|
|
| 272. |
2.222-00084
|
[2] |
DISC;I. CLUTCH B=3.5
|
|
| 272. |
2.222-00085
|
[2] |
DISC;I.CLUTCH B=4.0
|
|
| 274. |
2.222-00087
|
[6] |
DISC;O. CLUTCH
|
|
| 276. |
2.222-00088
|
[2] |
DISC;O. CLUTCH
|
|
| 290. |
K9000034
|
[1] |
GEAR;SPUR
|
|
| 330. |
K9000089
|
[2] |
BEARING;ROLLER
|
|
| 334. |
K9000054
|
[1] |
RING
|
|
| 350. |
K9000089
|
[1] |
BEARING;ROLLER
|
|
| 370. |
K9000108
|
[1] |
NUT;SLOTTED
|
|
| 380. |
2.430-00427
|
[1] |
COVER
|
|
| 400. |
K9000033
|
[1] |
GEAR
|
|
| 440. |
K9000087
|
[1] |
BEARING;BALL
|
|
| 450. |
K9000053
|
[1] |
WASHER
|
|
| 474. |
2.109-00201
|
[1] |
BEARING;ROLLER
|
|
| 494. |
K9000108
|
[1] |
NUT;SLOTTED
|
|
| 500. |
2.114-01198
|
[1] |
SHIM S=0.85
|
|
| 500. |
2.114-01201
|
[1] |
SHIM A=0.95
|
|
| 500. |
K9000056
|
[1] |
SHIM S=2.2
|
|
| 500. |
K9000057
|
[1] |
SHIM S=2.15
|
|
| 500. |
K9000058
|
[1] |
SHIM S=2.1
|
|
| 500. |
K9000059
|
[1] |
SHIM S=2.05
|
|
| 500. |
K9000060
|
[1] |
SHIM S=2.0
|
|
| 500. |
K9000061
|
[1] |
SHIM S=1.95
|
|
| 500. |
K9000062
|
[1] |
SHIM S=1.9
|
|
| 500. |
K9000063
|
[1] |
SHIM S=1.85
|
|
| 500. |
K9000064
|
[1] |
SHIM S=1.8
|
|
| 500. |
K9000065
|
[1] |
SHIM S=1.75
|
|
| 500. |
K9000066
|
[1] |
SHIM S=1.7
|
|
| 500. |
K9000067
|
[1] |
SHIM S=1.65
|
|
| 500. |
K9000068
|
[1] |
SHIM S=1.6
|
|
| 500. |
K9000069
|
[1] |
SHIM S=1.55
|
|
| 500. |
K9000070
|
[1] |
SHIM S=1.5
|
|
| 500. |
K9000071
|
[1] |
SHIM S=1.45
|
|
| 500. |
K9000072
|
[1] |
SHIM S=1.4
|
|
| 500. |
K9000073
|
[1] |
SHIM S=1.35
|
|
| 500. |
K9000074
|
[1] |
SHIM S=1.3
|
|
| 500. |
K9000075
|
[1] |
SHIM S=1.2
|
|
| 500. |
K9000076
|
[1] |
SHIM S=1.1
|
|
| 500. |
K9000077
|
[1] |
SHIM S=1.00
|
|
| 500. |
K9000078
|
[1] |
SHIM S=1.25
|
|
| 500. |
K9000079
|
[1] |
SHIM A=0.9
|
|
| 500. |
K9000080
|
[1] |
SHIM A=1.05
|
|
| 500. |
K9000081
|
[1] |
SHIM A=1.15
|
|
| 500. |
K9000082
|
[1] |
SHIM S=0.7
|
|
| 500. |
K9000083
|
[1] |
SHIM S=0.75
|
|
| 500. |
K9000084
|
[1] |
SHIM S=0.8
|
|
| 510. |
K9000035
|
[1] |
COVER;BEARING
|
|
| 511. |
K9000032
|
[2] |
PLUG
|
|
| 514. |
2.115-00099
|
[1] |
RING
|
|
| 530. |
K9000041
|
[1] |
O-RING
|
|
| 540. |
2.120-00782
|
[4] |
SCREW
|
|
| 550. |
2.120-00595
|
[2] |
SCREW
|
|
| 70. |
1.115-00302
|
[3] |
RING;PISTON
|
|
| 76. |
K9000030
|
[1] |
RING;SNAP
|
|
| 82. |
K9000032
|
[3] |
PLUG
|
|
| 86. |
K9000147
|
[1] |
CARRIER;DISC
|
|
