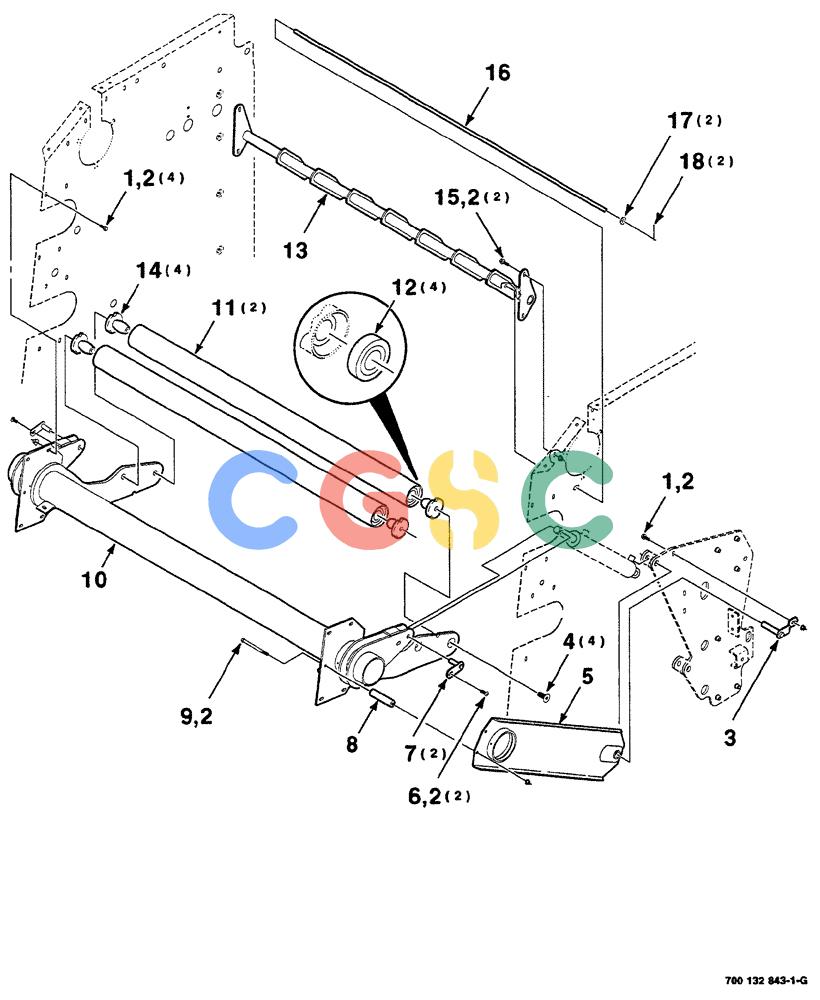

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (06-018) - BELT TENSIONING ROLLER ASSEMBLY (S.N. CFH0156400 AND LATER) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
206 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
121-226
|
[5] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 2. |
232-5316
|
[10] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 3. |
700132870
|
[1] |
SPECIAL PIN
|
HFI
WA
|
| 4. |
700707981
|
[4] |
SCREW,FLAT, 3/4" - 10 x 1-3/4"
|
L
hex socket flat countersunk head cap, 3/4-10 x 1-3/4
|
| 5. |
700132889
|
[1] |
SUPPORT
|
HFI
WA upper
|
| 6. |
7884414
|
[2] |
CAPSCREW,Button Hd, 3/8" - 16 x 1", Gr 8
|
CAS
3/8-16 x 1 HSHBHCS GR. 8 NP
|
| 7. |
700132919
|
[2] |
SPECIAL PIN
|
HFI
WA
|
| 8. |
700132891
|
[1] |
TUBE,25.4 mm OD, 102.5 mm Length
|
HFI
SPACER
|
| 9. |
413-680
|
[1] |
BOLT,Hex, 3/8" - 16 x 5", Gr 5
|
CAS
Superseded by part number: 280177
|
| 10. |
700132868
|
[1] |
ARM
|
HFI
WA upper
|
| 11. |
700124615
|
[2] |
ROLLER
|
CAS
ASSEMBLY (Includes Item 12)
|
| 12. |
8050825
|
[4] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
cylindrical Superseded by part number: F82059
|
| 13. |
700132776
|
[1] |
GUIDE
|
HFI
WA upper
|
| 14. |
700100927
|
[4] |
HUB
|
L
|
| 15. |
121-237
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
hex flange, 3/8-16 x 1-1/4 GR. 8 Superseded by part number: 87327172
|
| 16. |
700132781
|
[1] |
ROD
|
HFI
|
| 17. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
hardened plain, 1/2
|
| 18. |
432-1016
|
[2] |
COTTER PIN,5/32" x 1"
|
CAS
5/32" x 1" Superseded by part number: 83903970
|
