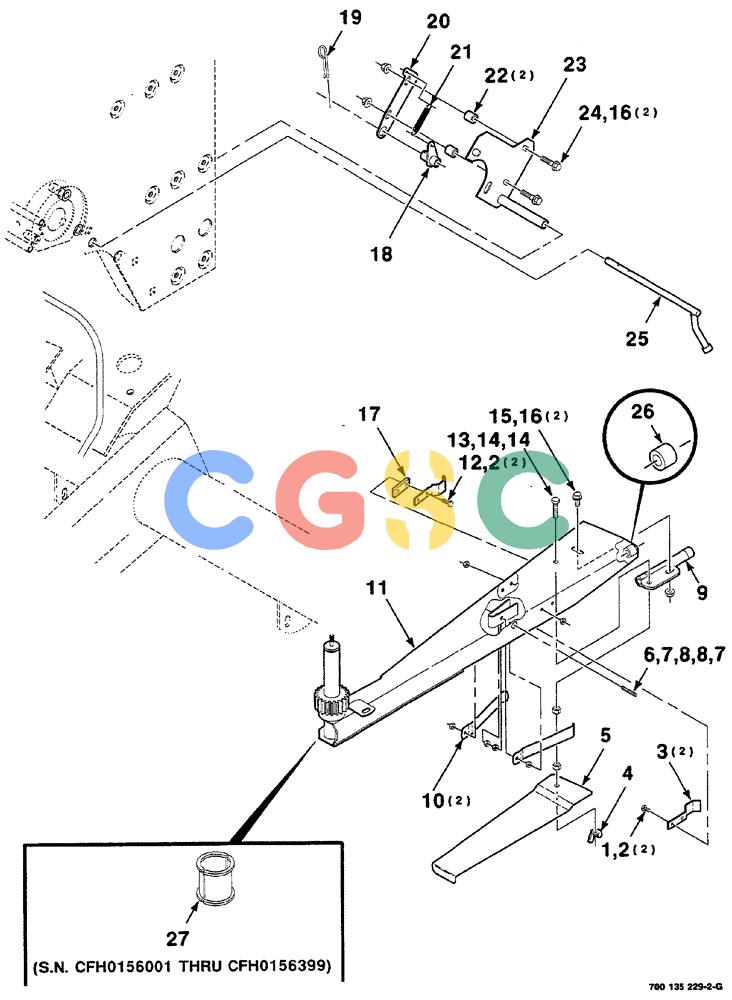

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (06-032) - TWINE THREADER SUPPORT ASSEMBLIES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
267 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-48
|
[2] |
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
|
CAS
Superseded by part number: 88542
|
| 2. |
232-4114
|
[4] |
LOCK NUT,1/4"-20, GC
|
CAS
hex top, 1/4-20 GR/B Superseded by part number: 280129
|
| 3. |
700122987
|
[2] |
GUIDE
|
CAS
twine
|
| 4. |
129-410
|
[1] |
WING NUT,3/8"-16
|
CAS
|
| 5. |
700132997
|
[1] |
SHIELD
|
HFI
twinearm
|
| 6. |
700135164
|
[1] |
ROD
|
HFI
threaded, 1/4-20
|
| 7. |
425-104
|
[2] |
NUT,1/4"-20, Cl 5
|
CAS
Superseded by part number: 7770, 72187220
|
| 8. |
425-144
|
[2] |
JAM NUT,Jam, 1/4"-20, G5
|
CAS
Superseded by part number: 87305
|
| 9. |
700132413
|
[1] |
ARM
|
HFI
WA twine
|
| 10. |
700707665
|
[2] |
LARGE PLATE
|
IH
PLATE, LARGE LEAF spring
|
| 11. |
700135660
|
[1] |
ARM
|
HFI
WA twine (Includes: Ref. 26)
|
| 12. |
413-412
|
[2] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
|
CAS
Superseded by part number: 9707580, 72187189
|
| 13. |
873083
|
[1] |
SCREW
|
CAS
SCREW full thread hex cap, 3/8-16 x 1-1/2
|
| 14. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 15. |
409-7612
|
[2] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 16. |
232-5316
|
[4] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 17. |
700132412
|
[1] |
PLATE
|
HFI
|
| 18. |
700135090
|
[1] |
LEVER
|
HFI
WA Superseded by part number: 38-11016, 87398, 700159021, 700159023
|
| 19. |
S120261
|
[1] |
PIN
|
CAS
wire hair, cotter, .148
|
| 20. |
700135093
|
[1] |
PLATE
|
HFI
|
| 21. |
700707432
|
[1] |
SPRING
|
L
extension
|
| 22. |
6869382
|
[2] |
SPACER
|
HFI
|
| 23. |
700150125
|
[1] |
SUPPORT
|
HFI
WA
|
| 24. |
700711084
|
[2] |
BOLT
|
CAS
3/8-16 x 1-1/2 NFS GR. 8
|
| 25. |
700150123
|
[1] |
GUIDE
|
HFI
WA right, plated Superseded by part number: 280634, 700159023, 87398, 700159021
|
| 26. |
700107983
|
[1] |
GUIDE
|
HFI
|
| 27. |
700153710
|
[1] |
SPOOL
|
HFI
|
