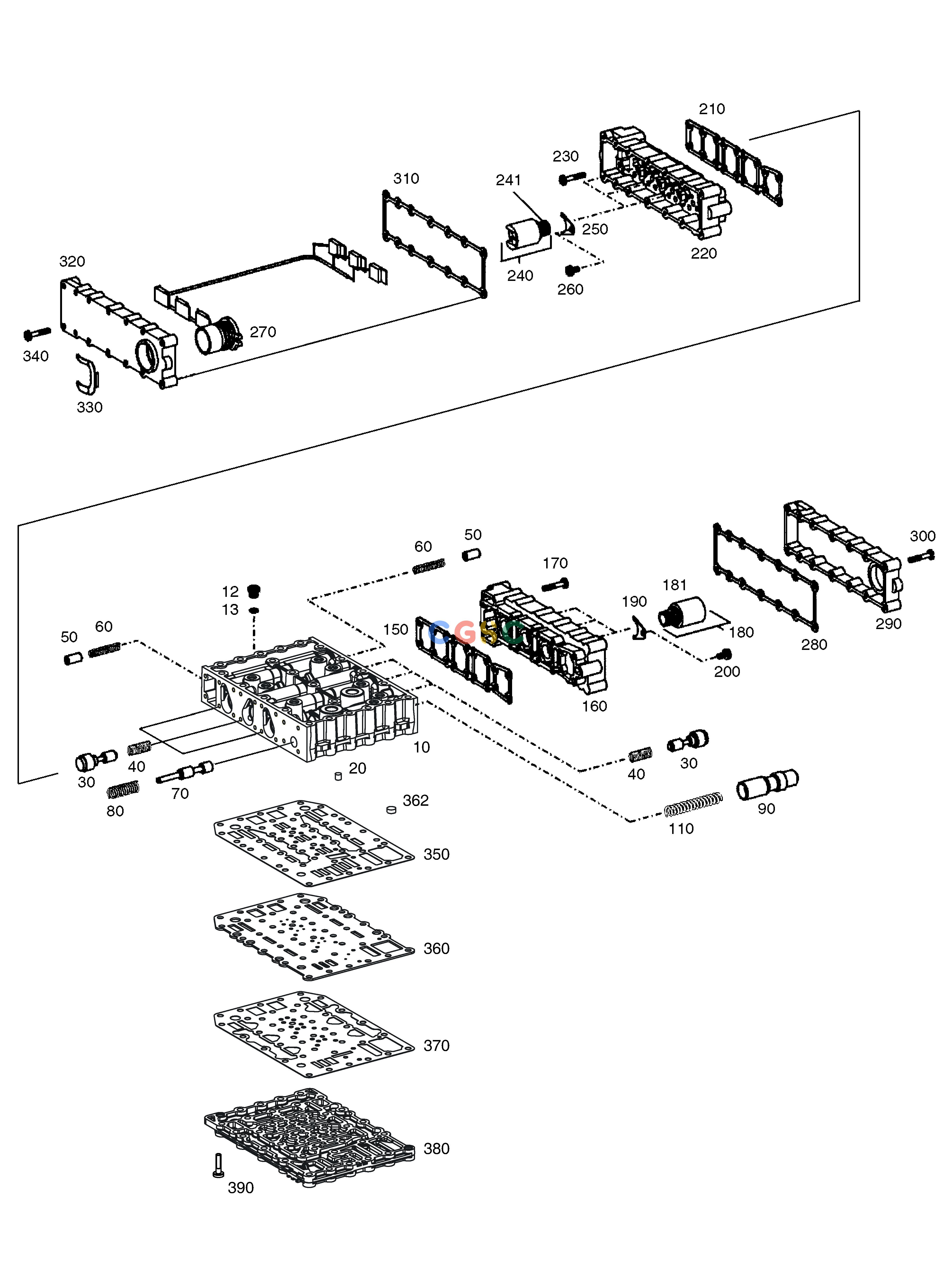

斗山零件查询GEAR SHIFT SYSTEM(2) - TRANSMISSION MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
402 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9000099
|
[1] |
GEARSHIFT SYST.(2)
|
|
| 10. |
1.451-00082
|
[1] |
BLOCK;VALVE
|
|
| 110. |
1.131-00007
|
[1] |
SPRING;COMPR.
|
|
| 12. |
1.120-00165
|
[8] |
PLUG
|
|
| 13. |
180-00408
|
[8] |
O-RING
|
|
| 150. |
K9000115
|
[1] |
GASKET
|
|
| 160. |
2.402-00304
|
[1] |
HOUSING
|
|
| 170. |
1.120-00057
|
[18] |
SCREW
|
|
| 180. |
1.421-00001
|
[3] |
REGULATOR;PRESSURE
|
|
| 181. |
1.180-00057
|
[3] |
. O-RING
|
|
| 190. |
1.412-00004
|
[3] |
PLATE;FIXING
|
|
| 20. |
1.415-00001
|
[6] |
ORIFICE
|
|
| 200. |
1.120-00086
|
[3] |
SCREW
|
|
| 210. |
K9000115
|
[1] |
GASKET
|
|
| 220. |
2.402-00304
|
[1] |
HOUSING
|
|
| 230. |
1.120-00057
|
[18] |
SCREW
|
|
| 240. |
1.421-00001
|
[3] |
REGULATOR;PRESSURE
|
|
| 241. |
1.180-00057
|
[3] |
. O-RING
|
|
| 250. |
1.412-00004
|
[3] |
PLATE;FIXING
|
|
| 260. |
1.120-00086
|
[3] |
SCREW
|
|
| 270. |
1.530-00001
|
[1] |
HARNESS;WIRING
|
|
| 280. |
K9000109
|
[1] |
GASKET
|
|
| 290. |
1.430-00002
|
[14] |
COVER
|
|
| 30. |
1.409-00006
|
[6] |
PISTON
|
|
| 300. |
1.120-00057
|
[1] |
SCREW
|
|
| 310. |
K9000109
|
[1] |
GASKET
|
|
| 320. |
1.430-00003
|
[1] |
COVER
|
|
| 330. |
1.124-00141
|
[1] |
CLAMP;RETAINING
|
|
| 340. |
1.120-00057
|
[14] |
SCREW
|
|
| 350. |
1.180-00007
|
[1] |
GASKET
|
|
| 360. |
1.461-00005
|
[1] |
SHEET
|
|
| 360. |
K9002920
|
[1] |
SHEET;INTERMEDIATE
|
|
| 362. |
1.471-00007
|
[6] |
SCREEN
|
|
| 370. |
1.180-00008
|
[1] |
GASKET
|
|
| 380. |
K9000100
|
[1] |
PLATE;DUCT
|
|
| 390. |
1.120-00062
|
[18] |
SCREW
|
|
| 390. |
1.120-00087
|
[18] |
SCREW M6X25
|
|
| 40. |
1.131-00004
|
[6] |
SPRING;COMPR.
|
|
| 50. |
1.409-00007
|
[6] |
PISTON
|
|
| 60. |
1.131-00005
|
[6] |
SPRING;COMPR.
|
|
| 70. |
1.409-00008
|
[1] |
PISTON
|
|
| 80. |
1.131-00006
|
[1] |
SPRING;COMPR.
|
|
| 90. |
K9000101
|
[1] |
PISTON;CONTROL
|
|
