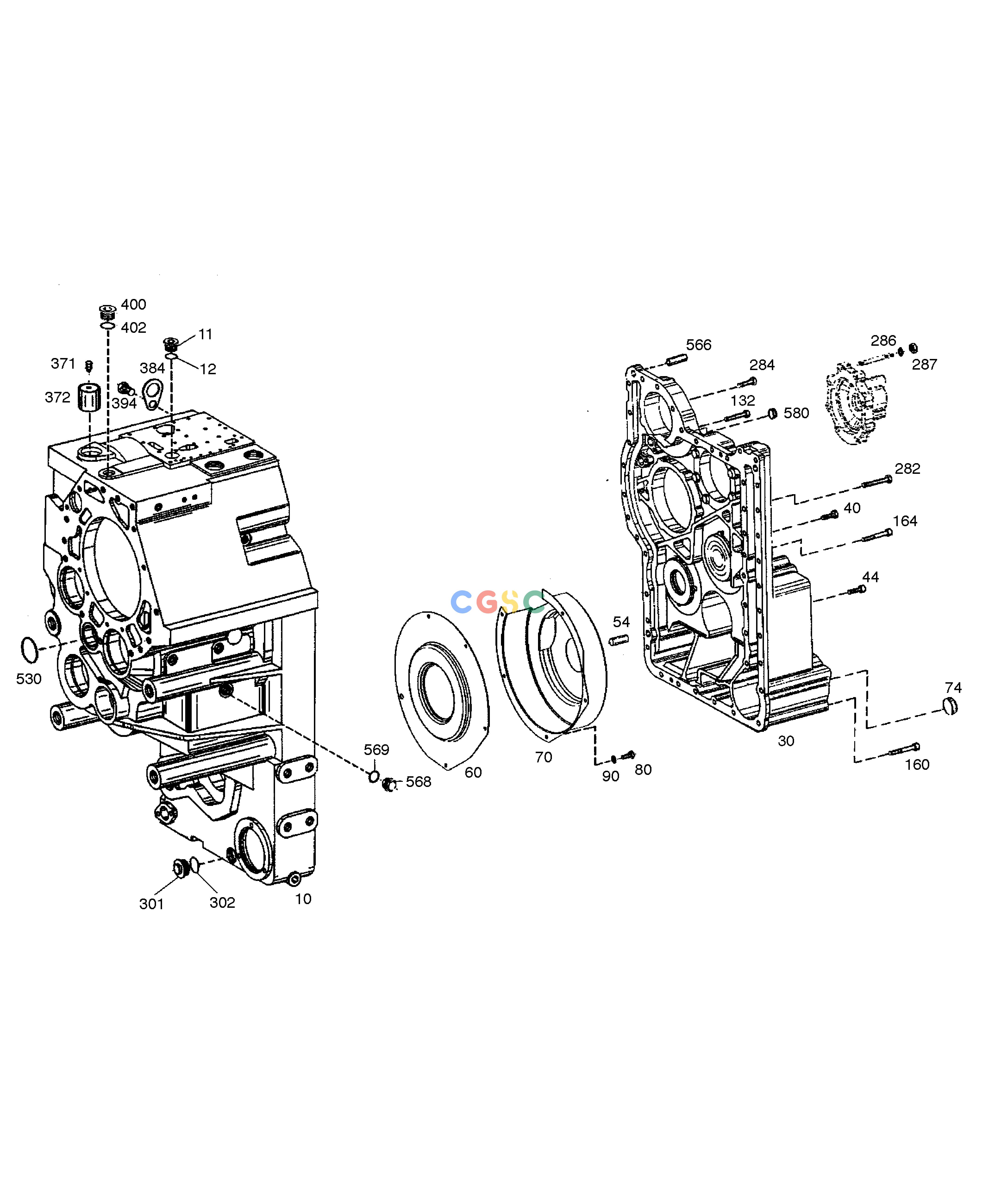

斗山零件查询GEARBOX HOUSING - TRANSMISSION MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
561 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9000125
|
[1] |
GEARBOX HOUSING
|
|
| 10. |
K9000151
|
[1] |
HOUSING
|
|
| 11. |
1.120-00183
|
[1] |
PLUG
|
|
| 12. |
1.180-00077
|
[1] |
O-RING
|
|
| 132. |
K9000044
|
[1] |
SCREW
|
|
| 160. |
K9000050
|
[9] |
SCREW
|
|
| 164. |
2.120-00744
|
[1] |
SCREW
|
|
| 282. |
K9000045
|
[7] |
SCREW
|
|
| 284. |
K9000043
|
[8] |
SCREW
|
|
| 286. |
1.114-00263
|
[2] |
WASHER
|
|
| 287. |
2.121-00255
|
[2] |
NUT;HEX.
|
|
| 30. |
K9000150
|
[1] |
COVER;BEARING
|
|
| 301. |
1.181-00015
|
[1] |
PLUG
|
|
| 302. |
1.180-00052
|
[1] |
. O-RING
|
|
| 371. |
1.120-00167
|
[1] |
PLUG
|
|
| 372. |
1.180-00075
|
[1] |
O-RING
|
|
| 384. |
1.412-00049
|
[2] |
PLATE;FIXING
|
|
| 394. |
1.120-00130
|
[2] |
SCREW
|
|
| 40. |
K9000048
|
[12] |
SCREW
|
|
| 400. |
2.422-00001
|
[1] |
BREATHER
|
|
| 402. |
1.181-00117
|
[1] |
POT
|
|
| 44. |
K9000048
|
[2] |
SCREW
|
|
| 530. |
K9000040
|
[1] |
O-RING
|
|
| 54. |
1.123-00050
|
[2] |
PIN;CYLINDRICAL
|
|
| 566. |
1.123-00064
|
[1] |
PIN;SLOT
|
|
| 568. |
1.120-00169
|
[1] |
PLUG;SCREW
|
|
| 569. |
1.180-00077
|
[1] |
O-RING
|
|
| 580. |
2.430-00435
|
[1] |
CAP;SEALING
|
|
| 60. |
K9000146
|
[1] |
SHEET;COVER
|
|
| 70. |
K9000152
|
[1] |
SHEET;COVER
|
|
| 74. |
K9000029
|
[1] |
CAP;SEALING
|
|
| 80. |
K9000047
|
[5] |
SCREW
|
|
| 90. |
1.114-00266
|
[4] |
RONDELLE
|
|
