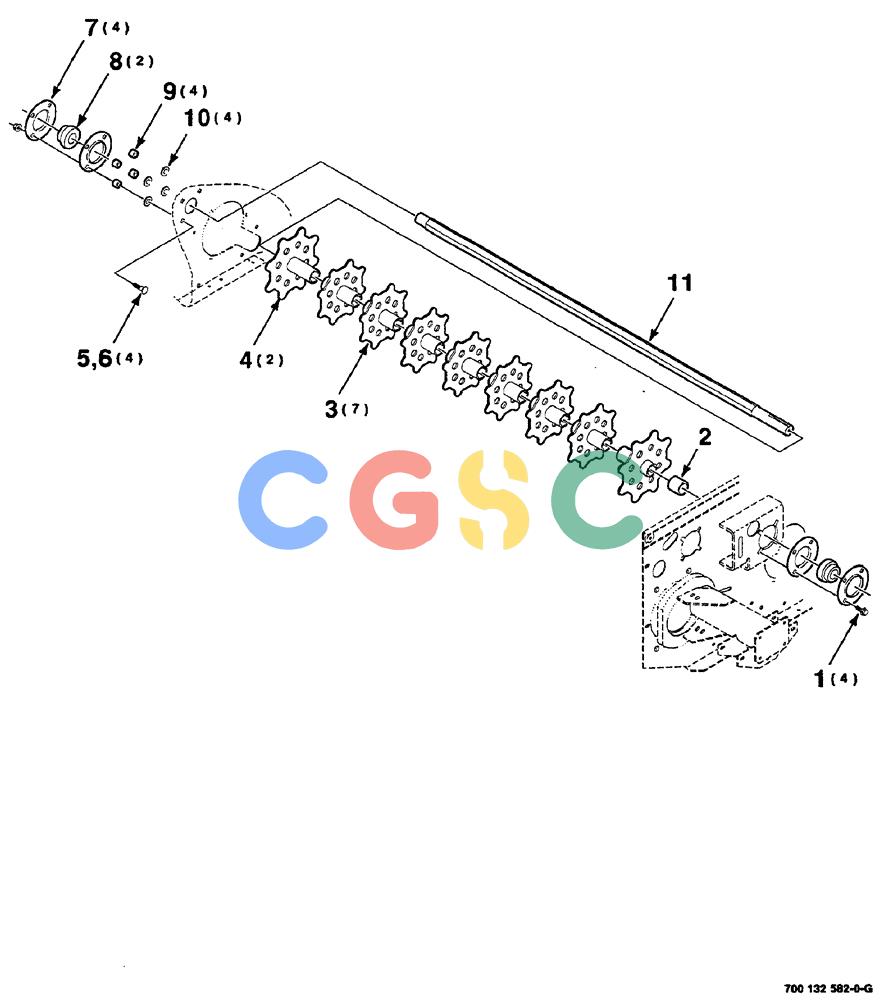

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (06-036) - REINK ASSEMBLY (S.N. CFH0156400 AND LATER) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
777 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700710984
|
[4] |
SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC
|
CAS
|
| 2. |
700132978
|
[1] |
SPACER
|
HFI
|
| 3. |
700132973
|
[7] |
CASTING
|
HFI
REINK WA inner
|
| 4. |
700132970
|
[2] |
CASTING
|
HFI
REINK WA outer
|
| 5. |
433-832
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
|
CAS
BOLT round head square neck, 1/2-13 x 2 RHSNB Superseded by part number: 280185
|
| 6. |
231-5348
|
[4] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
hex flange top lock, 1/2-13 GR/G Superseded by part number: 86521610
|
| 7. |
663562R1
|
[4] |
FLANGE
|
IH
80mm
|
| 8. |
50468
|
[2] |
SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm
|
IH
|
| 9. |
6507388
|
[4] |
SPACER
|
CAS
|
| 10. |
396-21066
|
[4] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
5/8" bolt size Superseded by part number: 87613283
|
| 11. |
700132989
|
[1] |
SHAFT
|
HFI
hex
|
