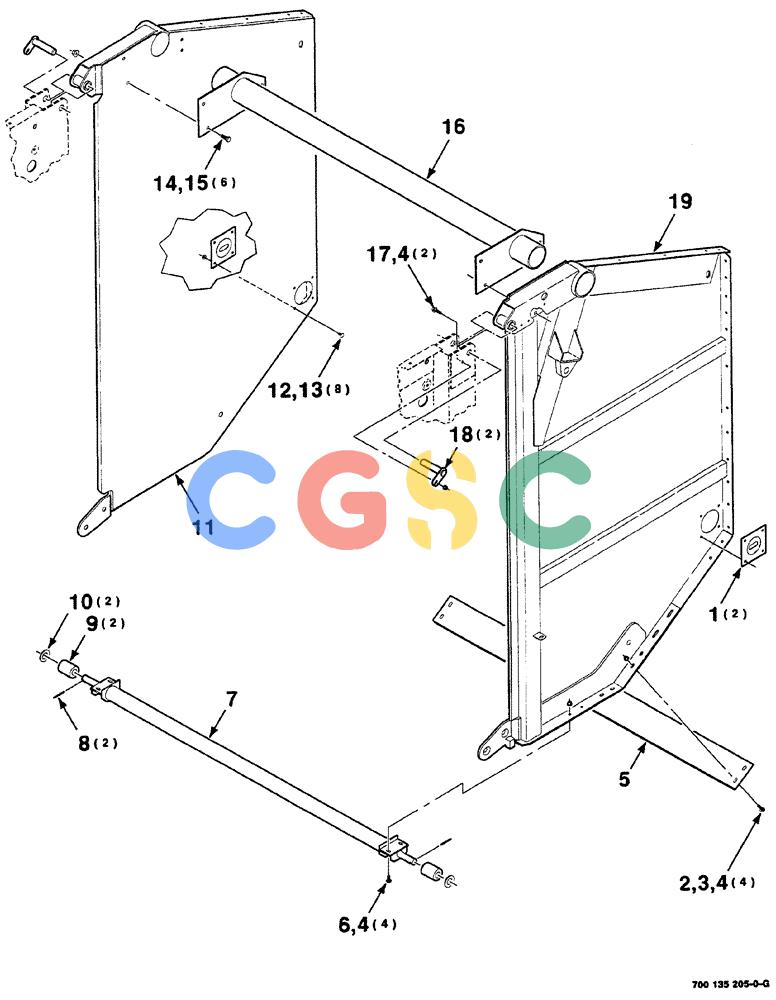

| 1. |
700125148
|
[2] |
PLUG
|
HFI
|
| 2. |
121-226
|
[4] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 3. |
495-21044
|
[4] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 4. |
232-5316
|
[10] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 5. |
700135733
|
[1] |
SUPPORT
|
HFI
lower
|
| 6. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 7. |
700135414
|
[1] |
SHAFT
|
HFI
WA
|
| 8. |
38-11632
|
[2] |
LOCK PIN,1/4" x 2", Slotted
|
CAS
Superseded by part number: 87718
|
| 9. |
700132082
|
[2] |
BUSHING
|
HFI
|
| 10. |
705574
|
[2] |
WASHER,1 1/8" x 2" x .156", HDN
|
CAS
|
| 11. |
700135380
|
[1] |
SIDE ASSY.
|
HFI
WA tailgate, right
|
| 12. |
433-512
|
[8] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 13. |
232-5315
|
[8] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
hex flange top lock, 5/16-18 GR/G
|
| 14. |
413-820
|
[6] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| 15. |
231-5348
|
[6] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
hex flange top lock, 1/2-13 GR/G Superseded by part number: 86521610
|
| 16. |
700135402
|
[1] |
TUBE
|
HFI
WA
|
| 17. |
121-237
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
hex flange, 3/8-16 x 1-1/4 GR. 8 Superseded by part number: 87327172
|
| 18. |
700135411
|
[2] |
PIN
|
HFI
WA Superseded by part number: 700166213, 700134804
|
| 19. |
700135379
|
[1] |
SIDE ASSY.
|
HFI
WA tailgate, left
|
