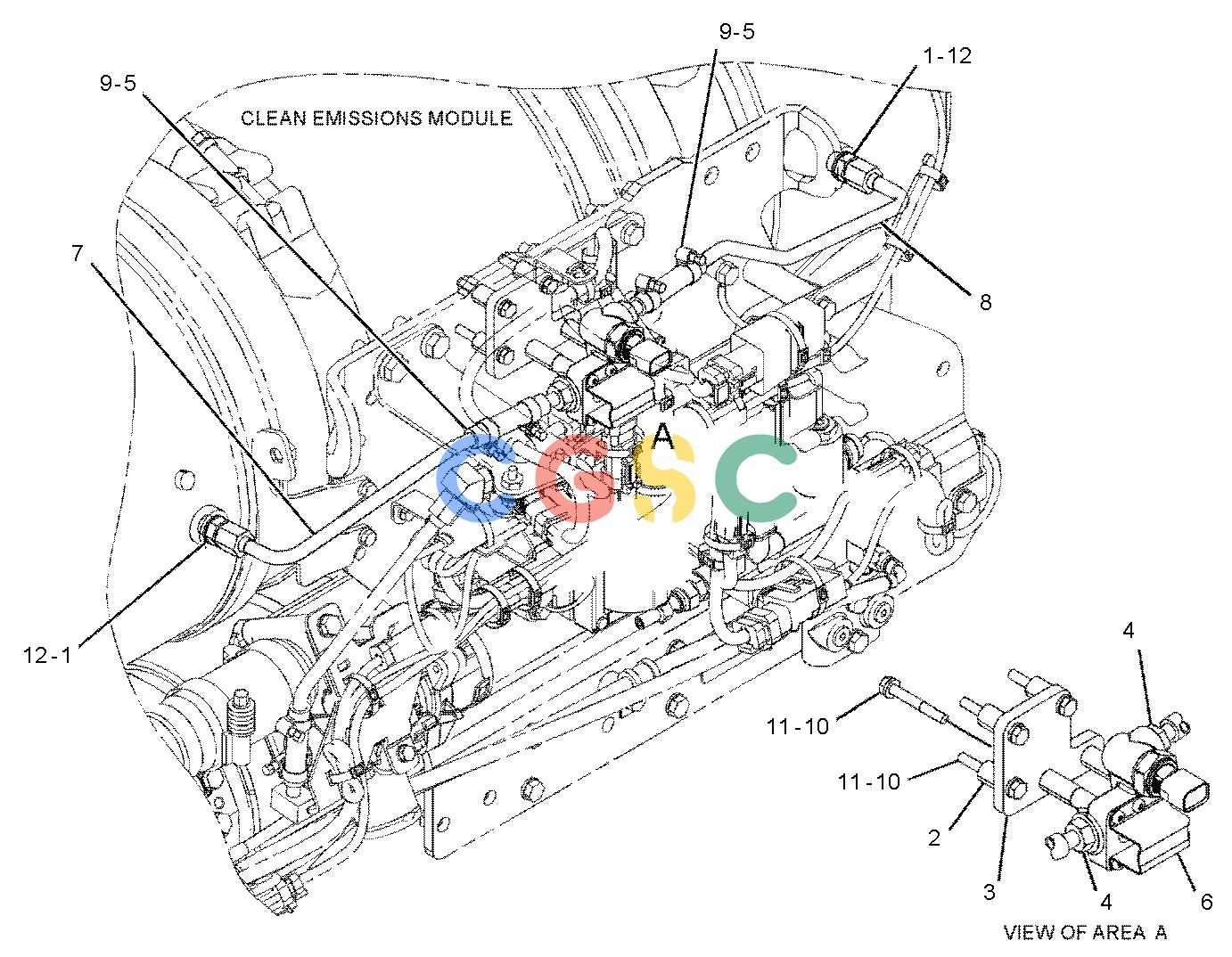

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 5G-7820 | [1] | MAGNET AS | |
| 3. | 229-5527Y | [1] | SENSOR GP-POSITION(TRUCK BODY POSITION) | |
| 4. | 453-6256 | [1] | PLATE AS | |
| 7T-1099 | [1] | LINK | ||
| 5. | 099-3649M | [2] | BOLT(M8X1.25X40-MM) | |
| 6. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 7. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 8. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 9. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
