卡特零件查询（725C2） 416-4730: SENSOR & MTG GP-PRESSURE
广数供应链运营团队, 15 02月, 2025，浏览：
956 次

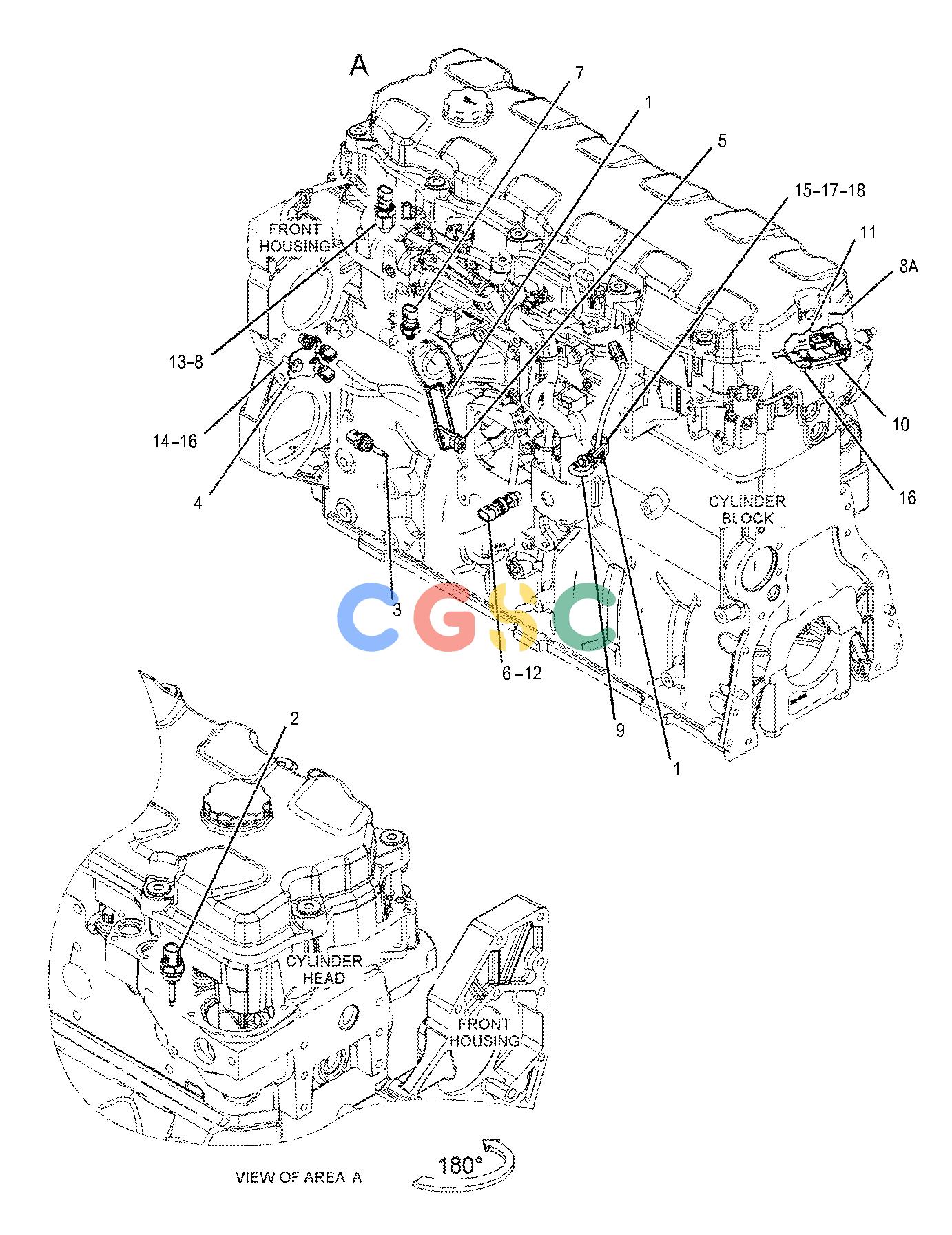

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0472 | [2] | ADAPTER | |
| 2. | 127-1991 | [3] | SPACER(8.2X13X15-MM THK) | |
| 3. | 384-2916 | [1] | PLATE AS | |
| 4. | 385-5773 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 5P-1046 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 5. | 415-2415 | [2] | HOSE-AIR | |
| 6. | 415-8044Y | [1] | SENSOR GP-PRESSURE(DPF DIFFERENTIAL) | |
| 7. | 417-3554 | [1] | TUBE AS | |
| 8. | 417-3555 | [1] | TUBE AS | |
| 9. | 124-6275 | [4] | CLAMP-HOSE | |
| 10. | 344-1198 | [5] | BOLT(M6X1X45-MM) | |
| 11. | 344-1200 | [5] | WASHER-HARD(6.6X12X2-MM THK) | |
| 12. | 7W-3556 | [2] | WASHER(14.27X20.57X1.5-MM THK) | |
| | Y | | SEPARATE ILLUSTRATION |
