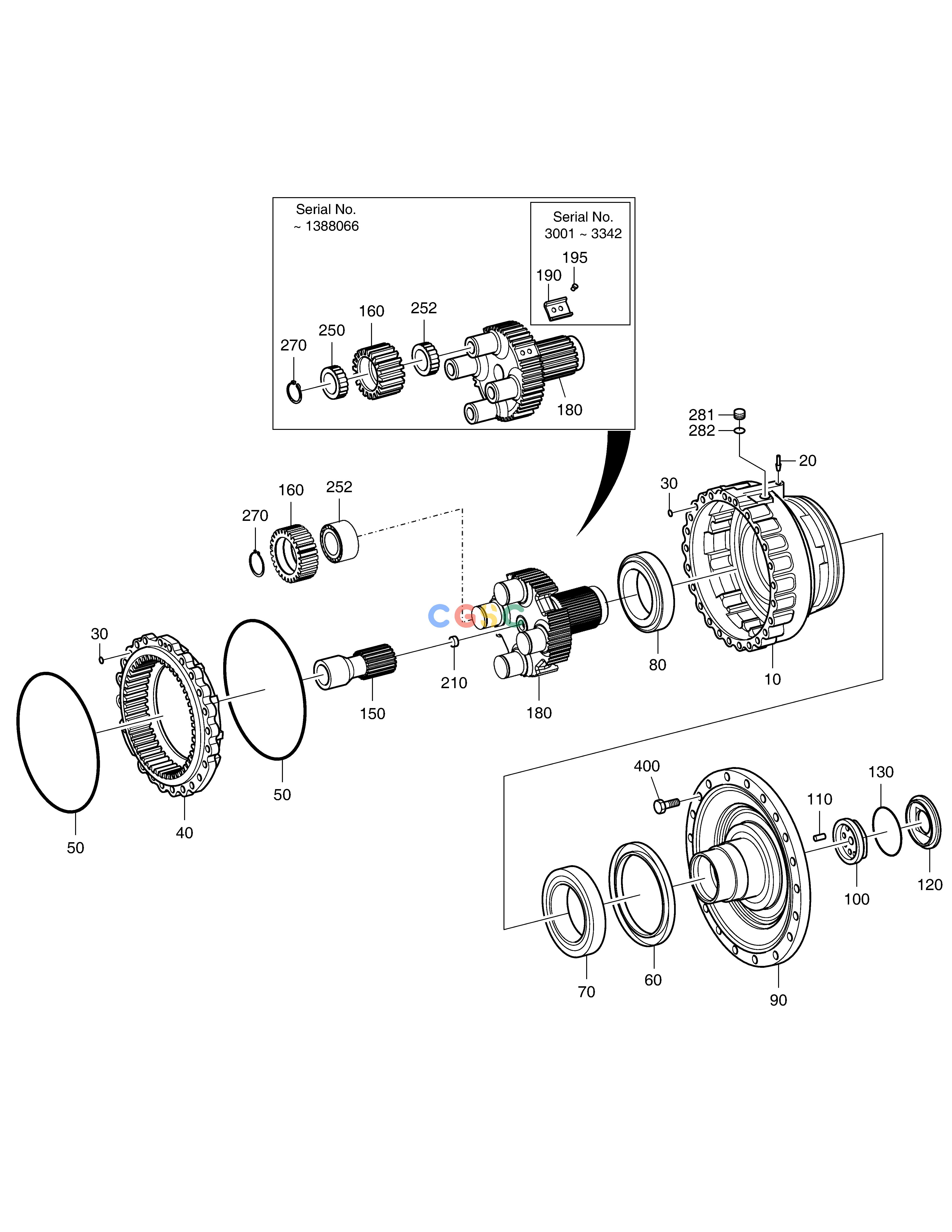

斗山零件查询OUTPUT - REAR AXLE MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
501 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
K9000340
|
[2] |
HOUSING
|
|
| 100. |
K9000292
|
[2] |
NUT;ADJUSTING
|
|
| 110. |
K9000173
|
[2] |
PIN;SLOT
|
|
| 120. |
K9000286
|
[2] |
COVER
|
|
| 130. |
2.180-00284
|
[2] |
O-RING
|
|
| 150. |
K9000337
|
[2] |
SHAFT;SUN GEAR
|
|
| 160. |
K9000336
|
[8] |
GEAR;PLANET
|
|
| 160. |
130418-00002
|
[8] |
|
|
| 180. |
K9000341
|
[2] |
CARRIER;PLANET
|
|
| 180. |
100502-00007
|
[2] |
|
|
| 190. |
K9000318
|
[8] |
PLATE
|
|
| 195. |
K9000305
|
[16] |
SCREW
|
|
| 20. |
K9000032
|
[2] |
PLUG
|
|
| 210. |
K9000277
|
[2] |
BOLT;STOP
|
|
| 250. |
K9000321
|
[8] |
RING;BEARING INNER
|
|
| 252. |
K9000322
|
[8] |
RING;BEARING INNER
|
|
| 252. |
140107-00007
|
[8] |
|
|
| 270. |
K9000171
|
[8] |
RING;RETAINING
|
|
| 270. |
401003-00005
|
[8] |
|
|
| 281. |
K9000164
|
[2] |
PLUG;SCREW
|
|
| 282. |
1.180-00137
|
[2] |
. O-RING
|
|
| 30. |
K9000179
|
[4] |
O-RING
|
|
| 40. |
K9000334
|
[2] |
GEAR;RING
|
|
| 400. |
K9005142
|
[40] |
BOLT;WHEEL
|
|
| 50. |
K9000176
|
[4] |
O-RING
|
|
| 60. |
K9000279
|
[2] |
RING;SEAL
|
|
| 70. |
K9000324
|
[2] |
BEARING;TAPER ROLLER
|
|
| 80. |
K9000323
|
[2] |
BEARING;TAPPER ROLLER
|
|
| 90. |
K9000344
|
[2] |
SHAFT;OUTPUT
|
|
