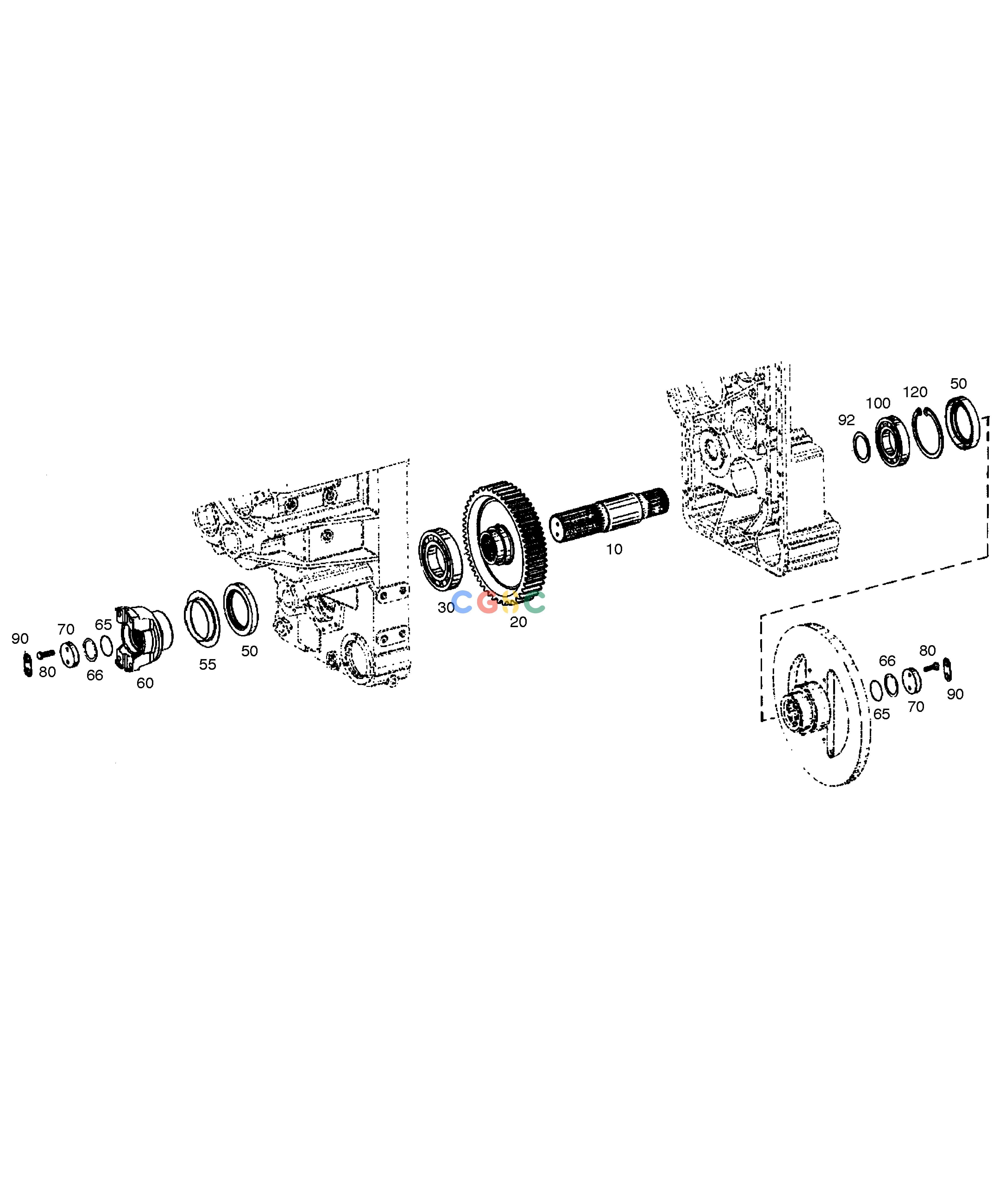

斗山零件查询OUTPUT - TRANSMISSION MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
626 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9000127
|
[1] |
OUTPUT
|
|
| 10. |
2.405-00227
|
[1] |
SHAFT;OUTPUT
|
|
| 100. |
2.109-00106
|
[1] |
BEARING;BALL
|
|
| 120. |
2.115-00287
|
[1] |
RING;RETAINING
|
|
| 20. |
2.403-00309
|
[1] |
GEAR
|
|
| 30. |
2.109-00321
|
[1] |
BEARING;ROLLER
|
|
| 50. |
1.180-00534
|
[2] |
SEAL;SHAFT
|
|
| 55. |
2.461-00009
|
[1] |
SHEET;PROTECT.
|
|
| 60. |
K9000156
|
[1] |
FLANGE;OUTPUT
|
|
| 65. |
2.180-01092
|
[2] |
O-RING
|
|
| 66. |
2.114-01270
|
[2] |
WASHER A=0.5
|
|
| 66. |
2.114-01272
|
[2] |
WASHER A=1.0
|
|
| 66. |
2.114-01273
|
[2] |
WASHER A=1.5
|
|
| 66. |
2.114-01289
|
[2] |
WASHER A=2.0
|
|
| 70. |
1.114-00281
|
[2] |
WASHER
|
|
| 80. |
2.120-00584
|
[4] |
SCREW
|
|
| 90. |
1.114-00488
|
[2] |
WASHER
|
|
| 92. |
1.114-00081
|
[1] |
SHIM S=1.1
|
|
| 92. |
1.114-00089
|
[1] |
SHIM S=1.2
|
|
| 92. |
1.114-00093
|
[1] |
SHIM S=1.3
|
|
| 92. |
1.114-00099
|
[1] |
SHIM S=1.4
|
|
| 92. |
1.114-00106
|
[1] |
SHIM S=1.5
|
|
| 92. |
1.114-00112
|
[1] |
SHIM S=1.6
|
|
| 92. |
1.114-00116
|
[1] |
SHIM S=1.7
|
|
| 92. |
1.114-00118
|
[1] |
SHIM S=1.8
|
|
| 92. |
1.114-00120
|
[1] |
SHIM S=1.9
|
|
| 92. |
1.114-00124
|
[1] |
SHIM S=2.0
|
|
| 92. |
1.114-00126
|
[1] |
SHIM S=2.1
|
|
| 92. |
1.114-00127
|
[1] |
SHIM S=2.2
|
|
| 92. |
1.114-00128
|
[1] |
SHIM S=2.3
|
|
| 92. |
1.114-00129
|
[1] |
SHIM S=2.4
|
|
| 92. |
1.114-00134
|
[1] |
SHIM S=3.0
|
|
| 92. |
2.114-00578
|
[1] |
SHIM S=1.0
|
|
| 92. |
1.114-00131
|
[1] |
SHIM S=2.5
|
|
