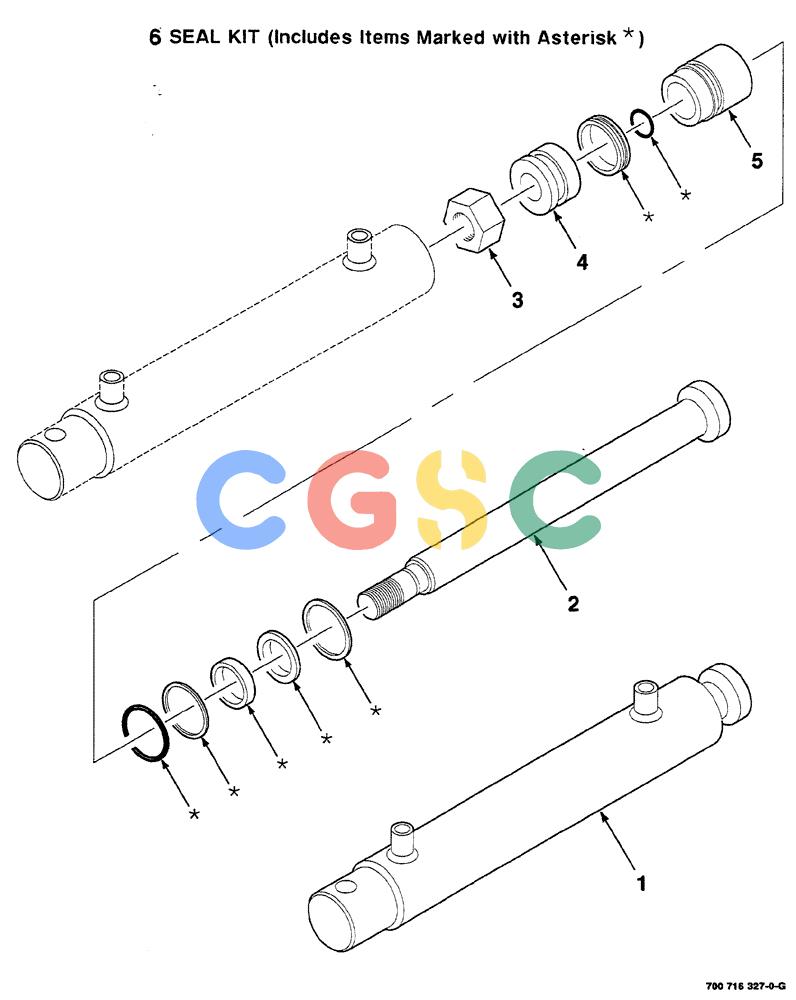

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (9-018) - HYDRAULIC CYLINDER ASSEMBLY, PICKUP LIFT, 700716327 COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
984 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700716327
|
[1] |
CYLINDER
|
CAS
ASSY. hydraulic, complete, 1-1/2 in. bore x 7-1/4 in. stroke
|
| 2. |
700716691
|
[1] |
ROD
|
CAS
piston
|
| 3. |
700707412
|
[1] |
LOCK NUT
|
HFI
3/4"-16
|
| 4. |
700716690
|
[1] |
PISTON
|
CAS
|
| 5. |
700716692
|
[1] |
GUIDE
|
CAS
piston
|
| 6. |
700716693
|
[1] |
KIT
|
CAS
seal and o-ring repair, Includes items in art marked with asterisk
|
