| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

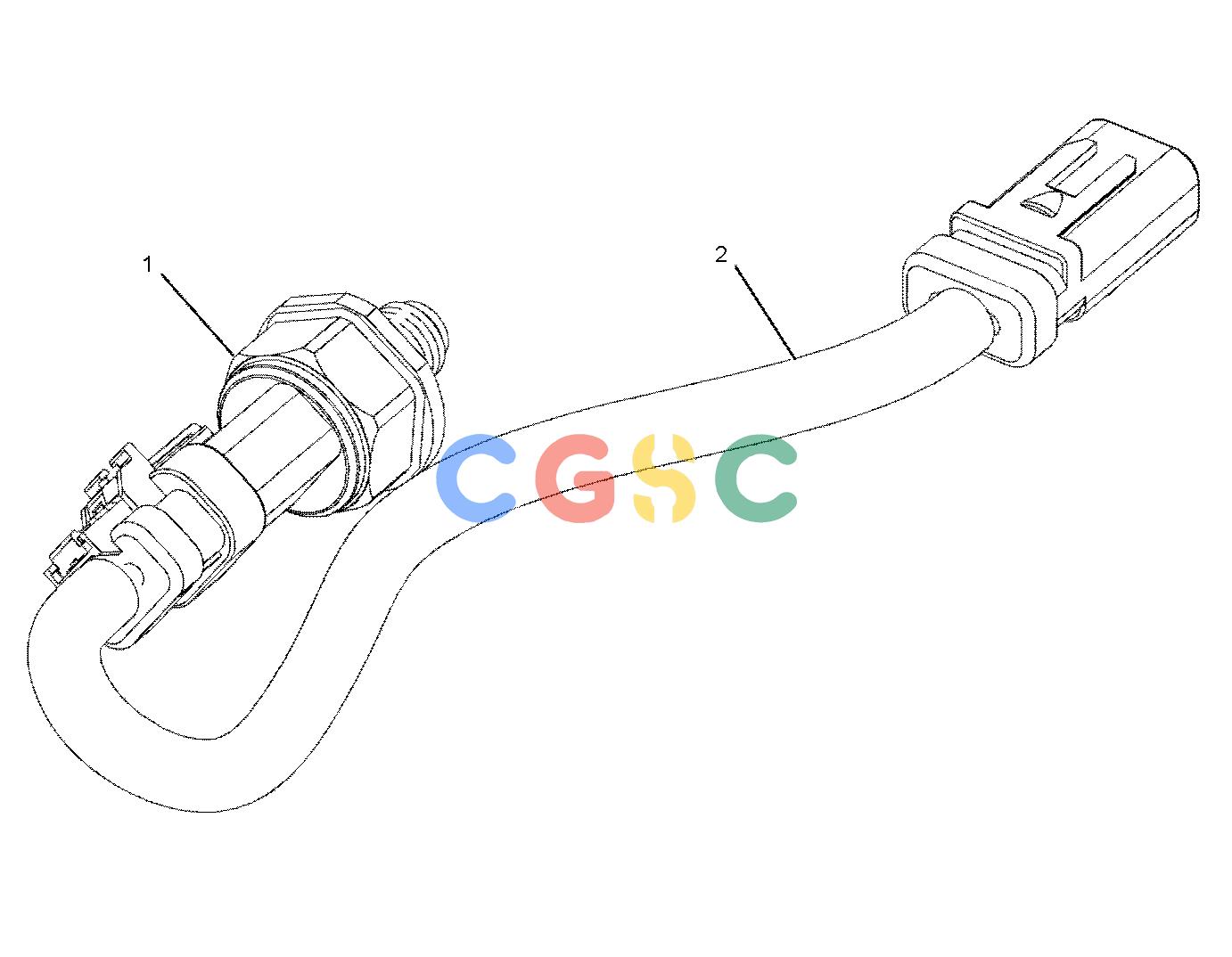

| 1. | 287-1866 | [1] | SENSOR GP-PRESSURE(FUEL RAIL) | |
| 2. | 294-8599 | [1] | HARNESS AS-SENSOR(FUEL RAIL PRESSURE) | |
| 9X-1813E | SLEEVE(23-CM) | |||
| 230-4013 | [1] | PLUG AS-CONNECTOR(3-PIN) | ||
| 264-7030 | [1] | SEAL-CONNECTOR | ||
| 230-4014 | [1] | RECEPTACLE AS-CONNECTOR(3-PIN) | ||
| 9X-3401 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | ||
| -OR- | ||||
| 126-1767 | [3] | PIN-CONNECTOR(14-GA TO 16-GA) | ||
| E | ORDER BY THE CENTIMETER | |||
