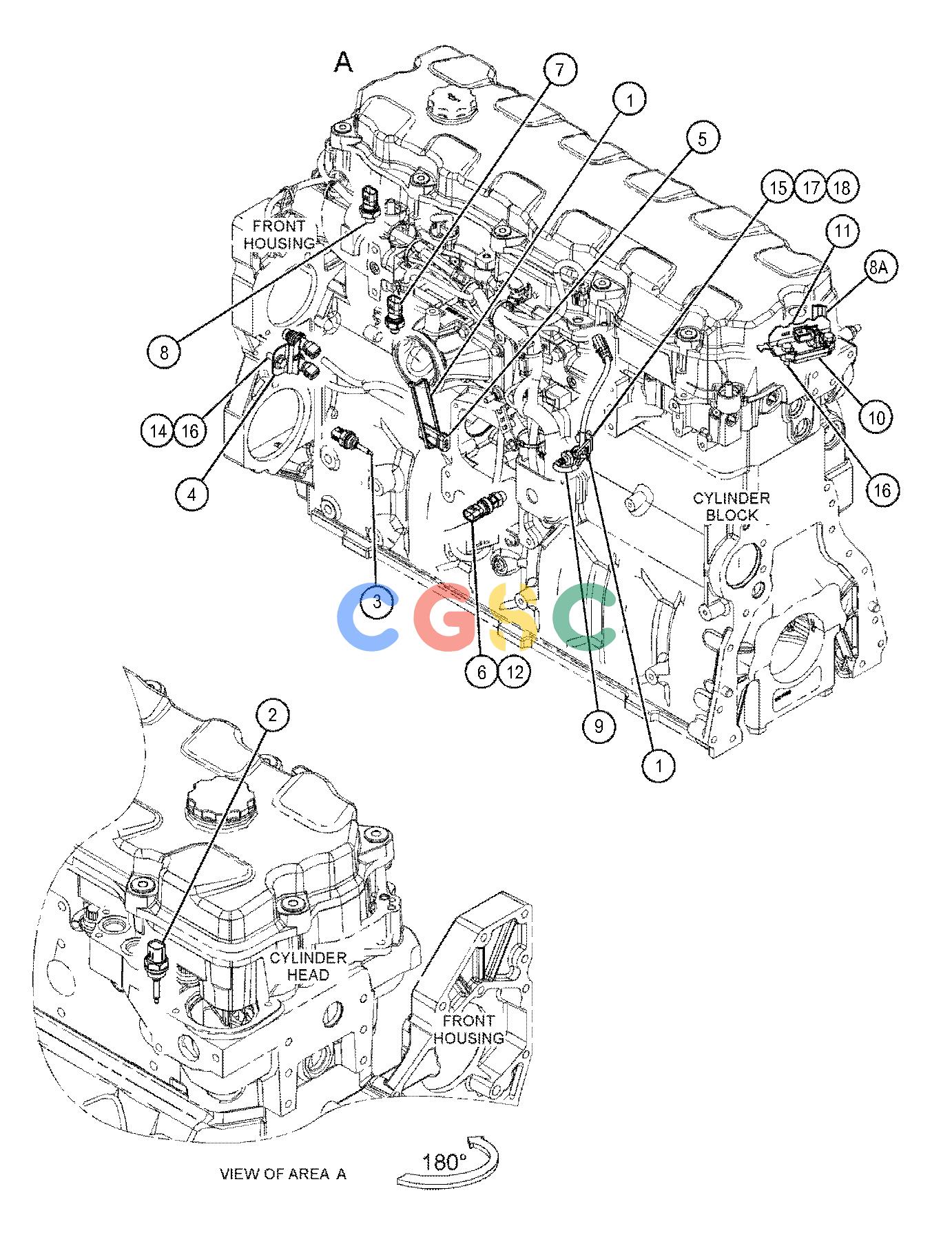

卡特零件查询（725C2） 397-8790: SENSOR GP-ENGINE
广数供应链运营团队, 15 02月, 2025，浏览：
492 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 234-5012Y | [1] | SENSOR GP-TEMPERATURE(COOLANT) | |
| 3. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(CHARGE AIR) | |
| 4. | 236-6221Y | [1] | SENSOR GP-SPEED | |
| 5. | 269-4005 | [1] | RECEPTACLE AS-CONNECTOR | |
| | 8T-8737 | [3] | PLUG-SEAL | |
| | 230-4014 | [1] | RECEPTACLE AS-CONNECTOR(3-PIN) | |
| 6. | 274-6719 | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 7. | 331-1134Y | [1] | SENSOR GP-PRESSURE(ATMOSPHERIC) | |
| 8. | 332-0296Y | [1] | SENSOR GP-PRESSURE | |
| 8A. | 332-0296Y | [1] | SENSOR GP-PRESSURE(NRS ABSOLUTE) | |
| 9. | 339-8822 | [1] | SENSOR AS-TEMPERATURE(NOX REDUCTION SYSTEM) | |
| | 281-8802 | [1] | RECEPTACLE AS-CONNECTOR(2-PIN) | |
| 10. | 385-1173Y | [1] | SENSOR GP-PRESSURE(NRS DIFFERENTIAL) | |
| 11. | 422-4876 | [1] | BRACKET | |
| 12. | 329-5451 | [1] | ADAPTER AS | |
| | 9X-0261 | [1] | ADAPTER | |
| | 214-7566 | [1] | SEAL-O-RING | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 13. | 331-1136 | [1] | ADAPTER AS | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 331-1137 | [1] | ADAPTER | |
| 14. | 3E-4352 | [1] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 15. | 4P-8134 | [1] | CLIP(LADDER) | |
| 16. | 6V-3940M | [3] | BOLT(M8X1.25X25-MM) | |
| 17. | 6V-5215M | [1] | BOLT(M8X1.25X16-MM) | |
| 18. | 9M-1974 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
