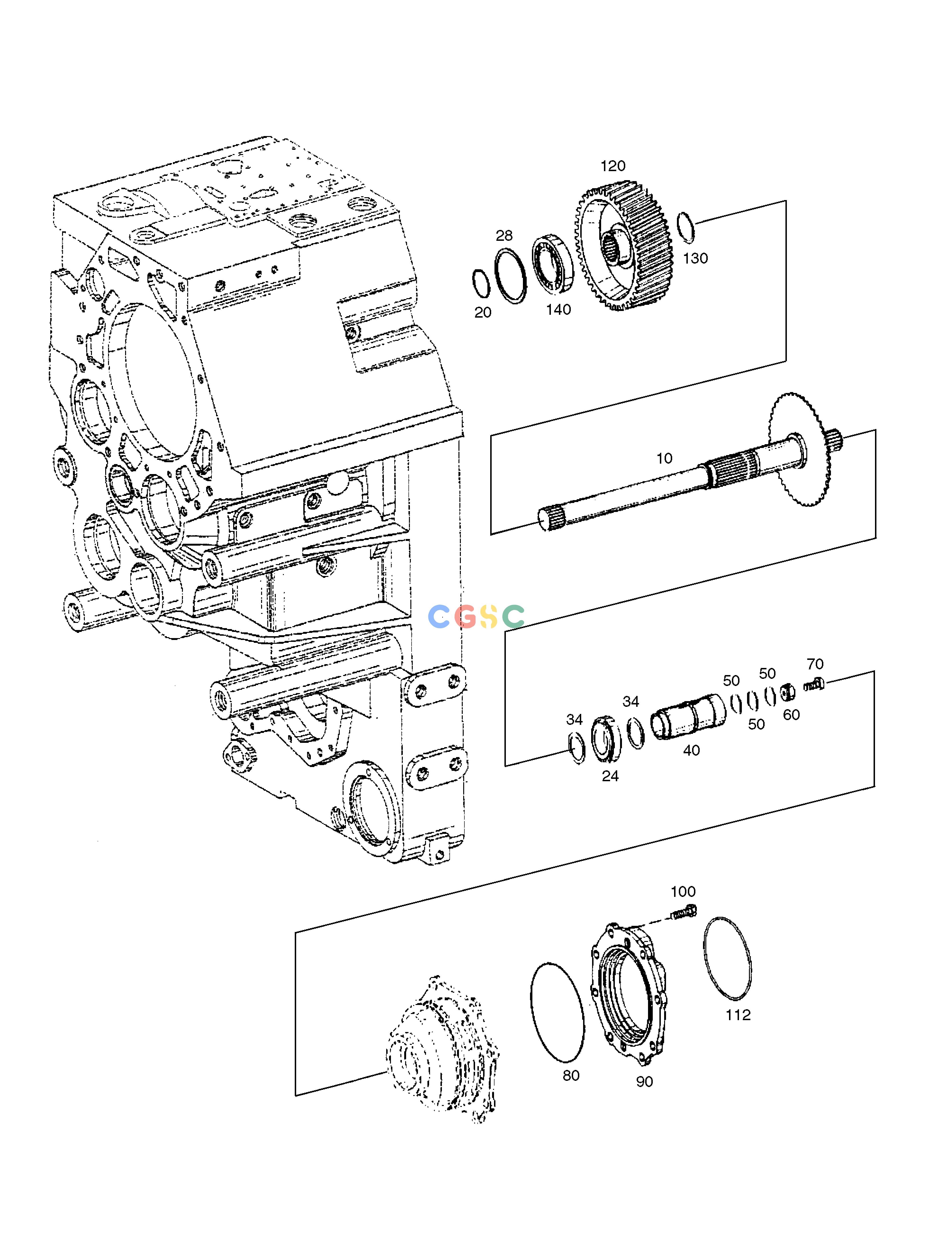

斗山零件查询POWER TAKE - OFF(1) - TRANSMISSION MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
873 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9000142
|
[1] |
POWER TAKE-OFF(1)
|
|
| 10. |
2.405-00215
|
[1] |
SHAFT
|
|
| 100. |
2.120-00599
|
[8] |
SCREW
|
|
| 112. |
2.180-00284
|
[1] |
O-RING
|
|
| 120. |
2.403-00006
|
[1] |
GEAR
|
|
| 130. |
1.115-00030
|
[1] |
RING;RETAINING
|
|
| 140. |
K9000114
|
[1] |
BEARING;ROLLER
|
|
| 20. |
2.115-00245
|
[1] |
RING;PISTON
|
|
| 24. |
2.109-00206
|
[1] |
BEARING;ROLLER
|
|
| 28. |
1.114-00057
|
[1] |
SHIM A=1.95
|
|
| 28. |
1.114-00060
|
[1] |
SHIM A=0.1
|
|
| 28. |
1.114-00061
|
[1] |
SHIM A=0.15
|
|
| 28. |
1.114-00063
|
[1] |
SHIM A=0.25
|
|
| 28. |
1.114-00065
|
[1] |
SHIM A=0.3
|
|
| 28. |
1.114-00066
|
[1] |
SHIM A=0.35
|
|
| 28. |
1.114-00068
|
[1] |
SHIM A=0.65
|
|
| 28. |
1.114-00069
|
[1] |
SHIM A=0.70
|
|
| 28. |
1.114-00070
|
[1] |
SHIM A=0.75
|
|
| 28. |
1.114-00071
|
[1] |
SHIM A=0.85
|
|
| 28. |
1.114-00073
|
[1] |
SHIM A=0.90
|
|
| 28. |
1.114-00074
|
[1] |
SHIM A=0.95
|
|
| 28. |
1.114-00079
|
[1] |
SHIM A=1.05
|
|
| 28. |
1.114-00083
|
[1] |
SHIM A=1.10
|
|
| 28. |
1.114-00085
|
[1] |
SHIM A=1.15
|
|
| 28. |
1.114-00091
|
[1] |
SHIM A=1.25
|
|
| 28. |
1.114-00095
|
[1] |
SHIM A=1.30
|
|
| 28. |
1.114-00097
|
[1] |
SHIM A=1.35
|
|
| 28. |
1.114-00101
|
[1] |
SHIM A=1.4
|
|
| 28. |
1.114-00103
|
[1] |
SHIM A=1.45
|
|
| 28. |
1.114-00108
|
[1] |
SHIM A=1.50
|
|
| 28. |
1.114-00110
|
[1] |
SHIM A=1.55
|
|
| 28. |
1.114-00113
|
[1] |
SHIM A=1.60
|
|
| 28. |
1.114-00114
|
[1] |
SHIM A=1.65
|
|
| 28. |
1.114-00125
|
[1] |
SHIM A=2.00
|
|
| 28. |
1.114-00198
|
[1] |
SHIM A=1.47
|
|
| 28. |
1.114-00202
|
[1] |
SHIM A=1.63
|
|
| 28. |
1.114-00203
|
[1] |
SHIM A=1.70
|
|
| 28. |
1.114-00204
|
[1] |
SHIM A=1.75
|
|
| 28. |
1.114-00207
|
[1] |
SHIM A=1.80
|
|
| 28. |
1.114-00208
|
[1] |
SHIM A=1.85
|
|
| 28. |
1.114-00209
|
[1] |
SHIM A=1.90
|
|
| 28. |
2.114-00571
|
[1] |
SHIM A=0.2
|
|
| 28. |
2.114-00572
|
[1] |
SHIM A=0.4
|
|
| 28. |
2.114-00573
|
[1] |
SHIM A=0.45
|
|
| 28. |
2.114-00574
|
[1] |
SHIM A=0.5
|
|
| 28. |
2.114-00575
|
[1] |
SHIM A=0.55
|
|
| 28. |
2.114-00576
|
[1] |
SHIM A=0.6
|
|
| 28. |
2.114-00577
|
[1] |
SHIM A=0.8
|
|
| 28. |
2.114-00579
|
[1] |
SHIM A=1.0
|
|
| 28. |
2.114-00580
|
[1] |
SHIM A=1.2
|
|
| 34. |
K9000085
|
[1] |
WASHER A=2.0
|
|
| 40. |
2.211-00007
|
[1] |
DRIVER
|
|
| 50. |
2.180-01064
|
[1] |
RING;V
|
|
| 60. |
2.412-00283
|
[1] |
PLATE
|
|
| 70. |
2.120-00551
|
[1] |
SCREW
|
|
| 80. |
2.180-00349
|
[1] |
O-RING
|
|
| 90. |
2.181-00078
|
[1] |
FLANGE;PUMP
|
|
