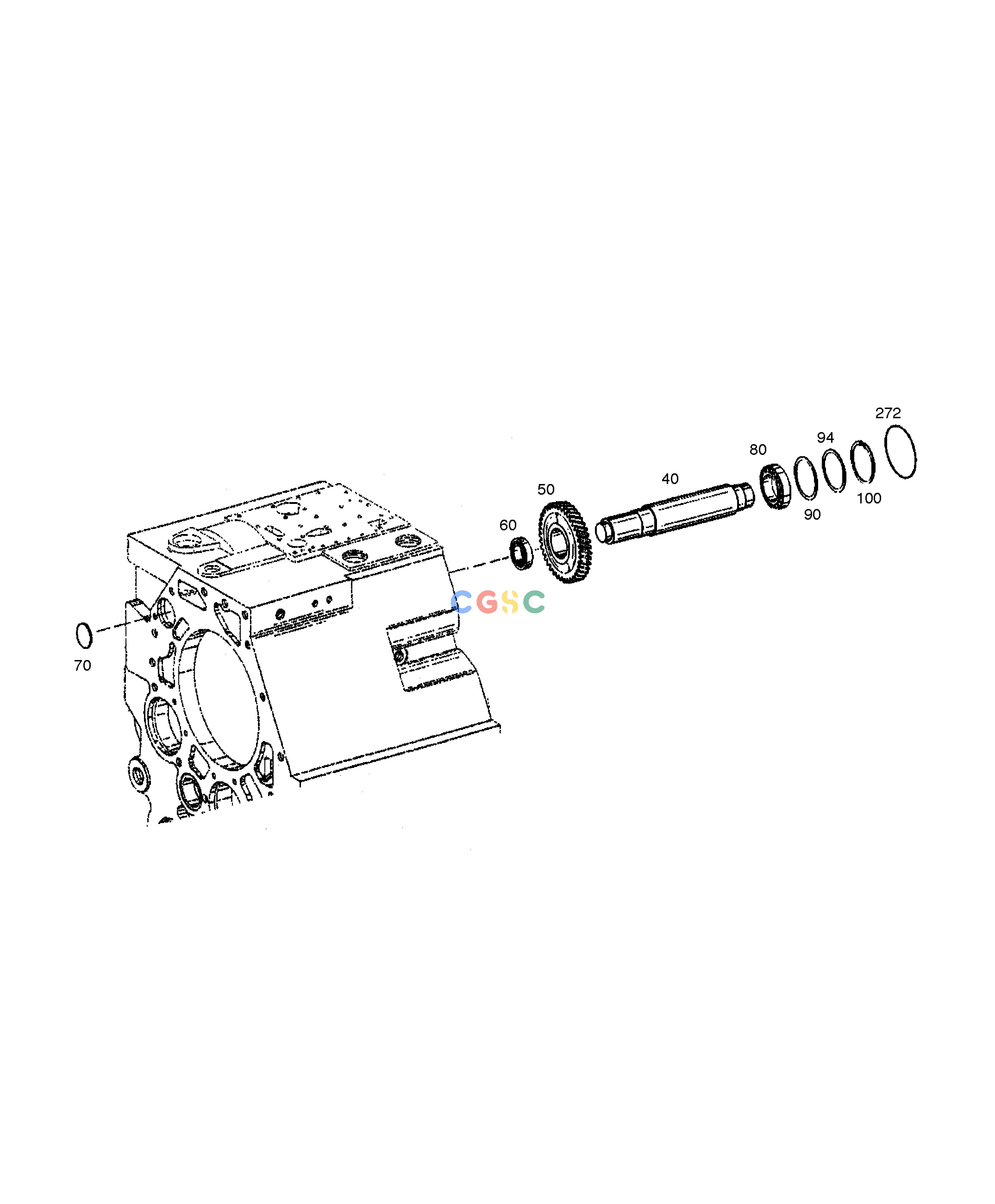

Pos.	Part No	Qty	Parts name
-.	K9000143	[1]	POWER TAKE-OFF(2)
100.	1.115-00019	[1]	RING;RETAINING
272.	2.180-00284	[1]	O-RING
40.	K9000097	[1]	SHAFT
50.	K9000098	[1]	GEAR
60.	2.109-00091	[1]	BEARING;ROLLER
70.	2.415-00026	[1]	ORIFICE
80.	K9000114	[1]	BEARING;ROLLER
90.	1.114-00125	[1]	SHIM A=2.00
94.	1.114-00057	[1]	SHIM A=1.95
94.	1.114-00060	[1]	SHIM A=0.1
94.	1.114-00061	[1]	SHIM A=0.15
94.	1.114-00063	[1]	SHIM A=0.25
94.	1.114-00065	[1]	SHIM A=0.3
94.	1.114-00066	[1]	SHIM A=0.35
94.	1.114-00068	[1]	SHIM A=0.65
94.	1.114-00069	[1]	SHIM A=0.70
94.	1.114-00070	[1]	SHIM A=0.75
94.	1.114-00071	[1]	SHIM A=0.85
94.	1.114-00073	[1]	SHIM A=0.90
94.	1.114-00074	[1]	SHIM A=0.95
94.	1.114-00079	[1]	SHIM A=1.05
94.	1.114-00083	[1]	SHIM A=1.10
94.	1.114-00085	[1]	SHIM A=1.15
94.	1.114-00091	[1]	SHIM A=1.25
94.	1.114-00095	[1]	SHIM A=1.30
94.	1.114-00097	[1]	SHIM A=1.35
94.	1.114-00101	[1]	SHIM A=1.4
94.	1.114-00103	[1]	SHIM A=1.45
94.	1.114-00108	[1]	SHIM A=1.50
94.	1.114-00110	[1]	SHIM A=1.55
94.	1.114-00113	[1]	SHIM A=1.60
94.	1.114-00114	[1]	SHIM A=1.65
94.	1.114-00125	[1]	SHIM A=2.00
94.	1.114-00198	[1]	SHIM A=1.47
94.	1.114-00202	[1]	SHIM A=1.63
94.	1.114-00203	[1]	SHIM A=1.70
94.	1.114-00204	[1]	SHIM A=1.75
94.	1.114-00207	[1]	SHIM A=1.80
94.	1.114-00208	[1]	SHIM A=1.85
94.	1.114-00209	[1]	SHIM A=1.90
94.	2.114-00571	[1]	SHIM A=0.2
94.	2.114-00572	[1]	SHIM A=0.4
94.	2.114-00573	[1]	SHIM A=0.45
94.	2.114-00574	[1]	SHIM A=0.5
94.	2.114-00575	[1]	SHIM A=0.55
94.	2.114-00576	[1]	SHIM A=0.6
94.	2.114-00577	[1]	SHIM A=0.8
94.	2.114-00579	[1]	SHIM A=1.0
94.	2.114-00580	[1]	SHIM A=1.2
