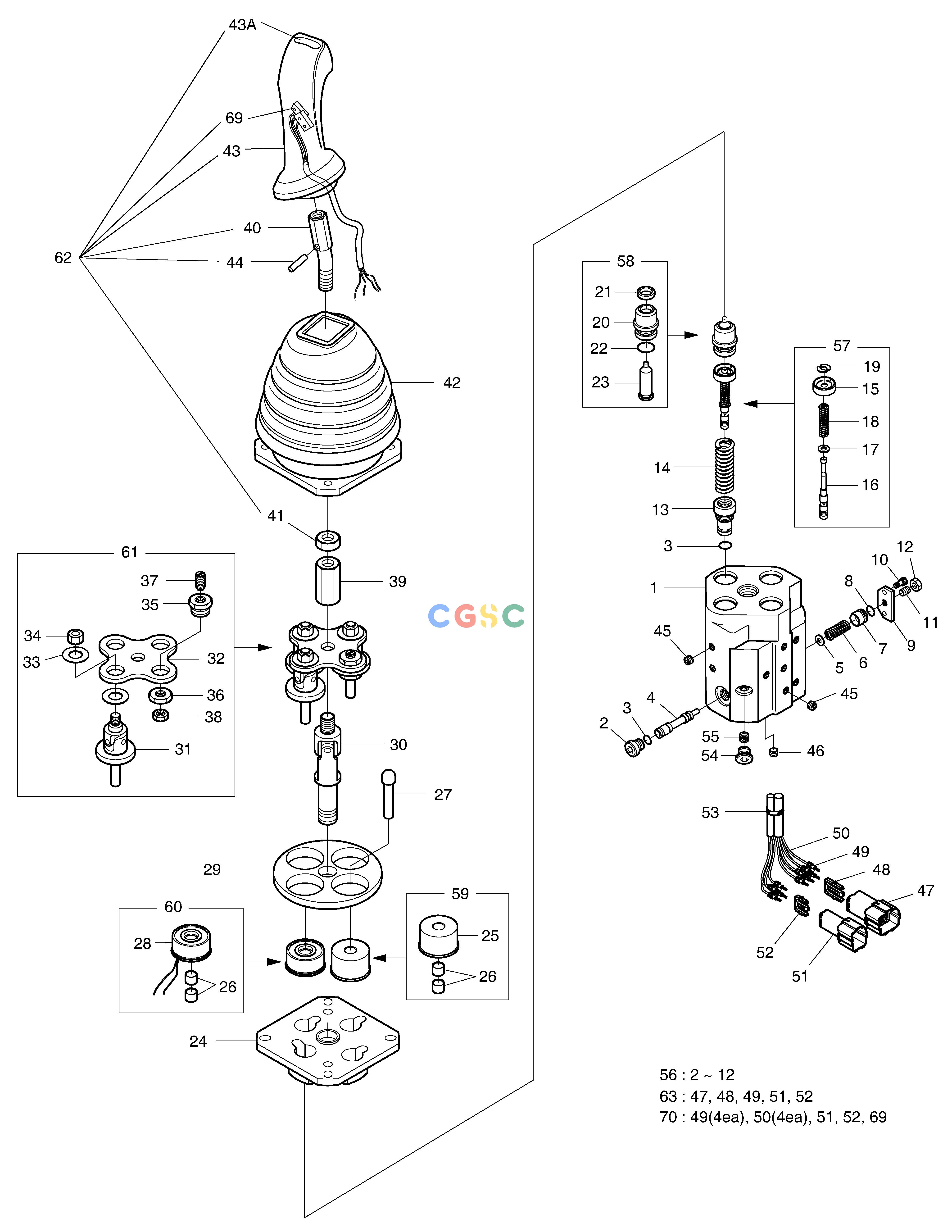

斗山零件查询REMOTE CONTROL VALVE - 2SPOOL MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
520 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
426-00104
|
[1] |
VALVE;REMOCON
|
|
| 1. |
NA00079
|
[1] |
BODY
|
|
| 10. |
NA00178
|
[2] |
|
|
| 11. |
NA01071
|
[1] |
. SCREW;SET
|
|
| 12. |
NA00609
|
[1] |
.
|
|
| 13. |
181-00471
|
[4] |
PLUG
|
|
| 14. |
1.131-00014
|
[4] |
|
|
| 15. |
NA01111
|
[4] |
. SEAT;SPRING
|
|
| 16. |
NA01161
|
[4] |
. SPOOL
|
|
| 17. |
NA01111
|
[4] |
. SEAT;SPRING
|
|
| 18. |
NA01182
|
[4] |
. SPRING
|
|
| 19. |
NA01233
|
[4] |
. STOPPER
|
|
| 2. |
NA00843
|
[1] |
PLUG
|
|
| 20. |
NA00843
|
[4] |
PLUG
|
|
| 21. |
NA01097
|
[4] |
. SEAL;ROD
|
|
| 22. |
NA00643
|
[4] |
. O-RING
|
|
| 23. |
NA01013
|
[4] |
ROD;PUSH
|
|
| 24. |
1.412-00001
|
[1] |
PLATE
|
|
| 25. |
NA01242
|
[1] |
|
|
| 26. |
NA00266
|
[8] |
|
|
| 27. |
1.428-00001
|
[1] |
ROD
|
|
| 28. |
NA00595
|
[3] |
AIMANT
|
|
| 29. |
1.412-00002
|
[1] |
PLATE
|
|
| 3. |
S8000081
|
[5] |
O-RING
|
|
| 30. |
1.138-00003
|
[1] |
JOINT ASS'Y
|
|
| 31. |
NA00566
|
[3] |
FLANGE
|
|
| 32. |
NA00816
|
[1] |
PLATE
|
|
| 33. |
NA01315
|
[3] |
RONDELLE
|
|
| 34. |
NA00618
|
[3] |
|
|
| 35. |
NA00843
|
[1] |
PLUG
|
|
| 36. |
NA00609
|
[1] |
.
|
|
| 37. |
NA01048
|
[1] |
|
|
| 38. |
NA00618
|
[1] |
|
|
| 39. |
1.121-00001
|
[1] |
NUT
|
|
| 4. |
NA01161
|
[1] |
. SPOOL
|
|
| 40. |
NA00379
|
[1] |
BIELLE
|
|
| 41. |
NA00612
|
[1] |
|
|
| 42. |
1.160-00003
|
[1] |
BOOT
|
|
| 43. |
NA00505
|
[1] |
POIGNEE
|
|
| 43A. |
1.161-00021
|
[1] |
CAP;PEANUT
|
|
| 44. |
NA00779
|
[1] |
BALL
|
|
| 45. |
181-00318
|
[11] |
BOLT;SOCKER
|
|
| 46. |
1.188-00001
|
[2] |
EXPAND
|
|
| 47. |
NA00528
|
[1] |
CARTER
|
|
| 48. |
NA00519
|
[1] |
|
|
| 49. |
NA01264
|
[10] |
TERMINAL
|
|
| 5. |
NA01111
|
[1] |
. SEAT;SPRING
|
|
| 50. |
NA01106
|
[10] |
|
|
| 51. |
NA00528
|
[1] |
CARTER
|
|
| 52. |
NA00519
|
[1] |
|
|
| 53. |
NA00366
|
[2] |
|
|
| 54. |
2181-1116D1
|
[1] |
PLUG
|
|
| 55. |
1.415-00002
|
[1] |
|
|
| 56. |
1.424-00034
|
[1] |
|
|
| 57. |
1.424-00049
|
[1] |
MAIN SPOOL KIT
|
|
| 58. |
1.181-00084
|
[1] |
PLUG KIT
|
|
| 59. |
1.416-00016
|
[1] |
STOPPER KIT
|
|
| 6. |
NA01182
|
[1] |
. SPRING
|
|
| 60. |
1.424-00010
|
[1] |
MAGNET KIT
|
|
| 61. |
1.412-00028
|
[1] |
PLATE KIT
|
|
| 62. |
1.172-00008
|
[1] |
HANDLE KIT
|
|
| 63. |
530-00388
|
[1] |
HARNESS KIT
|
|
| 69. |
NA01259
|
[2] |
|
|
| 7. |
NA01111
|
[1] |
. SEAT;SPRING
|
|
| 70. |
K9001001
|
[1] |
SWITCH ASS'Y
|
|
| 8. |
NA00643
|
[1] |
. O-RING
|
|
| 9. |
NA00816
|
[1] |
PLATE
|
|
