斗山零件查询REMOTE CONTROL VALVE - FNR MEGA 400-V (CHINA) Doosan parts catalog online

广数供应链运营团队, 15 02月, 2025，浏览： 716 次

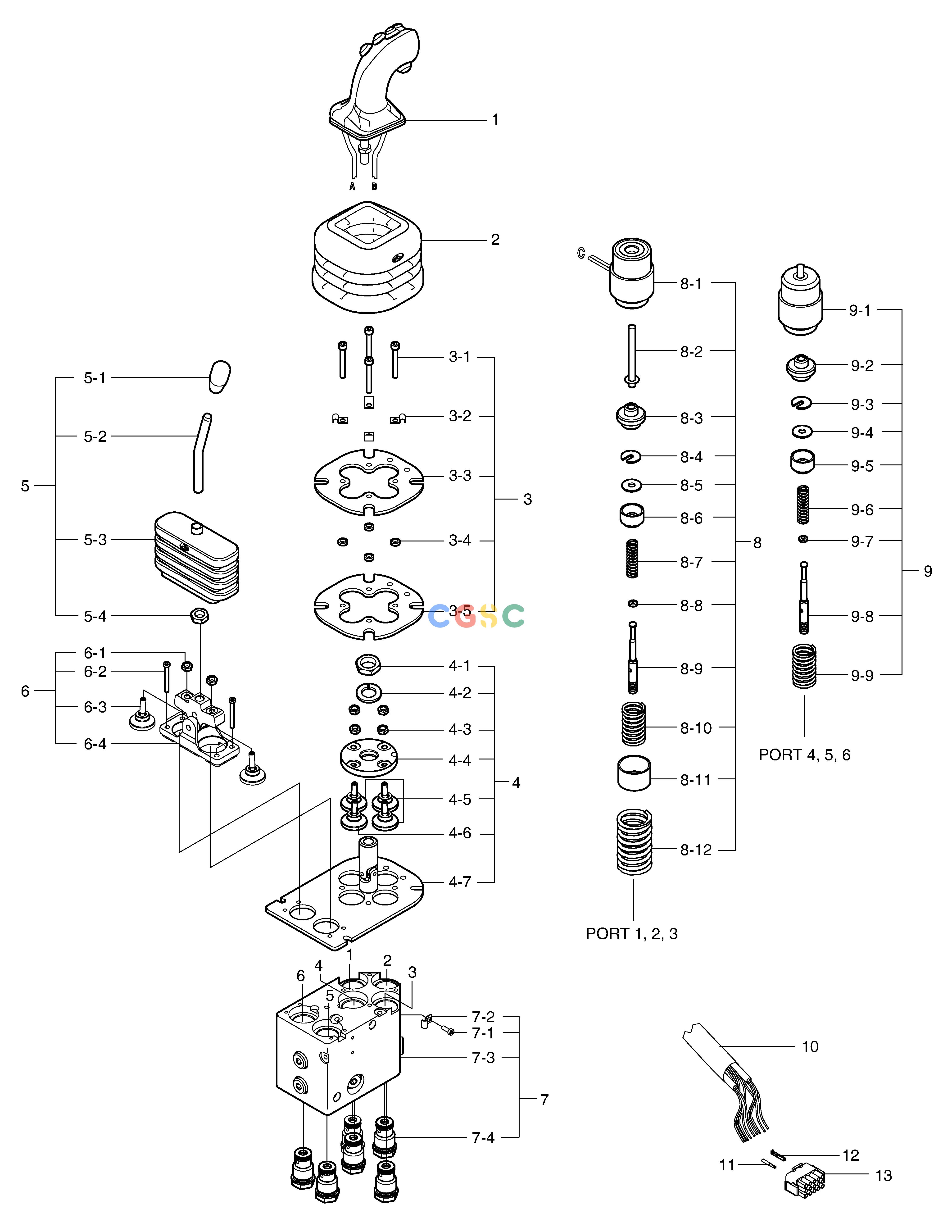

Pos.	Part No	Qty	Parts name
-.	426-00240	[1]	REMOCON VALVE-FNR
1.	2.301-00001	[1]	HANDLE
10.	2.308-00001	[1]	TUBE
11.	2.550-00001	[1]	PIN;KEYING
12.	2.550-00002	[13]	TERMINAL
13.	2.521-00009	[1]	CONNECTOR
2.	2.160-00021	[1]	BELLOWS;RUBBER
3.	2.195-00048	[1]	PLATE 1 KIT
3-1.	NA01045	[4]
3-2.	NA00365	[4]	CLIP
3-3.	NA00456	[1]	FLANGE
3-4.	NA01153	[4]	SPACER
3-5.	NA00456	[1]	FLANGE
4.	2.353-00001	[1]	PLATE 2 KIT
4-1.	NA00614	[1]
4-2.	NA01319	[1]
4-3.	NA00615	[4]
4-4.	NA00977	[1]
4-5.	NA00758	[3]
4-6.	NA00758	[1]
4-7.	NA00456	[1]	FLANGE
5.	2.357-00047	[1]	LEVER KIT;2ND
5-1.	NA00577	[1]	BOUTON
5-2.	NA01007	[1]
5-3.	NA00067	[1]
5-4.	NA00611	[1]
6.	2.360-00001	[1]	SPOOL KIT
6-1.	NA00615	[2]
6-2.	NA01042	[2]
6-3.	NA00759	[2]
6-4.	NA00599	[1]
7.	2.423-00141	[1]	BODY KIT
7-1.	NA01042	[1]
7-2.	NA00365	[1]	CLIP
7-3.	NA00079	[1]	BODY
7-4.	NA00565	[6]
8.	2.424-00377	[3]	PLUNGER 1 KIT
8-1.	NA01152	[1]
8-10.	NA01216	[1]	SPRING,RETURN
8-11.	NA00263	[1]	BUSHING
8-12.	NA01214	[1]
8-2.	NA00892	[1]
8-3.	NA00929	[1]	RING
8-4.	NA00970	[3]
8-5.	NA00929	[1]	RING
8-6.	NA00503	[1]	BALL
8-7.	NA01215	[1]
8-8.	NA00979	[1]
8-9.	NA00996	[1]	. ROD
9.	2.424-00378	[3]	PLUNGER 2 KIT
9-1.	NA00264	[1]
9-2.	NA00929	[1]	RING
9-3.	NA00970	[1]
9-4.	NA00929	[1]	RING
9-5.	NA00503	[1]	BALL
9-6.	NA01215	[1]
9-7.	NA00979	[1]
9-8.	NA00996	[1]	. ROD
9-9.	NA01216	[1]	SPRING,RETURN
