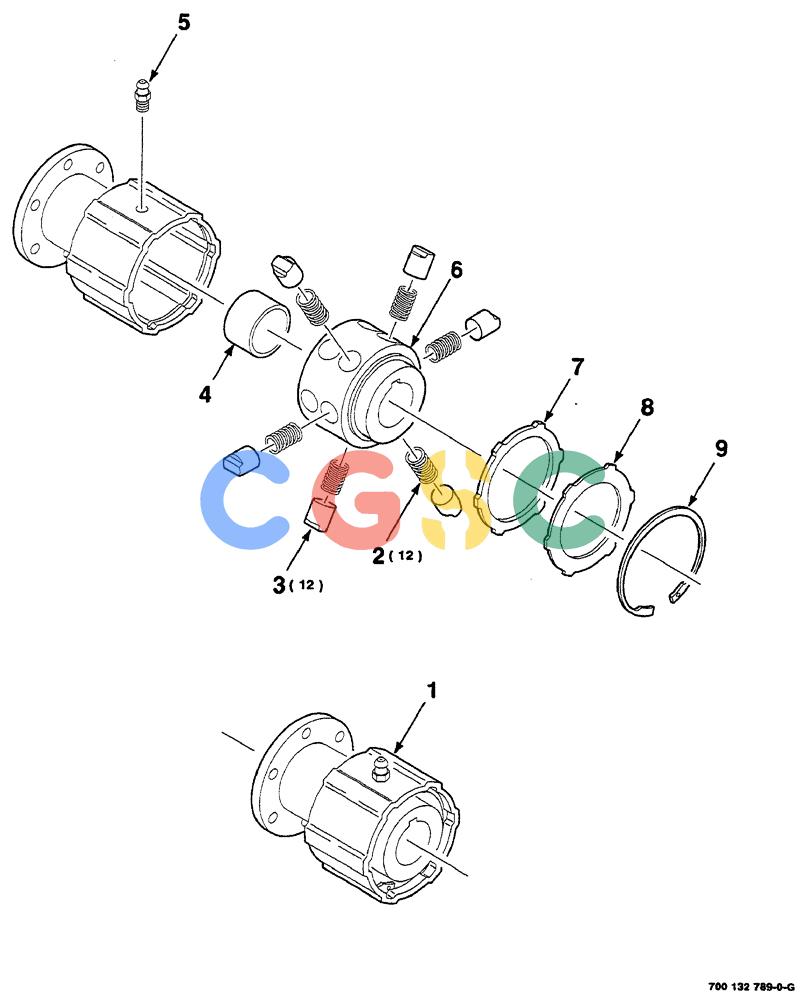

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (2-014) - RATCHET CLUTCH ASSEMBLY, 700132789 COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
911 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700132789
|
[1] |
CLUTCH
|
HFI
ASSY. ratchet
|
| 2. |
700715840
|
[12] |
SPRING
|
CAS
compression
|
| 3. |
700715841
|
[12] |
RATCHET
|
CAS
Superseded by part number: 84455965
|
| 4. |
805580
|
[1] |
BRONZE BUSHING
|
IH
BRONZE BUSH
|
| 5. |
321204
|
[1] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 6. |
700715837
|
[1] |
HUB
|
CAS
clutch, radial, pin
|
| 7. |
700715843
|
[1] |
RING
|
CAS
wear Superseded by part number: 700723352
|
| 8. |
700715844
|
[1] |
SEALING RING
|
CAS
Superseded by part number: 700723352
|
| 9. |
700708775
|
[1] |
SNAP RING
|
CAS
Superseded by part number: 11062076
|
