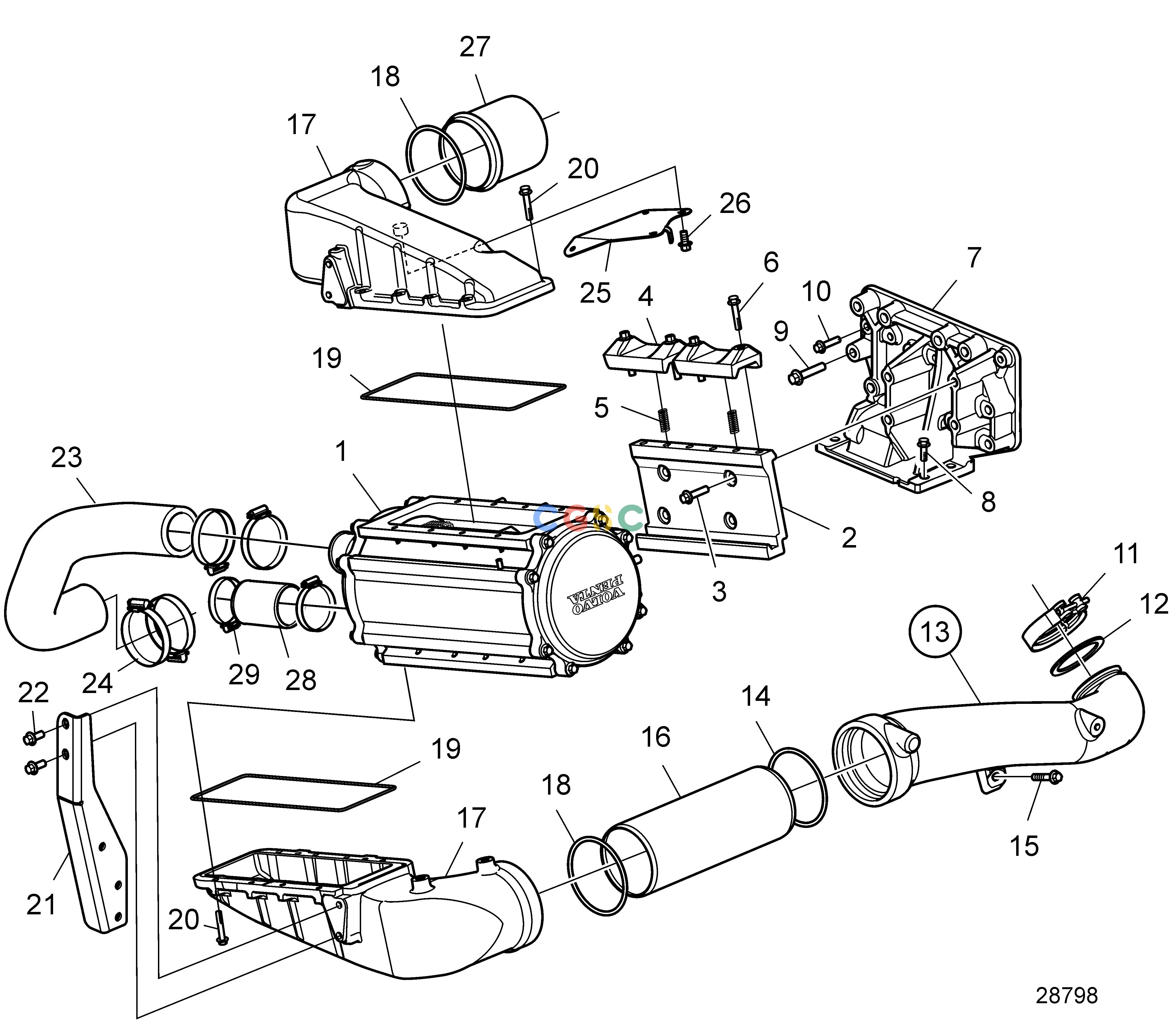

沃尔沃零件查询D8A1-A MP; D8A2-A MPCooling SystemCharge Air CoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
731 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22497596
|
[1] |
Charge air cooler
|
Replaced by 23025189
|
| 1. |
23025189
|
[1] |
Charge air cooler
|
|
| 2. |
21889243
|
[1] |
Flange
|
|
| 3. |
984756
|
[4] |
Flange screw
|
|
| 4. |
21814240
|
[2] |
Lock brace
|
|
| 5. |
21930447
|
[2] |
Compression spring
|
|
| 6. |
984739
|
[4] |
Flange screw
|
|
| 7. |
22099522
|
[1] |
Bracket
|
|
| 8. |
984754
|
[4] |
Flange screw
|
|
| 9. |
984757
|
[3] |
Flange screw
|
|
| 10. |
984737
|
[5] |
Flange screw
|
|
| 11. |
20592787
|
[1] |
Hose clamp
|
|
| 12. |
1542781
|
[1] |
Sealing ring
|
|
| 13. |
22574528
|
[1] |
Connecting pipe
|
|
| 14. |
60110416
|
[1] |
O-ring
|
|
| 15. |
984738
|
[1] |
Flange screw
|
|
| 16. |
22820440
|
[1] |
Pipe
|
|
| 17. |
22820444
|
[2] |
Pipe
|
|
| 18. |
60110416
|
[2] |
O-ring
|
|
| 19. |
60112019
|
[2] |
O-ring
|
|
| 20. |
984737
|
[16] |
Flange screw
|
|
| 21. |
22128954
|
[1] |
Bracket
|
|
| 22. |
984734
|
[2] |
Flange screw
|
|
| 23. |
21620415
|
[1] |
Hose
|
|
| 24. |
961673
|
[4] |
Hose clamp
|
|
| 25. |
22865270
|
[1] |
Bracket
|
|
| 26. |
984733
|
[2] |
Flange screw
|
|
| 27. |
22820437
|
[1] |
Pipe
|
|
| 28. |
22201411
|
[1] |
Hose
|
|
| 29. |
961672
|
[2] |
Hose clamp
|
|
