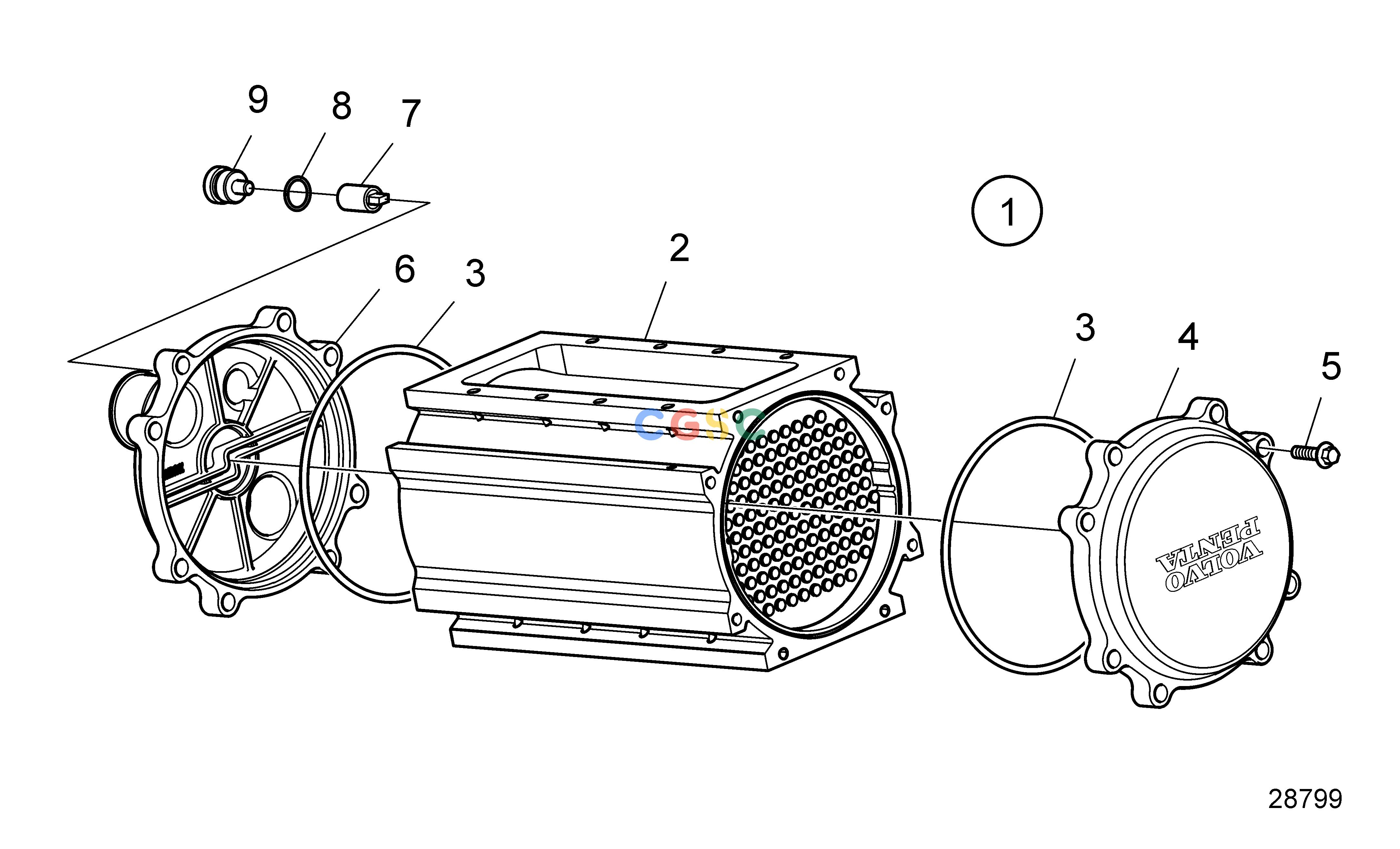

沃尔沃零件查询D8A1-A MP; D8A2-A MPCooling SystemCharge Air Cooler ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
873 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22497596
|
[1] |
Charge air cooler
|
Replaced by 23025189
|
| 1. |
23025189
|
[1] |
Charge air cooler
|
|
| 2. |
22082802
|
[1] |
Housing
|
|
| 3. |
22028521
|
[2] |
Gasket
|
Replaced by 23024431
|
| 3. |
23024431
|
[2] |
O-ring
|
|
| 4. |
22028515
|
[1] |
Cover
|
Replaced by 23025182
|
| 4. |
23025182
|
[1] |
Cover
|
|
| 5. |
23024753
|
[16] |
Flange screw
|
|
| 6. |
22028513
|
[1] |
Cover
|
Replaced by 23025181
|
| 6. |
23025181
|
[1] |
Cover
|
|
| 7. |
838929
|
[1] |
Anode
|
|
| 8. |
22695676
|
[1] |
O-ring
|
|
| 9. |
22011417
|
[1] |
Plug
|
|
