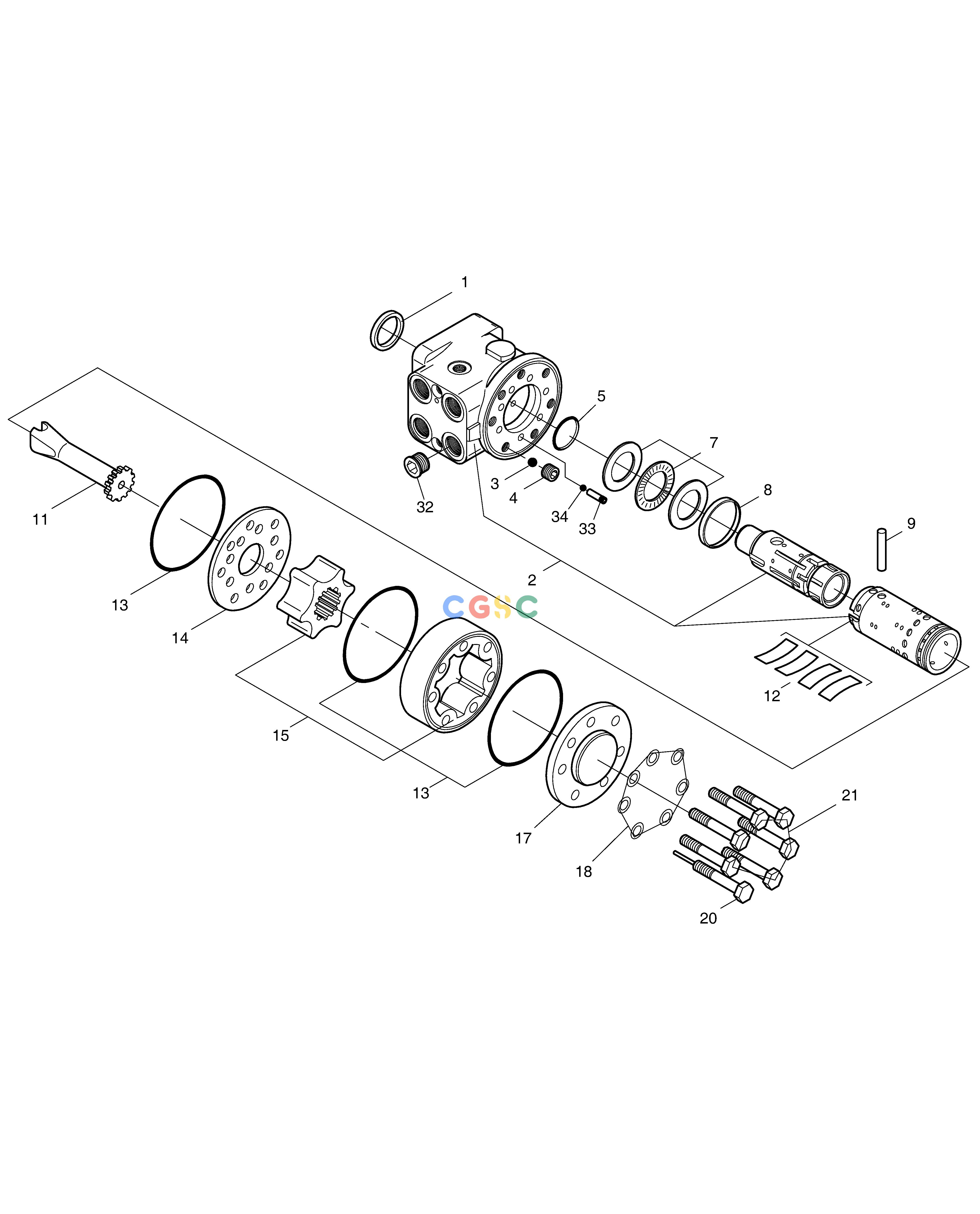

斗山零件查询STEERING UNIT MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
154 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
150N4042
|
[1] |
SPARE KIT
|
|
| -. |
4420-9470A
|
[1] |
STEERING UNIT
|
|
| 1. |
633B9002
|
[1] |
RING;DUST SEAL
|
|
| 11. |
150-0844
|
[1] |
SHAFT;CARDON
|
|
| 12. |
150-4265
|
[1] |
SET OF SPRINGS
|
|
| 13. |
633B0432
|
[3] |
O-RING
|
|
| 14. |
150N0610
|
[1] |
PLATE;DISTRIBUTOR
|
|
| 15. |
150-4186
|
[1] |
GEARWHEEL SET
|
|
| 17. |
150-0328
|
[1] |
COVER;END
|
|
| 18. |
684X0115
|
[7] |
WASHER
|
|
| 2. |
NA00530
|
[1] |
|
|
| 20. |
150-0324
|
[1] |
SCREW WITH PIN
|
|
| 21. |
681X1581
|
[6] |
SCREW
|
|
| 3. |
689X1031
|
[1] |
BALL
|
|
| 32. |
150N4093
|
[1] |
VALVE;CHECK
|
|
| 33. |
150-1606
|
[1] |
SCREW
|
|
| 34. |
NA00018
|
[1] |
BALL
|
|
| 4. |
150-0304
|
[1] |
BUSHING;THREAD
|
|
| 5. |
150N4014
|
[1] |
O-RING
|
|
| 7. |
150-4262
|
[1] |
BEARING ASS'Y
|
|
| 8. |
150-0310
|
[1] |
RING
|
|
| 9. |
150-0305
|
[1] |
PIN;CROSS
|
|
