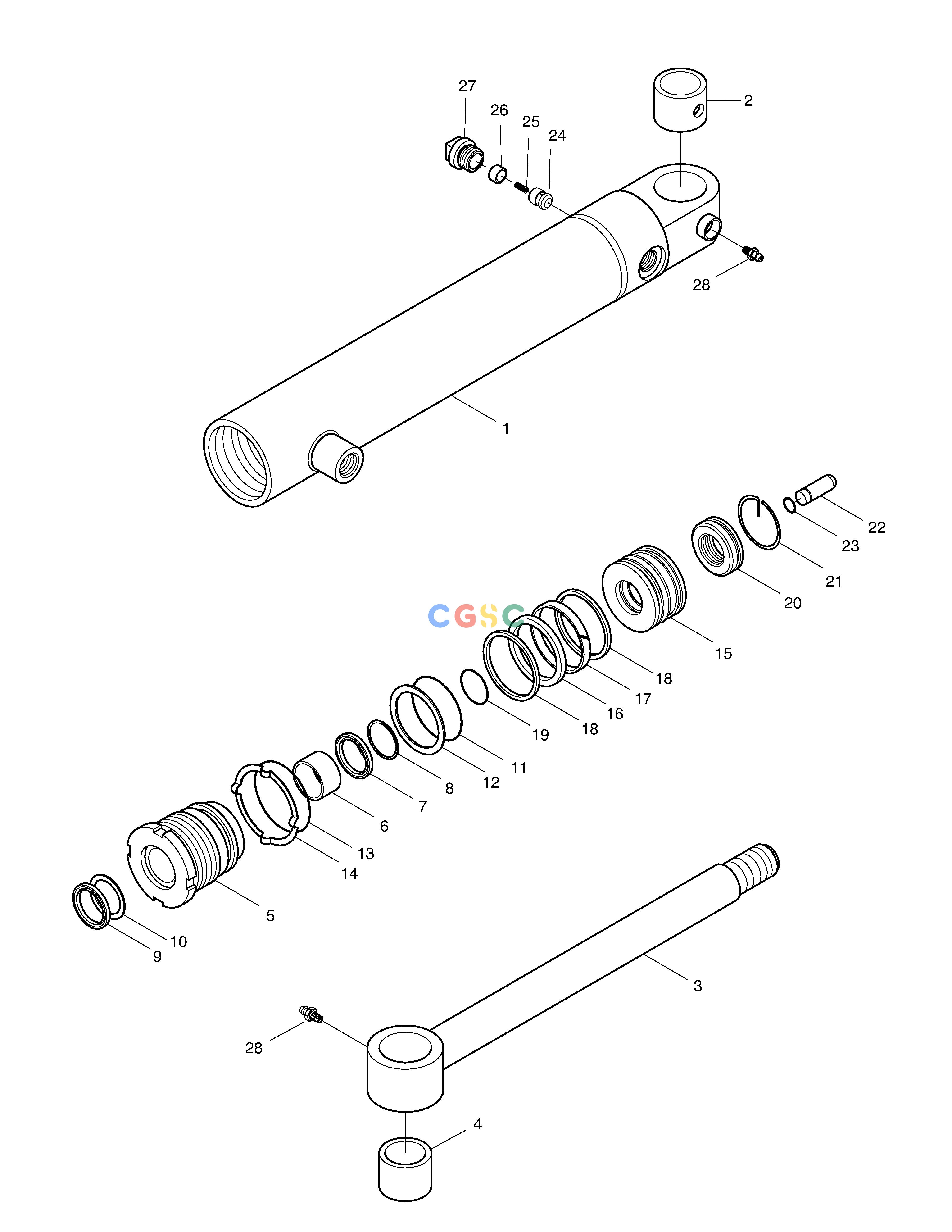

斗山零件查询STEERING CYLINDER MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
285 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
440-00139KT
|
[1] |
SEAL KIT
|
|
| -. |
440-00139
|
[2] |
CYLINDER;STEER
|
|
| 1. |
1.441-00053
|
[1] |
|
|
| 10. |
1.115-00022
|
[1] |
RING;RETAINING
|
|
| 11. |
S8010951
|
[1] |
O-RING
|
|
| 12. |
1.180-00299
|
[1] |
RING;BACK UP
|
|
| 13. |
S8011001
|
[1] |
. O-RING
|
|
| 14. |
03B658-0
|
[1] |
WASHER
|
|
| 15. |
1.409-00047
|
[1] |
|
|
| 16. |
1.180-00346
|
[1] |
RING;GLYD
|
|
| 17. |
K9001372
|
[1] |
RING;WEAR
|
|
| 18. |
115-00101
|
[2] |
RING;DUST
|
|
| 19. |
S8010501
|
[1] |
O-RING 1BG-50
|
|
| 2. |
1.110-00007
|
[1] |
|
|
| 20. |
1.121-00002
|
[1] |
|
|
| 21. |
1.115-00234
|
[1] |
|
|
| 22. |
1.424-00007
|
[1] |
PLUNGER;CUSHION
|
|
| 23. |
1.115-00364
|
[1] |
RING;STOP
|
|
| 24. |
1.420-00039
|
[1] |
VALVE;CHECK
|
|
| 25. |
1.131-00009
|
[1] |
SPRING
|
|
| 26. |
1.195-00022
|
[1] |
SUPPORT;SPRING
|
|
| 27. |
2181-1116D3
|
[1] |
PLUG;HEX. SOCKET
|
|
| 28. |
S6710032
|
[3] |
NIPPLE;GREASE
|
|
| 3. |
1.428-00048
|
[1] |
|
|
| 4. |
110-00146
|
[1] |
|
|
| 5. |
1.430-00097
|
[1] |
|
|
| 6. |
2110-1184D86
|
[1] |
DU-BUSH
|
|
| 7. |
1.180-00188
|
[1] |
PACKING;U
|
|
| 8. |
1.180-00227
|
[1] |
RING BACK UP
|
|
| 9. |
1.180-00480
|
[1] |
WIPER;DUST
|
|
