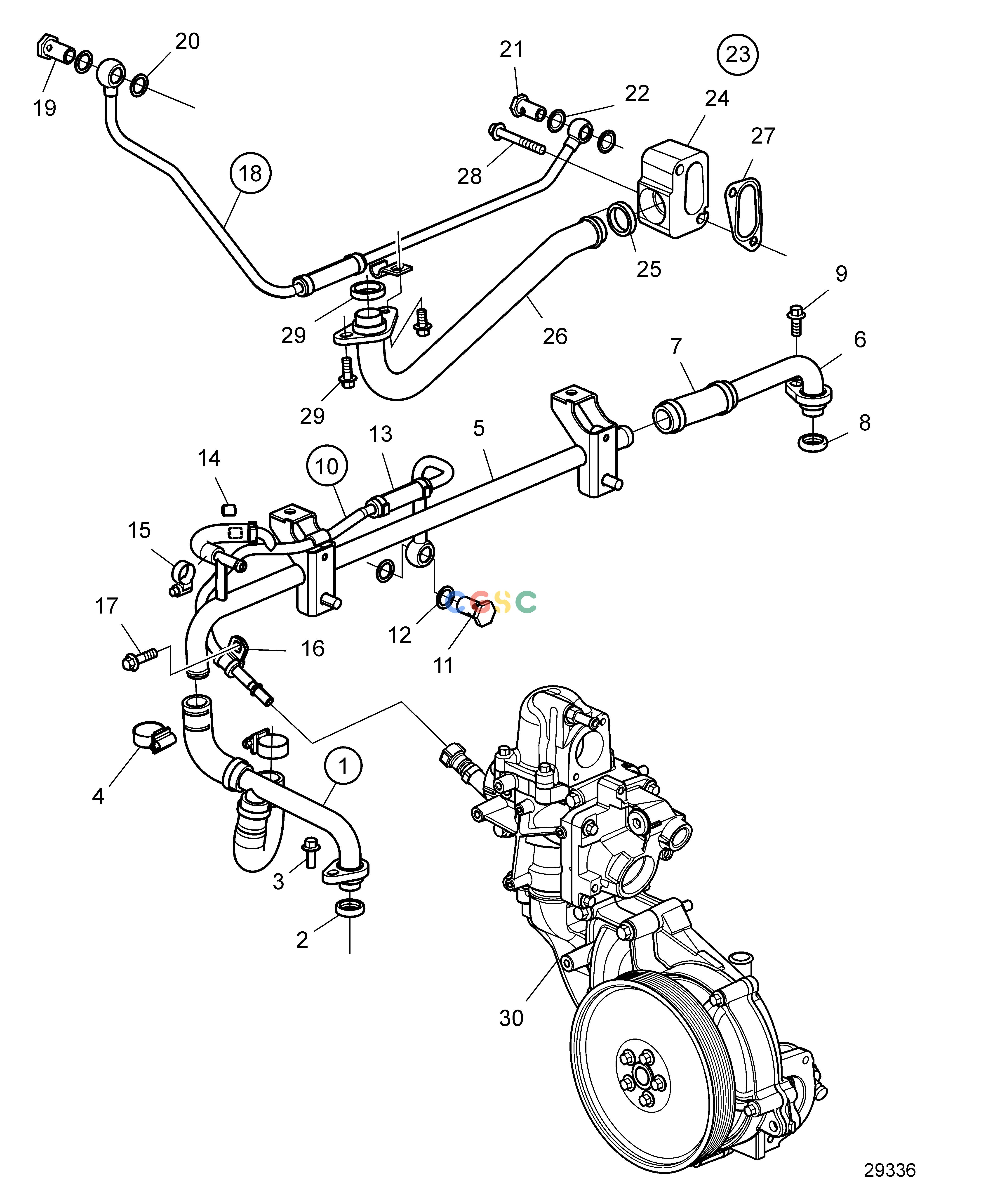

沃尔沃零件查询D8A1-A MP; D8A2-A MPCooling SystemCooling SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
241 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22763183
|
[1] |
Water pipe
|
|
| 2. |
22243641
|
[1] |
Sealing ring
|
|
| 3. |
984734
|
[1] |
Flange screw
|
|
| 4. |
961667
|
[2] |
Hose clamp
|
|
| 5. |
22764016
|
[1] |
Water pipe
|
|
| 6. |
22390739
|
[1] |
Water pipe
|
|
| 7. |
943369
|
[1] |
Rubber hose
|
|
| 8. |
22243641
|
[1] |
Sealing ring
|
|
| 9. |
984734
|
[1] |
Flange screw
|
|
| 10. |
22757099
|
[1] |
Water pipe
|
|
| 11. |
941686
|
[1] |
Hollow screw
|
|
| 12. |
11996
|
[2] |
Gasket
|
|
| 13. |
990536
|
[1] |
Rubber hose
|
|
| 14. |
11033572
|
[1] |
Reduction nipple
|
|
| 15. |
994556
|
[1] |
Hose clamp
|
|
| 16. |
975269
|
[1] |
Hose clamp
|
|
| 17. |
984736
|
[1] |
Flange screw
|
|
| 18. |
22817749
|
[1] |
Water pipe
|
|
| 19. |
941686
|
[1] |
Hollow screw
|
|
| 20. |
11996
|
[2] |
Gasket
|
|
| 21. |
991048
|
[1] |
Hollow screw
|
|
| 22. |
20852764
|
[2] |
Sealing ring
|
|
| 23. |
22913185
|
[1] |
Water pipe
|
|
| 24. |
21674863
|
[1] |
Pipe connection
|
|
| 25. |
471637
|
[2] |
Sealing ring
|
|
| 26. |
22282972
|
[1] |
Water pipe
|
|
| 27. |
22443099
|
[1] |
Gasket
|
|
| 28. |
984740
|
[2] |
Flange screw
|
|
| 29. |
984733
|
[2] |
Flange screw
|
|
| 30. |
21931911
|
[1] |
Coolant pump
|
|
