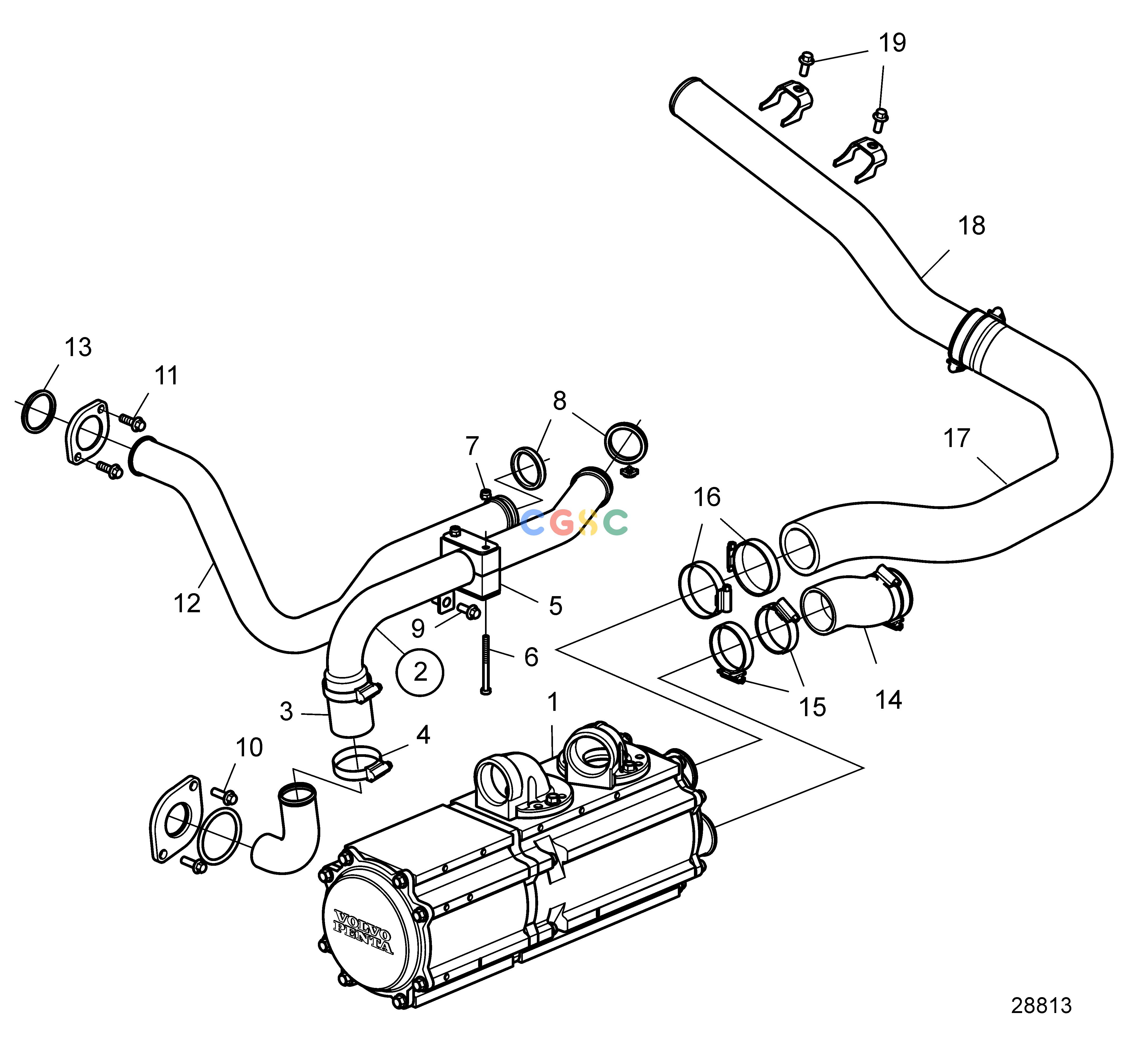

沃尔沃零件查询D8A1-A MP; D8A2-A MPCooling SystemHeat Exchanger / Oil coolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
517 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22497537
|
[1] |
Heat exchanger
|
|
| 2. |
22714654
|
[1] |
Coolant pipe
|
Replaced by 23002909
|
| 2. |
23002909
|
[1] |
Pipe
|
|
| 3. |
858471
|
[1] |
Hose
|
|
| 4. |
994559
|
[2] |
Hose clamp
|
|
| 5. |
60111723
|
[1] |
Clamp
|
|
| 6. |
994434
|
[2] |
Hexagon screw
|
|
| 7. |
990978
|
[2] |
Lock nut
|
|
| 8. |
1547253
|
[2] |
Sealing ring
|
|
| 9. |
984734
|
[2] |
Flange screw
|
|
| 10. |
925073
|
[1] |
O-ring
|
|
| 11. |
984735
|
[4] |
Flange screw
|
|
| 12. |
22776974
|
[1] |
Coolant pipe
|
|
| 13. |
864491
|
[1] |
Gasket
|
|
| 14. |
22201409
|
[1] |
Hose
|
|
| 15. |
961672
|
[4] |
Hose clamp
|
|
| 16. |
961673
|
[4] |
Hose clamp
|
|
| 17. |
22902770
|
[1] |
Hose
|
|
| 18. |
22711342
|
[1] |
Coolant pipe
|
|
| 19. |
984734
|
[2] |
Flange screw
|
|
