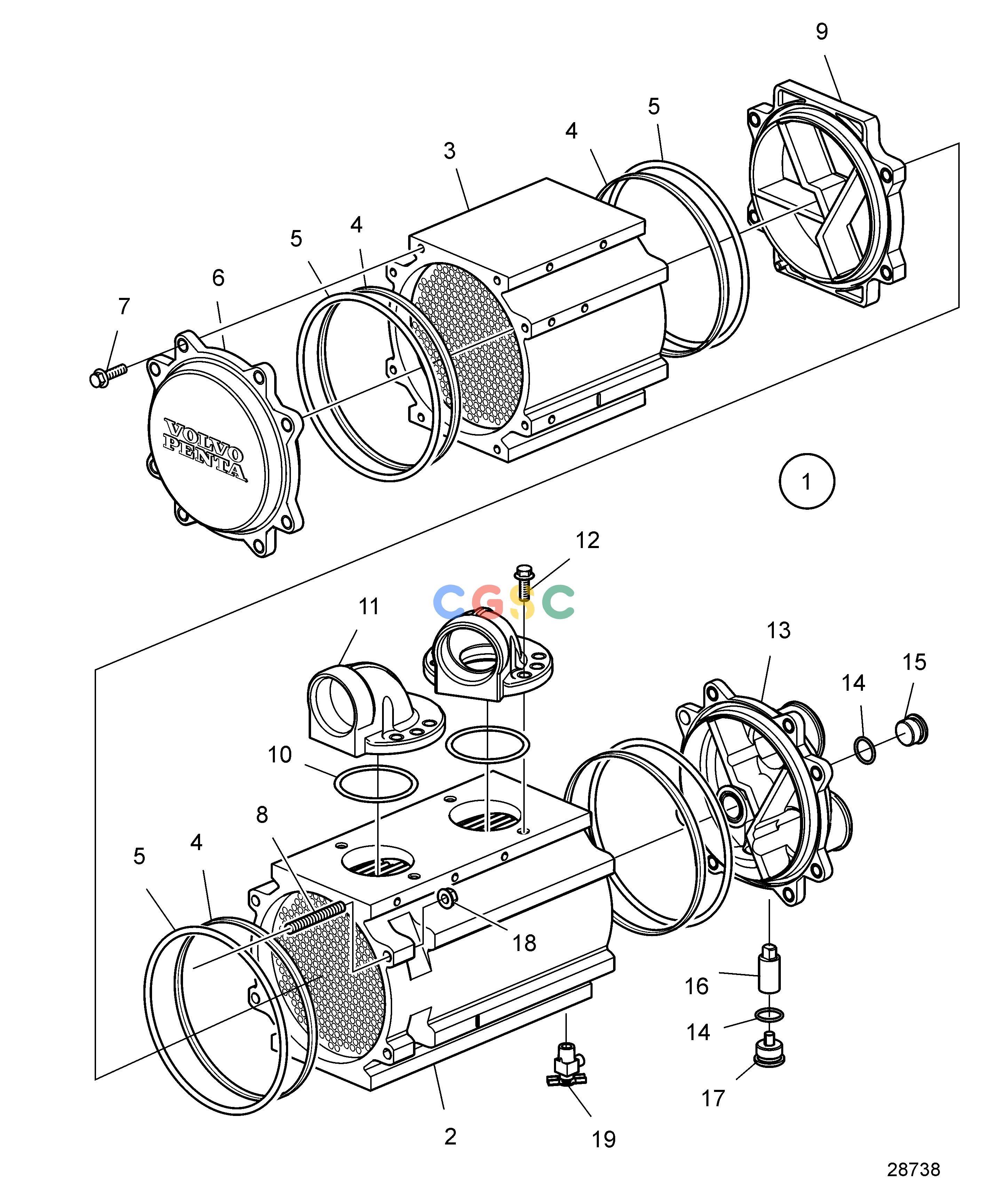

沃尔沃零件查询D8A1-A MP; D8A2-A MPCooling SystemHeat Exchanger / Oil cooler, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
811 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22497537
|
[1] |
Heat exchanger
|
|
| 2. |
22028520
|
[1] |
Heat exchanger
|
|
| 3. |
22028516
|
[1] |
Oil cooler
|
|
| 4. |
22066567
|
[4] |
Rubber moulding
|
|
| 5. |
22028518
|
[4] |
O-ring
|
|
| 6. |
22011233
|
[1] |
Cover
|
|
| 7. |
991606
|
[16] |
Flange screw
|
|
| 8. |
981307
|
[4] |
Stud
|
|
| 9. |
22011236
|
[1] |
Spacer
|
|
| 10. |
22066568
|
[2] |
O-ring
|
|
| 11. |
22011235
|
[2] |
Adapter
|
|
| 12. |
982285
|
[4] |
Flange screw
|
|
| 13. |
22011234
|
[1] |
Cover
|
|
| 14. |
22695676
|
[2] |
O-ring
|
|
| 15. |
22124434
|
[1] |
Plug
|
|
| 16. |
838929
|
[1] |
Anode
|
|
| 17. |
22011417
|
[1] |
Plug
|
|
| 18. |
969391
|
[4] |
Flange nut
|
|
| 19. |
22011237
|
[1] |
Drain cock
|
|
