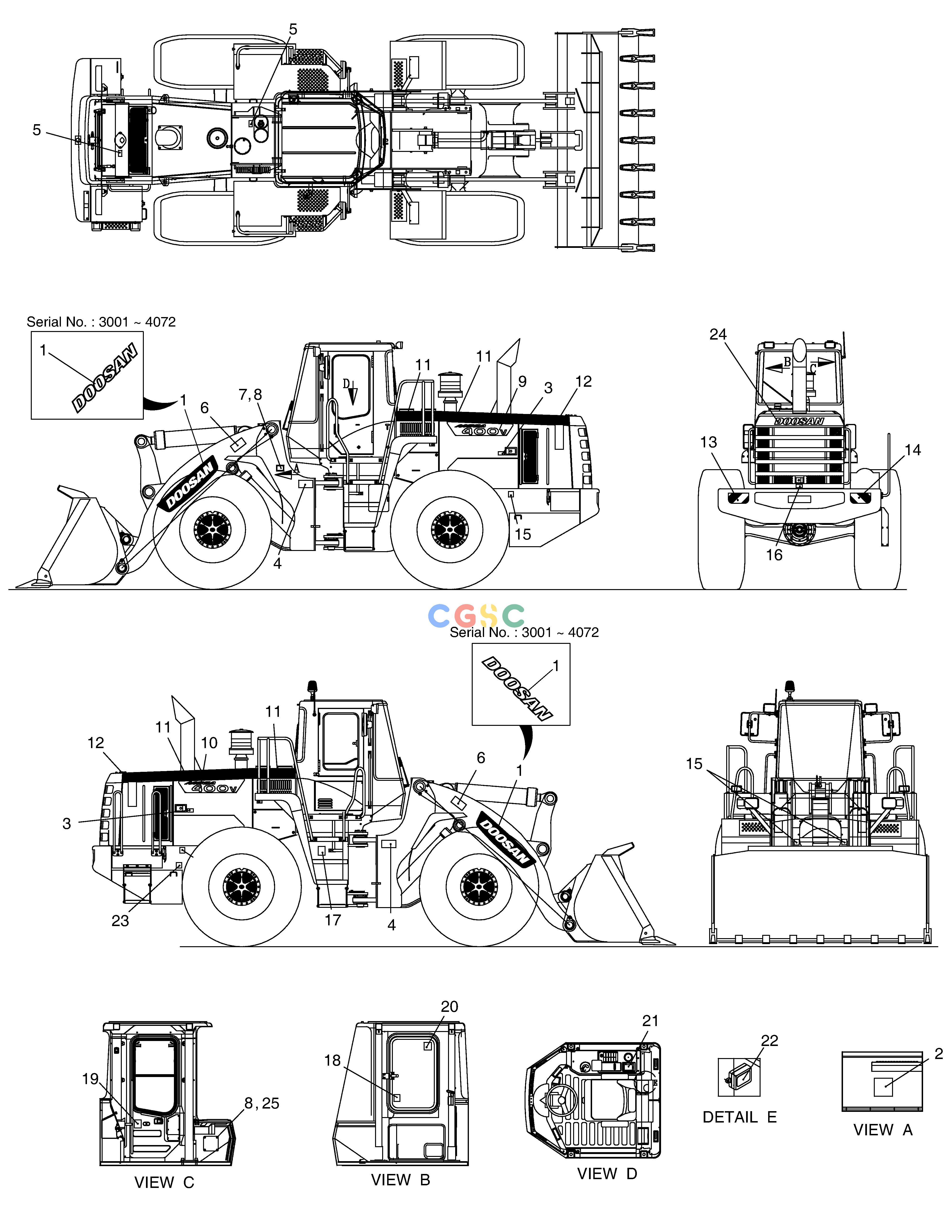

斗山零件查询DECAL - ROPS & FOPS MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
1002 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
950205-00784
|
[-] |
|
|
| 1. |
K1011645D2
|
[2] |
PLATE;NAME
|
950205-00662
|
| 1. |
950205-00662
|
[2] |
|
|
| 10. |
190-01259
|
[1] |
PLATE;NAME
|
|
| 11. |
190-00606
|
[2] |
PLATE;NAME
|
|
| 12. |
190-01260
|
[2] |
PLATE;NAME
|
|
| 13. |
2190-3528
|
[1] |
PLATE;NAME(SWING AREA)
|
|
| 14. |
2190-3530
|
[1] |
PLATE;NAME
|
|
| 15. |
K1042074A
|
[4] |
PLATE;NAME
|
|
| 16. |
190-00557
|
[1] |
PLATE;NAME
|
|
| 17. |
950209-00667
|
[1] |
|
|
| 18. |
4190-2482A
|
[1] |
PLATE;NAME(LEVER DIRECT.)
|
|
| 19. |
950205-00650
|
[1] |
|
|
| 2. |
190-01264
|
[1] |
PLATE;NAME
|
|
| 20. |
2190-2559
|
[1] |
PLATE;NAME
|
|
| 21. |
950205-00655
|
[1] |
|
|
| 22. |
950205-00656
|
[1] |
|
|
| 23. |
K1016409
|
[1] |
PLATE;NAME (FUEL)
|
|
| 24. |
K1011743D2
|
[1] |
PLATE;NAME(DOOSAN)
|
|
| 25. |
950209-00702
|
[1] |
|
|
| 3. |
190-00095
|
[2] |
PLATE;NAME
|
|
| 4. |
190-00120
|
[2] |
PLATE;NAME(CAUTION;TURN)
|
|
| 5. |
190-00097
|
[2] |
NAME PLATE
|
|
| 6. |
190-00105
|
[2] |
PLATE;NAME(DANGER)
|
|
| 7. |
950209-00695
|
[1] |
|
|
| 8. |
2122-1002D2
|
[8] |
RIVET
|
|
| 9. |
190-01258
|
[1] |
PLATE;NAME
|
|
