斗山零件查询SPARE PARTS MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
161 次

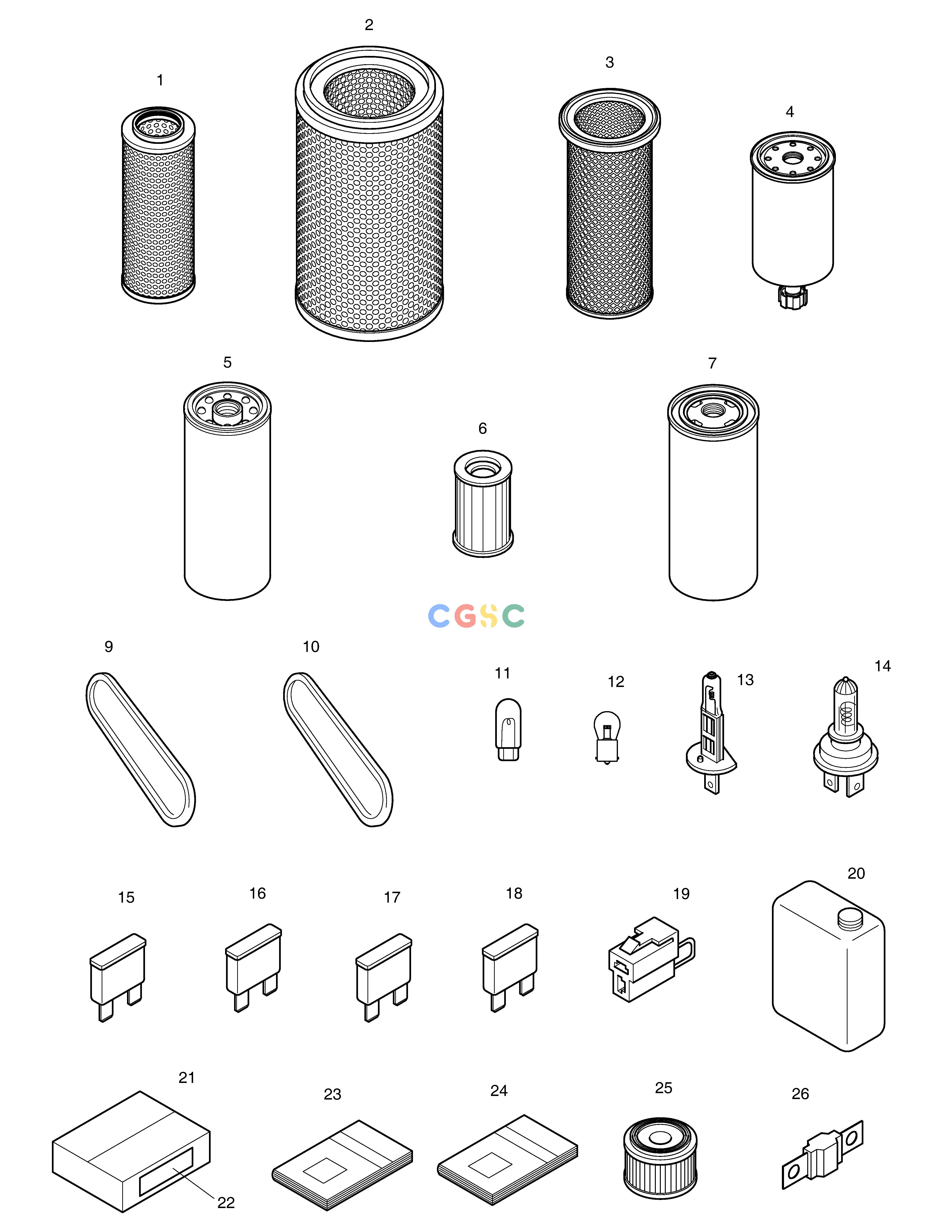

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
918-00269
|
[-] |
SPARE PARTS
|
|
| -. |
101594-00185
|
[-] |
|
|
| 1. |
2471-9051B
|
[1] |
ELEMENT;FILTER
|
|
| 10. |
2106-1019D20
|
[1] |
V-BELT 4PK 1540L
|
|
| 11. |
S862203H
|
[1] |
BULB 24V 3W
|
|
| 12. |
S864221H
|
[1] |
BULB 24V 21W
|
|
| 13. |
2515-1016D4
|
[1] |
. BULB,HALOGEN
|
|
| 14. |
2515-1022D1
|
[1] |
BULB;HALOGEN
|
|
| 15. |
2527-1016
|
[1] |
FUSE,BLADE 10A
|
|
| 16. |
2527-1017
|
[2] |
FUSE,BLADE 15A
|
|
| 17. |
2527-1018
|
[1] |
FUSE,BLADE 20A
|
|
| 18. |
2527-1025
|
[1] |
FUSE,BLADE 30A
|
|
| 19. |
2527-1023A
|
[1] |
LINK,FUSIBLE
|
|
| 2. |
474-00006
|
[1] |
ELEMENT;OUTER
|
|
| 20. |
910-00019
|
[6] |
OIL;ENGINE
|
|
| 21. |
2512-1095D1
|
[1] |
BOX;SPARE PARTS
|
|
| 22. |
190-01300
|
[1] |
PLATE;NAME
|
|
| 23. |
950106-00064
|
[1] |
|
|
| 24. |
950106-00065
|
[1] |
|
|
| 25. |
K1029257
|
[1] |
ELEMENT;AIR BREATHER
|
|
| 26. |
300803-00086
|
[1] |
|
|
| 3. |
474-00007
|
[1] |
ELEMENT;INNER
|
|
| 4. |
65.12503-5016B
|
[1] |
. ELEMENT;E/G FUEL FILTER
|
|
| 5. |
65.05510-5027A
|
[1] |
|
|
| 6. |
2474-9063
|
[1] |
ELEMENT;FILTER
|
|
| 7. |
474-00021
|
[2] |
FILTER;TRANSMISSION
|
|
| 9. |
2106-1019D22
|
[1] |
V-BELT(FAN) 1400L
|
|
