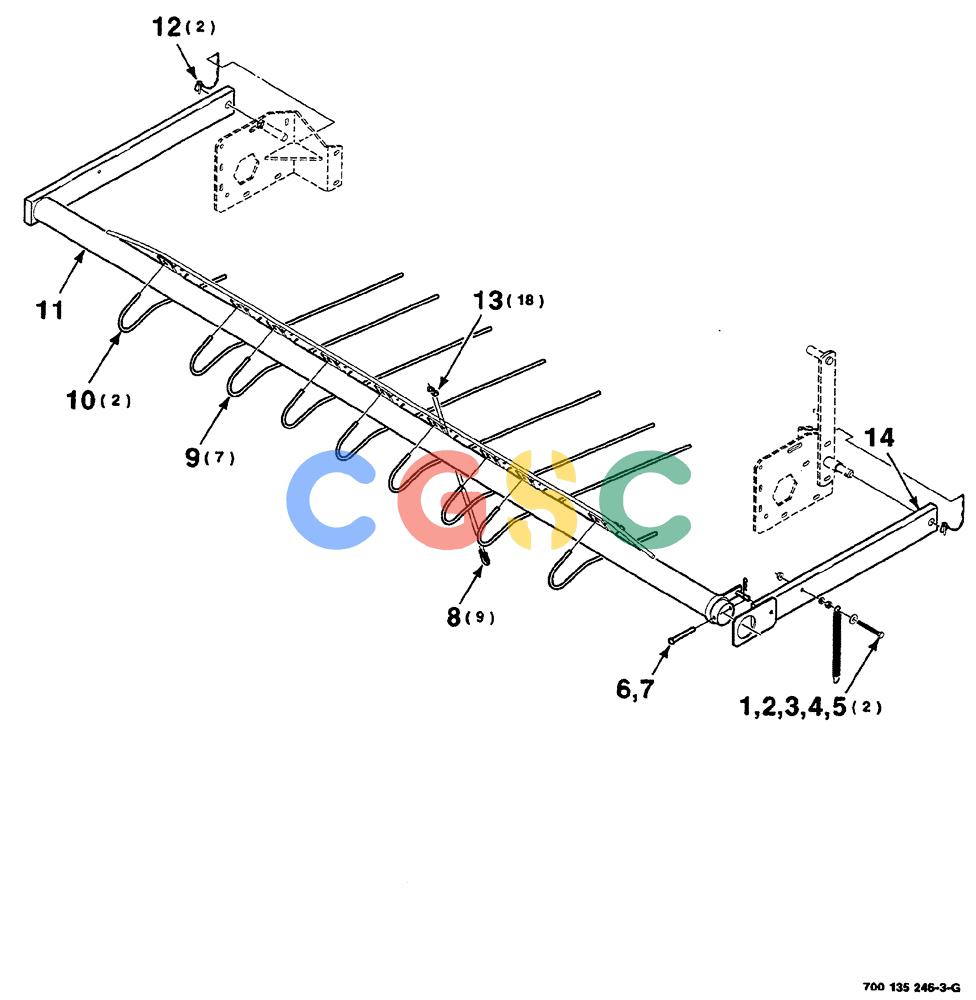

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (3-002) - WINDGUARD AND MOUNTING ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
476 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
113-210
|
[2] |
BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd
|
CAS
|
| 2. |
496-81010
|
[2] |
WASHER
|
CAS
3/8", hardened, wide, plain Superseded by part number: 86625244
|
| 3. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 4. |
492-11038
|
[2] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 5. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 6. |
603632R1
|
[1] |
HEADED PIN,9.53mm OD x 76.2mm L
|
IH
clevis 3/8" x 3"
|
| 7. |
S120261
|
[1] |
PIN
|
CAS
.148 wire hair, cotter
|
| 8. |
700707707
|
[9] |
BOLT,U, 5/16" - 18 x 1.181"
|
CAS
5/16"-18, U
|
| 9. |
700717230
|
[7] |
ROD
|
CAS
inner, windguard, Hooked
|
| 9. |
700726705
|
[7] |
ROD
|
HFI
inner, windguard, Non-Hooked
|
| 10. |
700717255
|
[2] |
ROD
|
CAS
outer, windguard, Hooked
|
| 10. |
700726704
|
[2] |
ROD
|
HFI
outer, windguard, Non-Hooked
|
| 11. |
700135768
|
[1] |
GUARD
|
HFI
wind, WA, Hooked
|
| 11. |
700153754
|
[1] |
GUARD ASSY.
|
HFI
wind, WA, Non-Hooked
|
| 12. |
762260
|
[2] |
PIN
|
CAS
klik Superseded by part number: 87106279
|
| 13. |
231-5145
|
[18] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 14. |
700150924
|
[1] |
SUPPORT
|
HFI
WA
|
