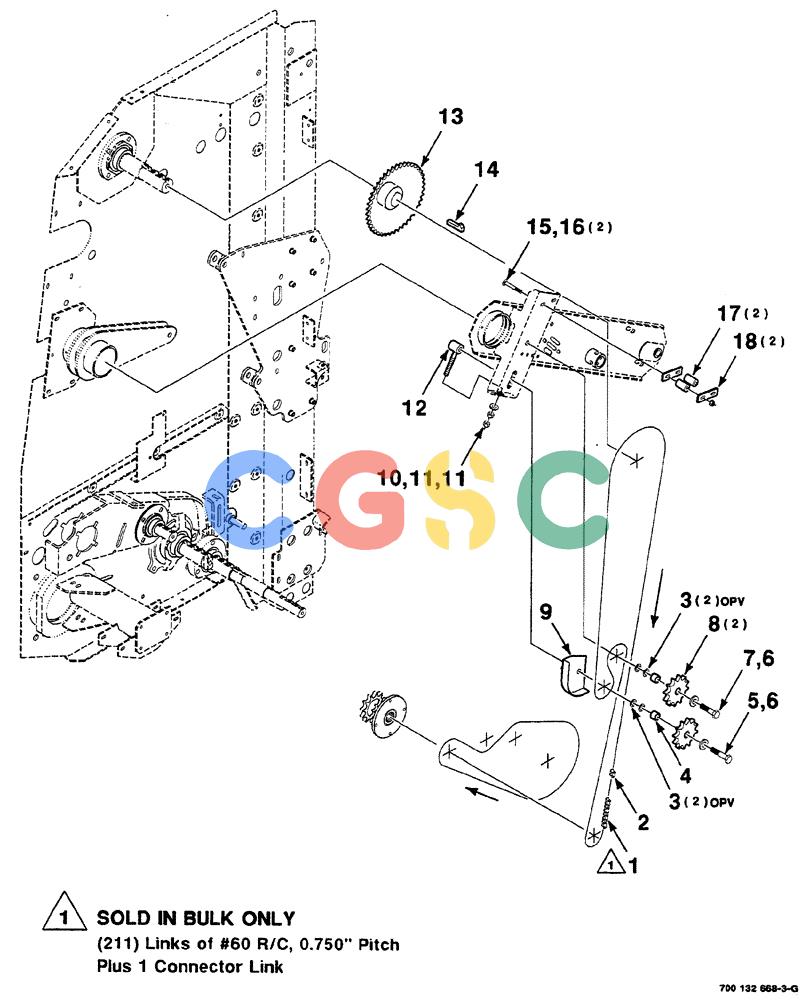

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (2-032) - ROLLER DRIVE ASSEMBLY, UPPER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
175 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
241-1316
|
[1] |
LINK,19.05mm Pitch
|
CAS
CHAIN roller, #60
|
| 3. |
52233
|
[4] |
BUSHING
|
CAS
GAUGE 5/8" x 14, narrow rim machinery Superseded by part number: 51200381
|
| 4. |
700110610
|
[1] |
SPACER
|
CAS
|
| 5. |
413-1048
|
[1] |
BOLT,Hex, 5/8" - 11 x 3", Gr 5
|
CAS
Superseded by part number: 87338
|
| 6. |
396-21066
|
[2] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
5/8" bolt size Superseded by part number: 87613283
|
| 7. |
413-1040
|
[1] |
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 280233
|
| 8. |
541857R92
|
[2] |
SPROCKET,15T
|
IH
IDLER 60P15T
|
| 9. |
700153712
|
[1] |
GUIDE
|
HFI
WA
|
| 10. |
705541
|
[1] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2", hardened, plain
|
| 11. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 12. |
700135548
|
[1] |
SPECIAL BOLT
|
HFI
DRAW WA
|
| 13. |
700153688
|
[1] |
SPROCKET ASSY.
|
HFI
WA, 60B48
|
| 14. |
861088
|
[1] |
BUCKET TOOTH KEY
|
IH
1/2" x 2", Gib
|
| 15. |
433-648
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5
|
CAS
3/8"-16 x 3", round head square neck bolt Superseded by part number: 280806
|
| 16. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8"-16, hex. flange top lock, R/G Superseded by part number: 86521609
|
| 17. |
700716908
|
[2] |
GUIDE
|
CAS
chain
|
| 18. |
700716907
|
[2] |
PLATE
|
CAS
guide
|
