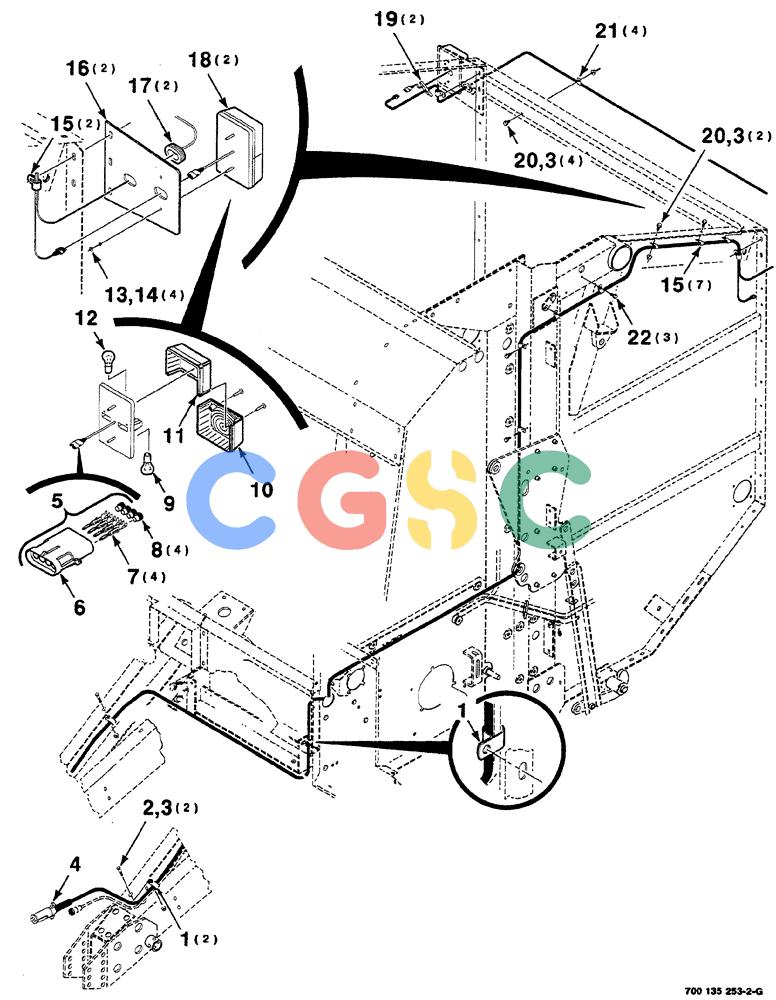

| 1. |
515-23190
|
[3] |
CLAMP,3/4", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86624005
|
| 2. |
413-628
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 72187210, 9706689
|
| 3. |
232-5316
|
[8] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8"-16, hex. flange top lock, GR/G Superseded by part number: 86521609
|
| 4. |
700718047
|
[1] |
HARNESS
|
CAS
tail light
|
| 5. |
700709354
|
[1] |
REPAIR KIT
|
IH
KIT repair, harness, includes: REF. 6, 7 & 8 Superseded by part number: 87692802, 84286327, 225120C1
|
| 6. |
700708964
|
[1] |
WIRE CONNECTOR
|
CAS
shroud, 4 pin, male Superseded by part number: 87692802
|
| 7. |
700706401
|
[4] |
TERMINAL
|
CAS
PIN male, 18-20 gauge Superseded by part number: 225120C1
|
| 8. |
700706400
|
[4] |
PLUG
|
IH
18-20 gauge Superseded by part number: 84286327
|
| 9. |
700717381
|
[1] |
BULB
|
CAS
E 12V
|
| 10. |
700717386
|
[1] |
LENS
|
CAS
red
|
| 11. |
700717417
|
[1] |
LENS
|
CAS
amber
|
| 12. |
700717385
|
[1] |
BULB
|
CAS
12V
|
| 13. |
492-11010
|
[4] |
LOCK WASHER,#10
|
CAS
Superseded by part number: 80684
|
| 14. |
825-1405
|
[4] |
NUT,M5, Cl 8
|
CAS
Superseded by part number: 10788811
|
| 15. |
515-25127
|
[9] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Superseded by part number: 86632595
|
| 16. |
700135935
|
[2] |
SUPPORT
|
HFI
BRACKET light
|
| 17. |
700707095
|
[2] |
GROMMET
|
CAS
|
| 18. |
700716461
|
[2] |
TAIL LAMP
|
CAS
combination
|
| 19. |
L18337
|
[2] |
CABLE TIE,9.95"-12.1" lg
|
CAS
CABLE STRAP TIE Superseded by part number: 529070
|
| 20. |
409-7612
|
[6] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 21. |
515-2395
|
[4] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86572009
|
| 22. |
281-34912
|
[3] |
SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8"-16 x 3/4", hex. washer head thread cutting tapping
|
