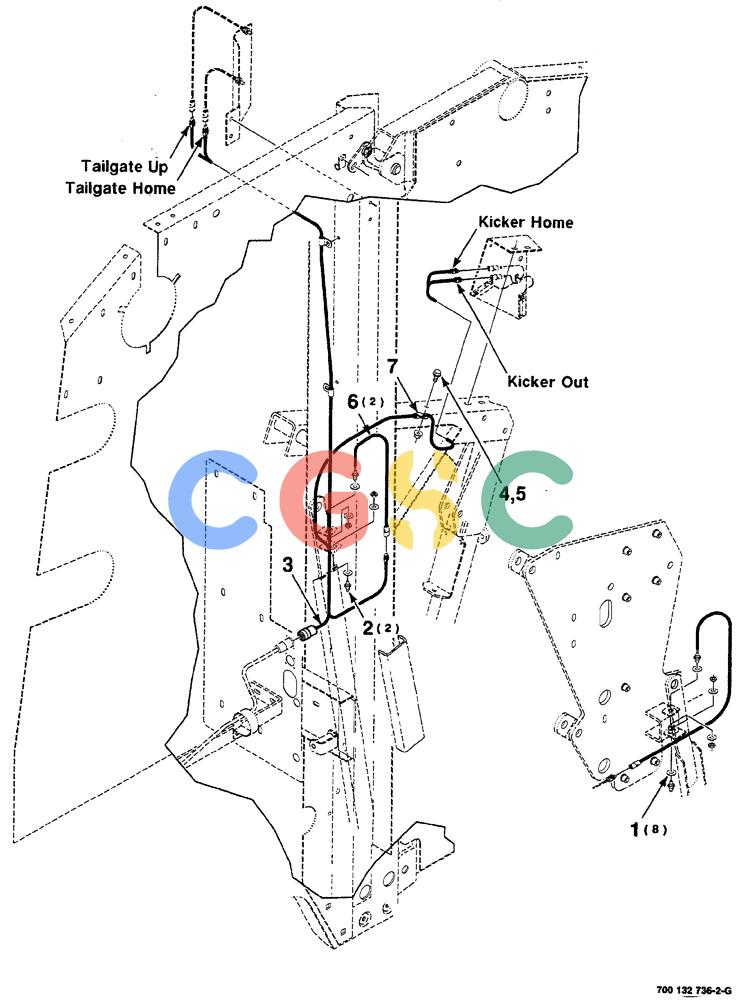

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (4-012) - ELECTRICAL ASSEMBLY, KICKER CONTROL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
466 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700710190
|
[8] |
WASHER
|
CAS
stainless steel
|
| 2. |
700710211
|
[2] |
ACTUATOR
|
IH
ACTUATOR
|
| 3. |
700718827
|
[1] |
HARNESS
|
HFI
wire, kicker
|
| 4. |
409-7612
|
[1] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 5. |
232-5316
|
[1] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8"-16, hex. flange top lock, GR/G Superseded by part number: 86521609
|
| 6. |
700119161
|
[2] |
SWITCH
|
L
SENSOR "A"
|
| 7. |
515-2395
|
[1] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
Line Superseded by part number: 86572009
|
