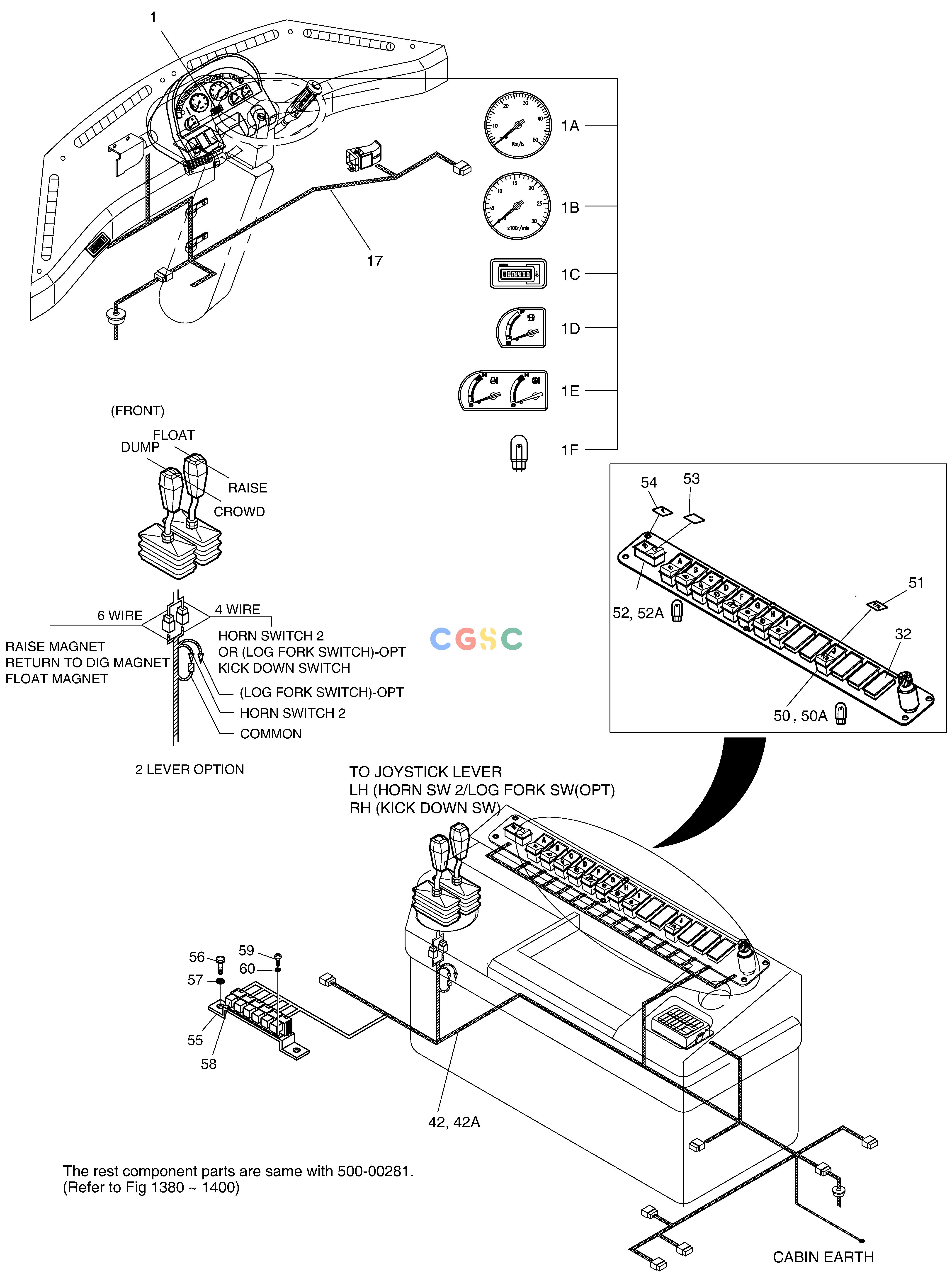

斗山零件查询ELECTRIC PARTS - 2LEVER FNR MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
151 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00283A
|
[-] |
ELECTRIC PARTS
|
|
| 1. |
539-00070
|
[1] |
PANEL;GAUGE
|
|
| 17. |
530-00438
|
[1] |
HARNESS;GAUGE BOX
|
|
| 1A. |
528-00022
|
[1] |
METER;SPEED
|
|
| 1B. |
528-00023B
|
[1] |
METER;TACHO
|
|
| 1C. |
2528-9040
|
[1] |
METER;HOUR
|
|
| 1D. |
4528-6064
|
[1] |
GAUGE;FUEL
|
|
| 1E. |
528-00011
|
[1] |
GAUGE;W/T & OIL TEMP
|
|
| 1F. |
S862203H
|
[16] |
BULB 24V 3W
|
|
| 32. |
2621-9002
|
[5] |
COVER
|
|
| 42. |
530-00461A
|
[1] |
HARNESS;SWITCH BOX
|
|
| 42A. |
2548-1026
|
[14] |
DIODE
|
|
| 50. |
549-00109
|
[1] |
SWITCH;FNR SELECT
|
|
| 50A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 51. |
2190-2584D23
|
[1] |
INSERT;FNR SELECT
|
|
| 52. |
549-00083
|
[1] |
SWITCH;ROCKER
|
|
| 52A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 53. |
2190-2584D24
|
[1] |
INSERT;REVERSE
|
|
| 54. |
190-01184
|
[1] |
PLATE;NAME
|
|
| 55. |
195-02762A
|
[1] |
BRACKET;RELAY
|
|
| 56. |
S0508653
|
[2] |
BOLT
|
|
| 57. |
S5102503
|
[2] |
. WASHER
|
|
| 58. |
2544-9033
|
[6] |
RELAY
|
|
| 59. |
S3450823
|
[2] |
SCREW
|
|
| 60. |
S5100203
|
[2] |
WASHER
|
|
