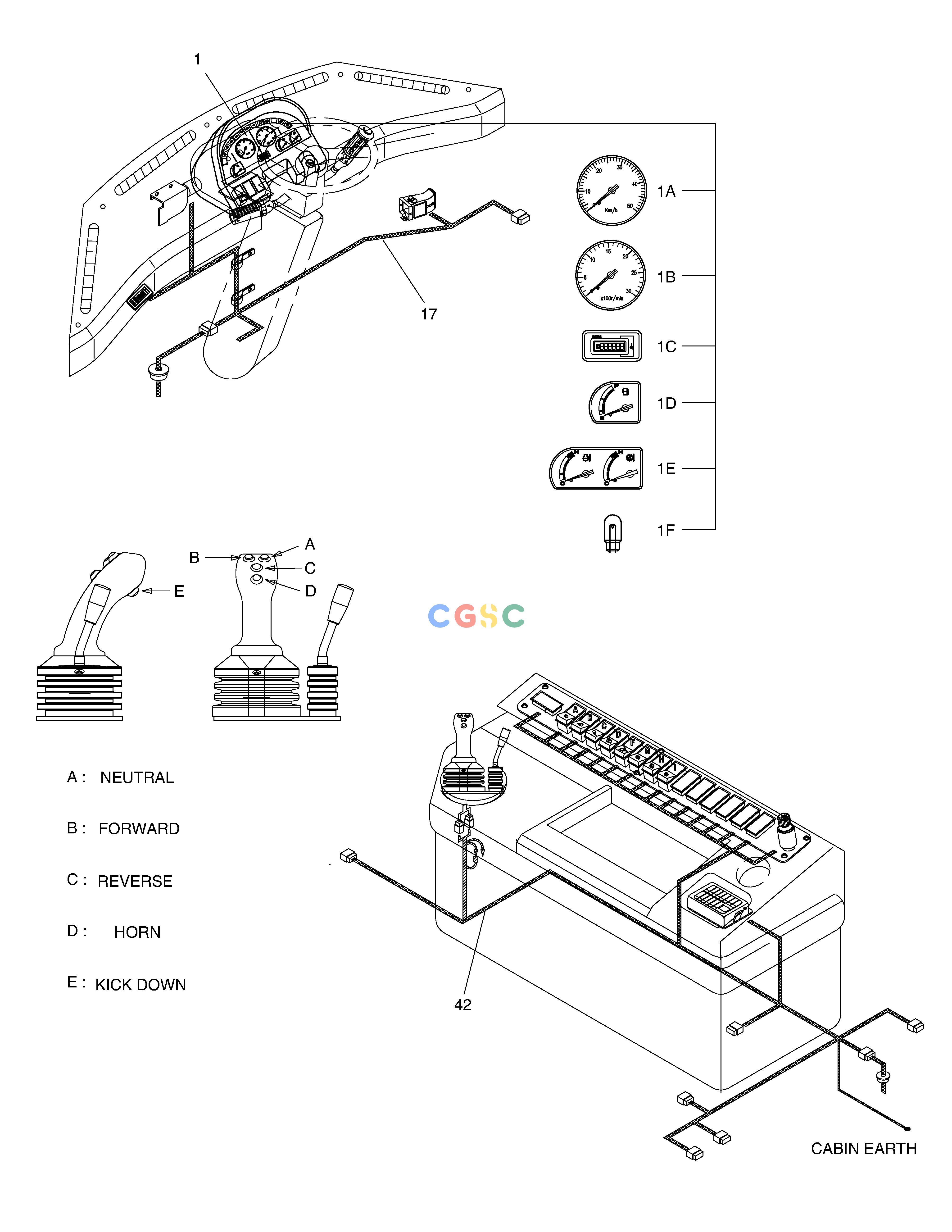

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 500-00282B | [-] | ELECTRIC PARTS | |
| 1. | 539-00070 | [1] | PANEL;GAUGE | |
| 17. | 530-00391A | [1] | HARNESS;GAUGE BOX | |
| 1A. | 528-00022 | [1] | METER;SPEED | |
| 1B. | 528-00023B | [1] | METER;TACHO | |
| 1C. | 2528-9040 | [1] | METER;HOUR | |
| 1D. | 4528-6064 | [1] | GAUGE;FUEL | |
| 1E. | 528-00011 | [1] | GAUGE;W/T & OIL TEMP | |
| 1F. | S862203H | [16] | BULB 24V 3W | |
| 42. | 530-00460A | [1] | HARNESS;SWITCH BOX |
