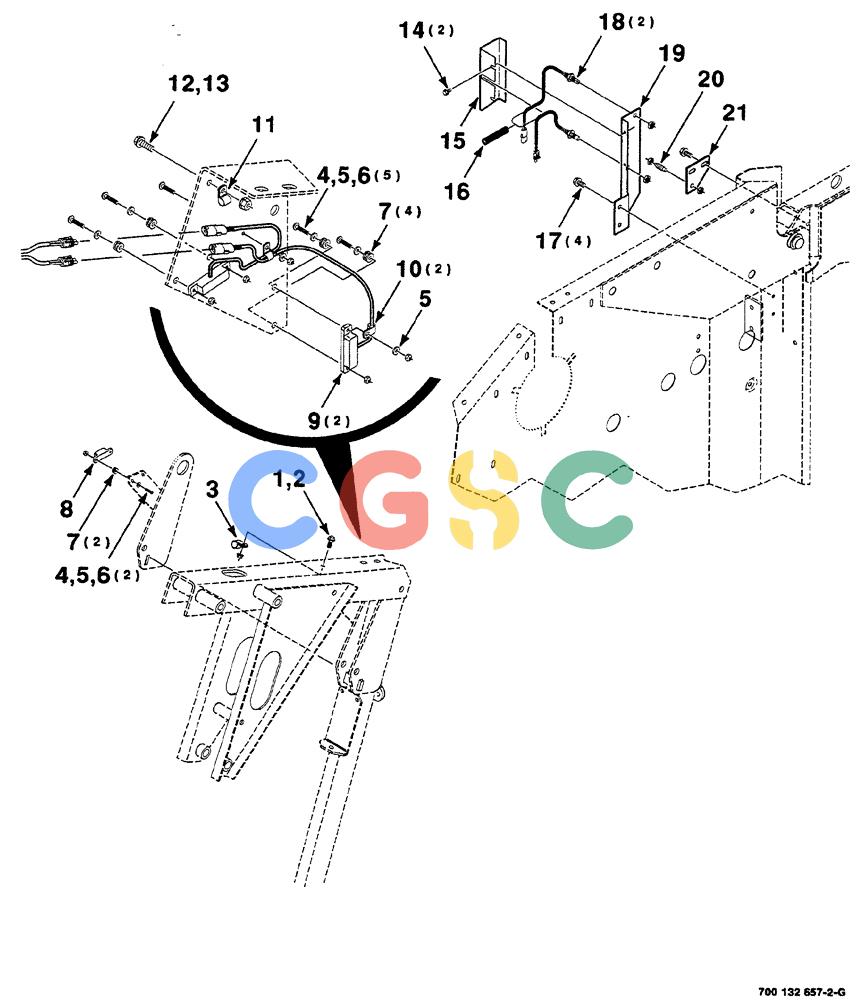

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (4-014) - ELECTRICAL ASSEMBLY, KICKER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
218 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
409-7612
|
[1] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 2. |
232-5316
|
[1] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8"-16, hex. flange top lock, GR/G Superseded by part number: 86521609
|
| 3. |
515-23190
|
[1] |
CLAMP,3/4", Insul, 3/8" Bolt
|
CAS
Line Superseded by part number: 86624005
|
| 4. |
700710188
|
[7] |
SCREW
|
CAS
#6-32 x 3/4", cross recess pan head machine, stainless
|
| 5. |
700710187
|
[8] |
WASHER
|
CAS
#6 WPW, stainless
|
| 6. |
700710189
|
[7] |
LOCK NUT
|
CAS
#6-32, light hex. stop, stainless
|
| 7. |
700710199
|
[6] |
GROMMET
|
CAS
|
| 8. |
700709996
|
[1] |
SWITCH
|
IH
actuator
|
| 9. |
700710208
|
[2] |
ROTARY SWITCH
|
L
N.O.
|
| 10. |
515-2179
|
[2] |
CLAMP,5/16", Insul, 1/4" Bolt
|
CAS
Line Superseded by part number: 237910
|
| 11. |
515-25127
|
[1] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Superseded by part number: 86632595
|
| 12. |
7883275
|
[1] |
SCREW,Hex Washer, 1/4" - 20 x 3/4"
|
CAS
1/4"-20 x 3/4", hex. washer head machine
|
| 13. |
1703354
|
[1] |
NUT
|
IH
1/4"-20, hex. flange top lock, GR/G
|
| 14. |
121-3
|
[2] |
SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
|
CAS
|
| 15. |
700150915
|
[1] |
SHIELD
|
HFI
|
| 16. |
702400102
|
[1] |
CONDUIT
|
CAS
split
|
| 17. |
281-34912
|
[4] |
SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8"-16 x 3/4", hex. washer head thread cutting tapping
|
| 18. |
700119161
|
[2] |
SWITCH
|
L
ASSY. NO
|
| 19. |
700150916
|
[1] |
MOUNTING PARTS
|
HFI
switch
|
| 20. |
700710211
|
[1] |
ACTUATOR
|
IH
ACTUATOR
|
| 21. |
700135943
|
[1] |
MOUNTING PARTS
|
HFI
actuator
|
