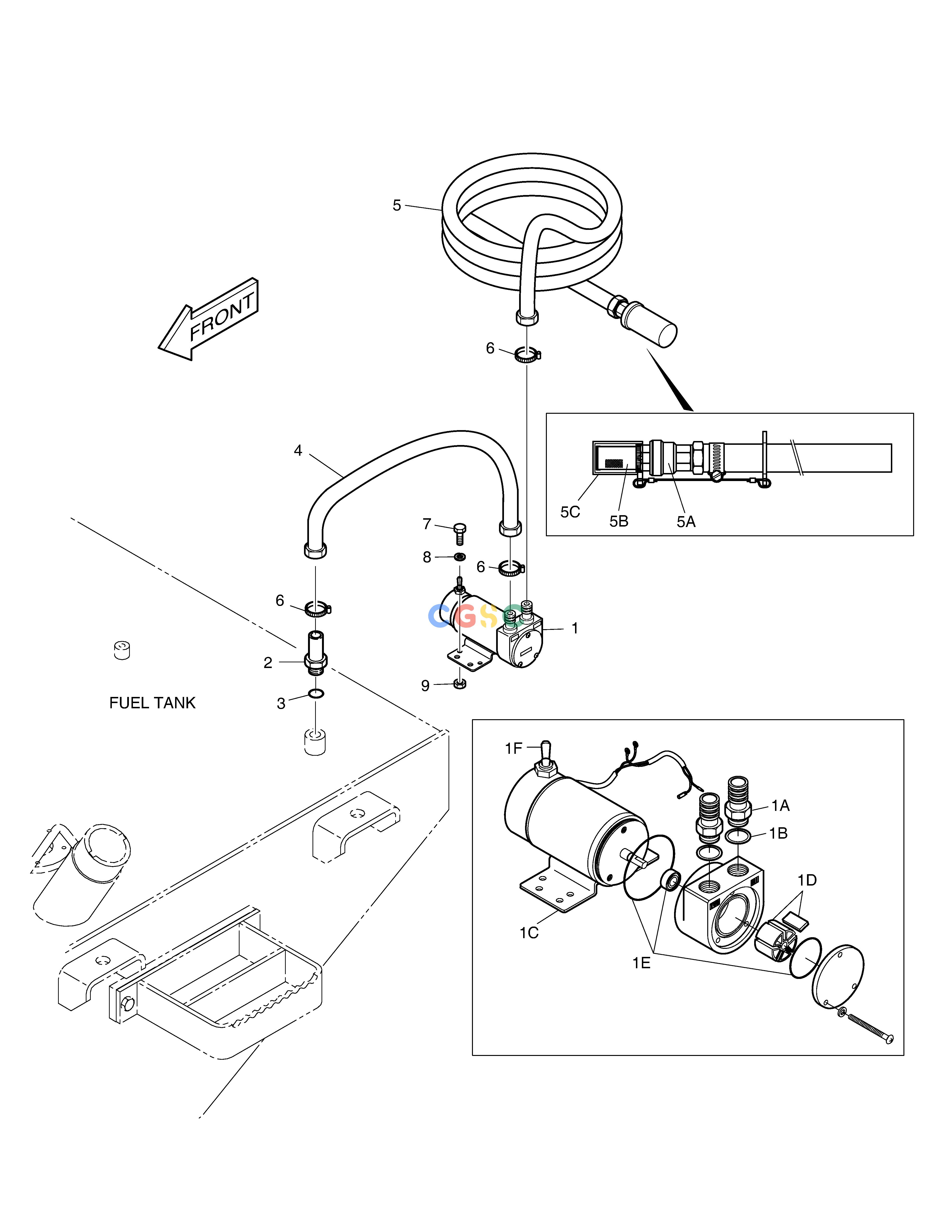

斗山零件查询FUEL FILLER PUMP MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
621 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00123
|
[-] |
FUEL FILLER PUMP ASS'Y
|
|
| 1. |
2401-1277A
|
[1] |
PUMP;FUEL
|
|
| 1A. |
2181-2755B
|
[2] |
. ADAPTER
|
|
| 1B. |
S8180321
|
[2] |
. RING,SEAL
|
|
| 1C. |
523-00002
|
[1] |
MOTOR
|
|
| 1D. |
407-00001
|
[1] |
. VANE KIT
|
|
| 1E. |
2401-1276KT
|
[1] |
. SEAL KIT
|
|
| 1F. |
2549-9096
|
[1] |
SWITCH;TOGGLE
|
|
| 2. |
2181-2104D6
|
[1] |
ADAPTER
|
|
| 3. |
S8000181
|
[1] |
O-RING
|
|
| 4. |
185-00195D11
|
[1] |
HOSE 700L
|
|
| 5. |
185-00167D4
|
[1] |
HOSE ASS'Y 2000L
|
|
| 5A. |
2420-1258
|
[1] |
. VALVE,CHECK
|
|
| 5B. |
2471-1152
|
[1] |
. STRAINER
|
|
| 5C. |
2160-1336
|
[1] |
. CAP,STRAINER
|
|
| 6. |
S8450016
|
[3] |
. CLAMP
|
|
| 7. |
S0504653
|
[4] |
. BOLT
|
|
| 8. |
S5102303
|
[4] |
. WASHER
|
|
| 9. |
S4012333
|
[4] |
NUT
|
|
