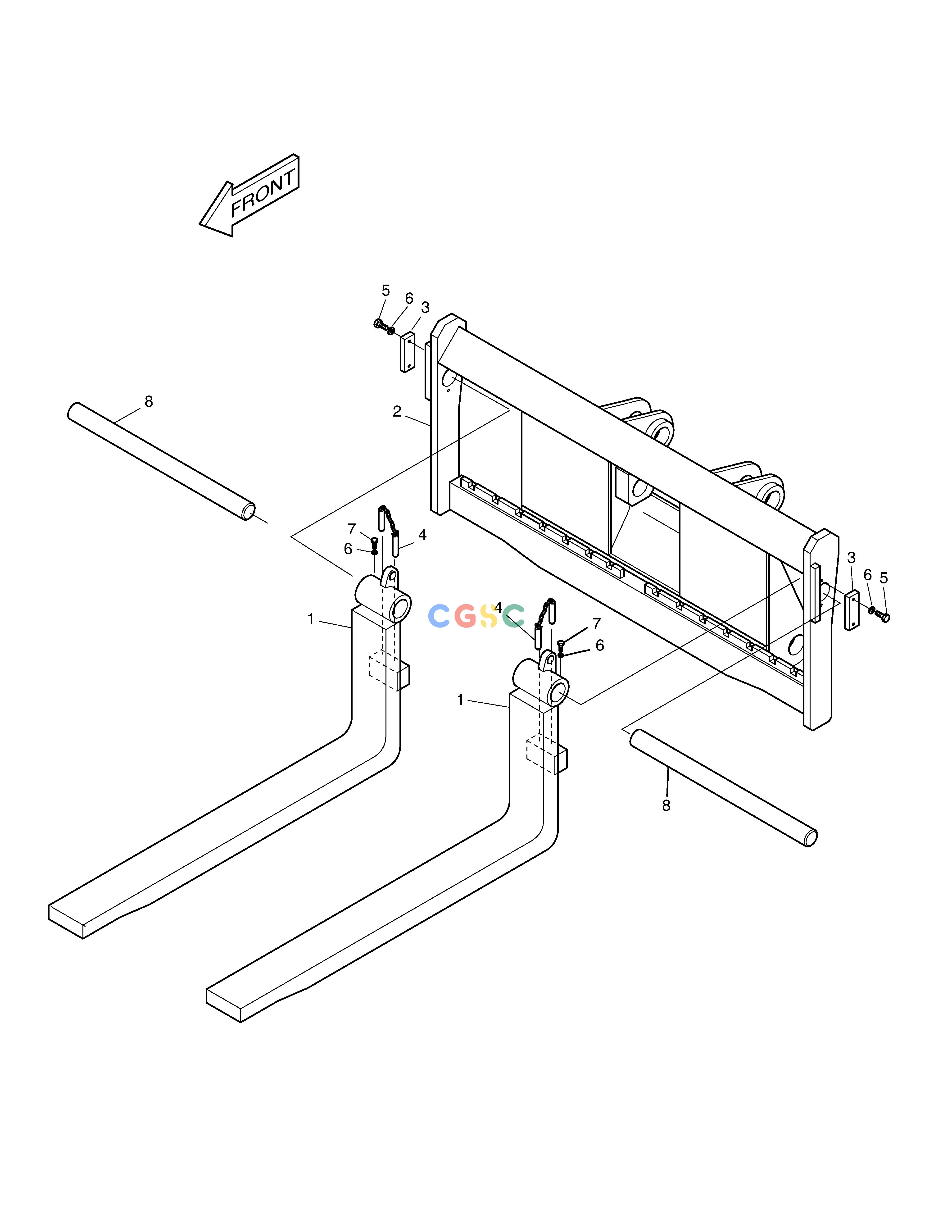

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 732-00004 | [-] | PALLET FORK ASS'Y | |
| 1. | 4732-1013 | [2] | FORK 85X200X1800mm | |
| 2. | 195-01745 | [1] | SUPPORT | |
| 3. | 4621-3510 | [2] | PLATE | |
| 4. | 4123-2180 | [2] | PIN ASS'Y | |
| 5. | S0515563 | [4] | BOLT M12X1.75X45 | |
| 6. | S5102703 | [6] | WASHER | |
| 7. | S0515263 | [2] | BOLT;HEX | |
| 8. | 4112-1233 | [2] | SHAFT |
